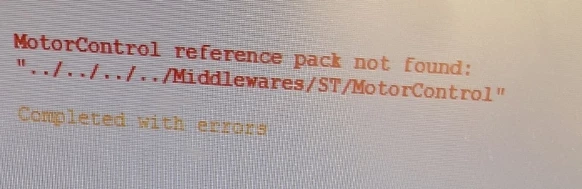

MCSDK5.4.8 motorcontrol reference pack not found

[walen]

系統 ： Windeows 10 22H2

應用 ： MCSDK5.4.8 CubeMax6.13

目標工具鏈 ： ST32CubeIDE

固件包版本 ： STM32 FW v1.11.3

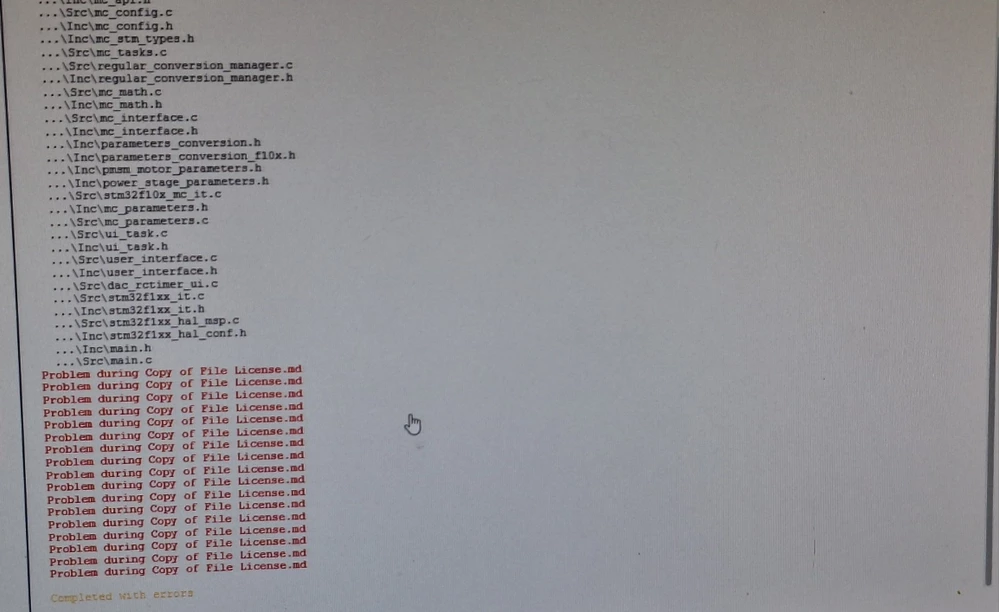

為什麼在從未修改的範例專案生成代碼時會收到此錯誤？

[GMA]

Hello @walen,

Firstly, as mentioned in st community terms and conditions, the language of the Community is English.

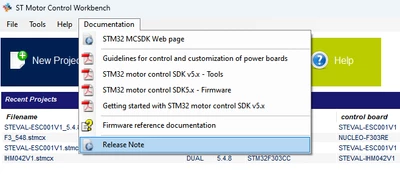

Refer to MC Workbench Release note documentation:

On "V5.4.8 / 30-Nov-2021" chapter, it is mentioned CubeMx version to be used "v6.4.0" and firmware packages versions for each STM32 series.

[walen]

Hi Dear All,

Based on the suggestions, what is the meaning and reason for the following situation?

Thank you for the response. Previously used community-specific language. Still learning...

APP： CubeMax6.4 , STM32 FW v1.8.4



[GMA]

Hello @walen;

As the generation has gone up to the main.c file, can you continue with the generated project?

[walen]

Hi GMA,

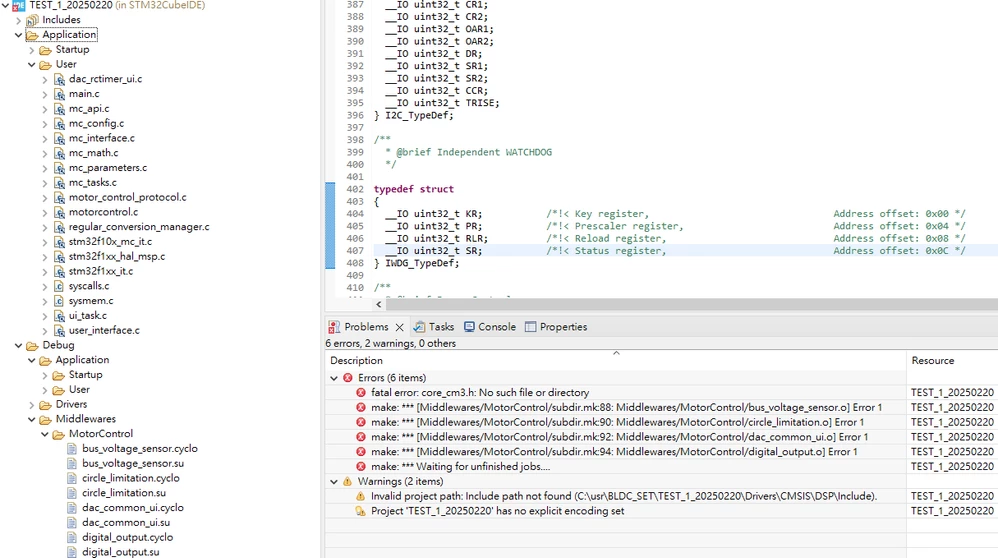

Yes, the main.c is shown in the project, but as depicted, the compilation failed.now?





[walen]

Hi GMA,

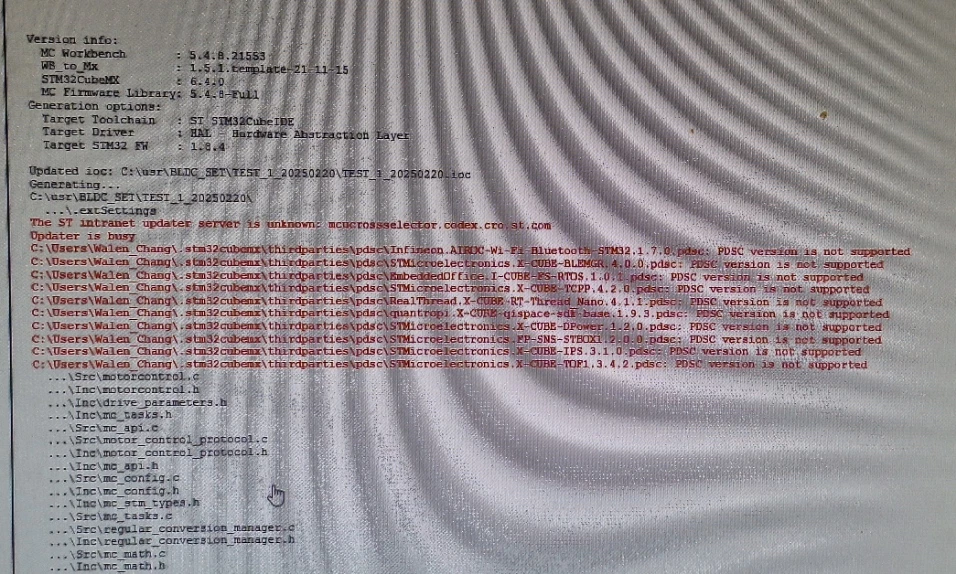

Can the red PDSC file affect the project?

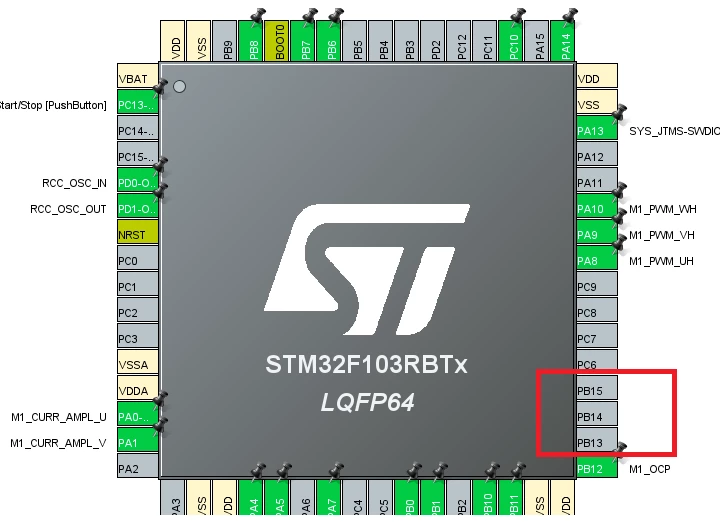

Because the pins generated by MAX do not include my options.

I our future interactions with great interest.

Thank you
Walen



[GMA]

Hello @walen,

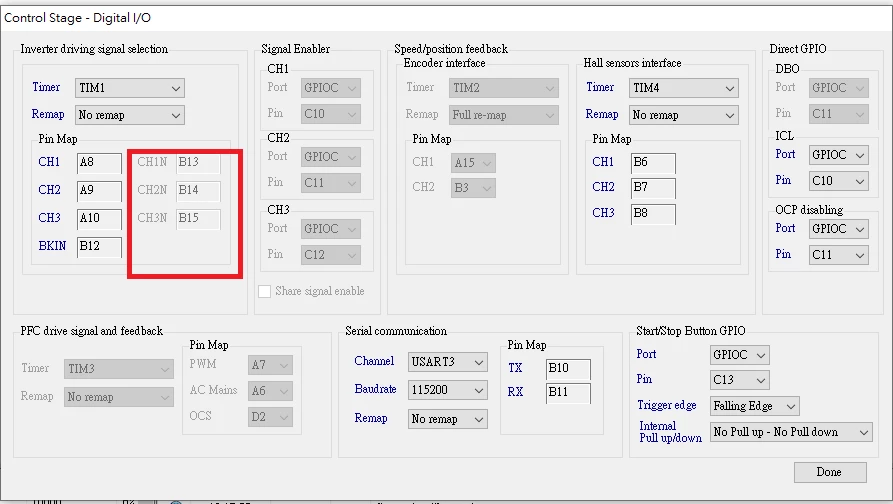

B13/B14/B15 are shown in gray on "Control Stage" window, so they are not used.

[walen]

hey guys,

Someone has asked a question regarding issue 5.4.85, but I haven't seen an answer. Could you please provide assistance?

Similar to my question

[walen]

Dear GMA,

Could the issues I mentioned be because I didn't open CubeMX before opening SDK 5.4.8? Since CubeMX 6.13 is a later version than CubeMX 6.4, are there any solutions? My company requires IT personnel for installations and uninstalls.



thank you

 walen
