Problem with setting up and flashing the P-NUCLEO-IHM002 using the Motor Profiler and STM Motor Workbench

[Sravan33322]

I have a problem with setting up and flashing the P-NUCLEO-IHM002 using the Motor Profiler and STM Motor Workbench. Kindly help me in setting this up, preferrably run a example folder either six step or foc. Once done, help me integrate with Matlab simulink MBD workflow. Also provide methods for manual code addition in the generated code using STM32CUBEIDE.

[GMA]

Hello @Sravan33322 ,

First refer to How to write a Motor control post.
Refer to NUCLEO-IHM002 page, video is available for generating/compiling/flashing project.
Refer to "Matlab Help center" for Matlab simulink MBD workflow integration.



[Sravan33322]

Part No:P-NUCLEO-IHM03

Version of MCSDK: 5.4.8

Tool : MC WB,MC PROFILER, P-Nucleo-IHM03

Entered code not flashed into the controller.

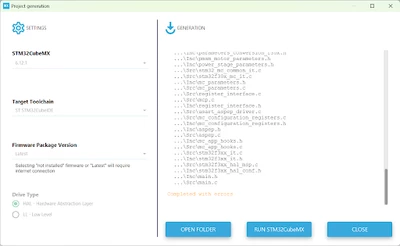

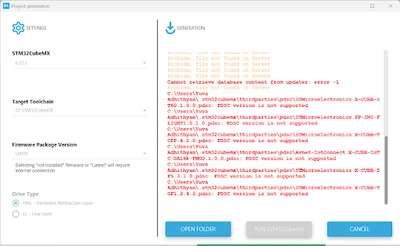

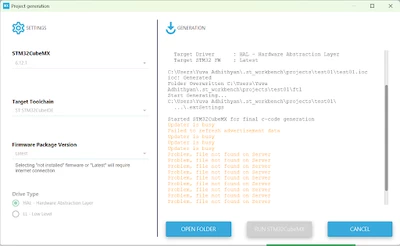

Here I am attached the error generated during the flashing of code.



[GMA]

Hello @Sravan33322,

As main.c has been generated correctly, did you try to compile the generated project?
If the compile is fine, proceed with it.
