sending signal (UART) while running MotorControl

[JKong.3]

Hi,

I'm currently working on sending signals through FDCAN or UART of B-G431B-ESC1 while driving a motor.

I have written a debug code which sends UART data when a button is pressed.

However, the function is called once and never called again, nor the motor won't start.

"stm32g4xx_mc_it"

uint8_t mc_it_debug[64];

void EXTI15_10_IRQHandler (void)

{

/* USER CODE BEGIN START_STOP_BTN */

  sprintf(mc_it_debug, "StartStop Button Pressed\r\n");

  HAL_UART_Transmit_DMA(&huart2, mc_it_debug, sizeof(mc_it_debug));

  if (  0U == LL_EXTI_ReadFlag_0_31(LL_EXTI_LINE_10) )

  {

    /* Nothing to do */

  }

  else

  {

    LL_EXTI_ClearFlag_0_31 (LL_EXTI_LINE_10);

    ( void )UI_HandleStartStopButton_cb ();

  }



}



in the main.c file,

/* Reset of all peripherals, Initializes the Flash interface and the Systick. */
HAL_Init();

/* USER CODE BEGIN Init */

/* USER CODE END Init */

/* Configure the system clock */
SystemClock_Config();

/* USER CODE BEGIN SysInit */

/* USER CODE END SysInit */

/* Initialize all configured peripherals */
MX_GPIO_Init();
MX_DMA_Init();
MX_ADC1_Init();
MX_ADC2_Init();
MX_COMP1_Init();
MX_COMP2_Init();
MX_COMP4_Init();
MX_CORDIC_Init();
MX_DAC3_Init();
MX_OPAMP1_Init();
MX_OPAMP2_Init();
MX_OPAMP3_Init();
MX_TIM1_Init();
MX_MotorControl_Init();
MX_FDCAN1_Init();
MX_USART2_UART_Init();

/* Initialize interrupts */
MX_NVIC_Init();

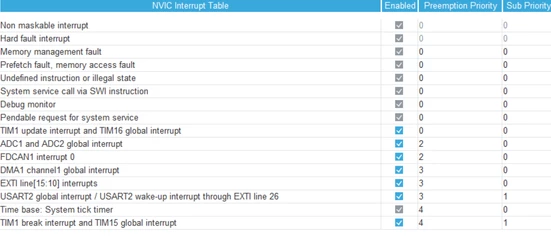

I am assuming it is a priority issue, which is set as

Any advice will be helpful.







[JKong.3]

Update : HAL_UART_Transmit_IT() works

I'm guessing there's some conflict btw DMA and MotorControl



[JKong.3]

Update : FDCAN also works, so anyone who tries to use FDCAN,

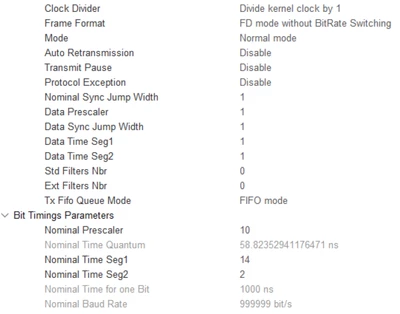

my setting is (for 170MHz clock)

I don't know what's wrong with DMA really.

[mƎALLEm]

Hello,

Regarding your FDCAN bitrate config, I see 999999bit/s. So please try to find another values for NSEG1 and NSEG2 to have exactly 1000000bit/s (1Mb/s)

[JKong.3]

Ok, will do

[LCE]

I cannot imagine that 1ppm deviation of the FDCAN bitrate is the problem here...

Do you do any analog debouncing of the button ? If not, do it in the source code, so suppress any button action for some time after each button action.

[JKong.3]

Can you tell me the meaning of debouncing? I'm assuming what you're saying is create another callback for rising-edge interrupt of a button

UART_Transmit_IT and CANFD works fine, it's just that when I want to check if FDCAN is working by sending UART signals in FDCAN_TxBufferCompleteCallback by

sprintf(debug_main, "FDCAN_TxCallback Called\r\n");
HAL_UART_Transmit_DMA(&huart2, debug_main, sizeof(debug_main));

DMA doesn't work(meaning it does not send data and the motor doesn't run), but when I change it to HAL_UART_Transmit_IT, it works fine.

[LCE]

Search the web for basics about switches and debouncing.

And not only debouncing:
If you only check the level of the switch GPIO, think about the time it is actually pressed vs. the few micro-/ milliseconds it actually takes the MCU to perform stuff.
So before you release the switch, everything might be triggered several times, which might create several problems.

I would do the following:
- reduce the ISR to just set a flag and save the time (SysTick or some other timer)
- block or ignore the button interrupt for some time (check flag and SysTick)

[JKong.3]

I will research more on that. Thanks for your help.

[JKong.3]

In the software side, it works fine, but when I try to debug using oscilloscope, the waveform won't show.

In TSK_HighFrequencyTask()  (16 kHz), I downsampled to 8kHz, then stores alphabeta current and voltage (8 bytes per cycle) to a 64 byte buffer then sends a FDCAN signal storing that buffer. (so tx frequency is 1kHz)



my code :

// in fdcan.c,

/* FDCAN1 init function */

void MX_FDCAN1_Init(void)

{



  /* USER CODE BEGIN FDCAN1_Init 0 */



  /* USER CODE END FDCAN1_Init 0 */



  /* USER CODE BEGIN FDCAN1_Init 1 */



  /* USER CODE END FDCAN1_Init 1 */

  hfdcan1.Instance = FDCAN1;

  hfdcan1.Init.ClockDivider = FDCAN_CLOCK_DIV1;

  hfdcan1.Init.FrameFormat = FDCAN_FRAME_FD_NO_BRS;

  hfdcan1.Init.Mode = FDCAN_MODE_NORMAL;

  hfdcan1.Init.AutoRetransmission = DISABLE;

  hfdcan1.Init.TransmitPause = DISABLE;

  hfdcan1.Init.ProtocolException = DISABLE;

  hfdcan1.Init.NominalPrescaler = 1;

  hfdcan1.Init.NominalSyncJumpWidth = 1;

  hfdcan1.Init.NominalTimeSeg1 = 5;

  hfdcan1.Init.NominalTimeSeg2 = 2;

  hfdcan1.Init.DataPrescaler = 1;

  hfdcan1.Init.DataSyncJumpWidth = 1;

  hfdcan1.Init.DataTimeSeg1 = 1;

  hfdcan1.Init.DataTimeSeg2 = 1;

  hfdcan1.Init.StdFiltersNbr = 0;

  hfdcan1.Init.ExtFiltersNbr = 0;

  hfdcan1.Init.TxFifoQueueMode = FDCAN_TX_FIFO_OPERATION;

  if (HAL_FDCAN_Init(&hfdcan1) != HAL_OK)

  {

    Error_Handler();

  }

  /* USER CODE BEGIN FDCAN1_Init 2 */

  /* configure reception filter to Rx buffer 0*/



  sFilterConfig.IdType = FDCAN_STANDARD_ID;

  sFilterConfig.FilterIndex = 0;

  sFilterConfig.FilterType = FDCAN_FILTER_MASK;

  sFilterConfig.FilterID1 = 0x11;

  sFilterConfig.FilterID2 = 0x11;

  sFilterConfig.FilterConfig = FDCAN_FILTER_TO_RXFIFO0;



  if(HAL_FDCAN_ConfigFilter(&hfdcan1, &sFilterConfig)!= HAL_OK)

  {

  Error_Handler();

  }



  /* configure Tx buffer message */



  // Configure Tx Header

  TxHeader.Identifier = 0x11;

  TxHeader.IdType = FDCAN_STANDARD_ID;

  TxHeader.TxFrameType = FDCAN_DATA_FRAME;

  TxHeader.DataLength = FDCAN_DLC_BYTES_64;

  TxHeader.ErrorStateIndicator = FDCAN_ESI_ACTIVE;

  TxHeader.BitRateSwitch = FDCAN_BRS_OFF;

  TxHeader.FDFormat = FDCAN_FD_CAN;

  TxHeader.TxEventFifoControl = FDCAN_NO_TX_EVENTS;

  TxHeader.MessageMarker = 0;



  /* Start FDCAN module */

  if(HAL_FDCAN_Start(&hfdcan1) != HAL_OK)

  {

  Error_Handler();

  }

  /* USER CODE END FDCAN1_Init 2 */



}



// in mc_tasks.c, TSK_HighFrequencyTask()

  /* USER CODE BEGIN HighFrequencyTask 1 */
(void)TSK_StoreToBuffer(TxData, buffer_index);
/* USER CODE END HighFrequencyTask 1 */

void TSK_StoreToBuffer(uint8_t * const buffer, uint8_t idx)

{

if (buffer_flag == BUFFER_READY)

{

// alphabeta_t data1, data2;



// data1 = FOCVars[M1].Ialphabeta;

// data2 = FOCVars[M1].Valphabeta;

//

// buffer[idx] = (uint8_t)(data1.alpha & 0xff);

// buffer[idx+1] = (uint8_t)((data1.alpha)>>8 & 0xff);

//

// buffer[idx + 16] = (uint8_t)(data1.beta & 0xff);

// buffer[idx + 17] = (uint8_t)((data1.beta)>>8 & 0xff);

//

// buffer[idx + 32] = (uint8_t)(data2.alpha & 0xff);

// buffer[idx + 33] = (uint8_t)((data2.alpha)>>8 & 0xff);

//

// buffer[idx + 48] = (uint8_t)(data2.beta & 0xff);

// buffer[idx + 49] = (uint8_t)((data2.beta)>>8 & 0xff);



buffer[idx] = (uint8_t)(0x31);

buffer[idx+1] = (uint8_t)(0x32);



buffer[idx + 16] = (uint8_t)(0x33);

buffer[idx + 17] = (uint8_t)(0x34);



buffer[idx + 32] = (uint8_t)(0x35);

buffer[idx + 33] = (uint8_t)(0x36);



buffer[idx + 48] = (uint8_t)(0x37);

buffer[idx + 49] = (uint8_t)(0x38);







idx += 2;



buffer_flag = BUFFER_BUSY;

}

else

{

if (idx == 16) // transmit message

{

//HAL_UART_Transmit_IT(&huart2, buffer, sizeof(buffer));

HAL_FDCAN_AddMessageToTxFifoQ(&hfdcan1, &TxHeader, buffer);



      idx = 0;

}

buffer_flag++; // BUFFER_READY = (uint8_t) 1, BUFFER_BUSY = (uint8_t) 0

}

}



I also set CAN_TERM pin to high



Any thoughts on what am I missing?









[JKong.3]

Sorry, it was a programming issue.

[Piranha]

So why the wrong answer was selected as a solution?

[JKong.3]

Sorry, got mixed up with my main goal (FDCAN + motorcontrol) with this topic (UART_DMA + GPIO interrupt(button))

I didn't mention that at first I sent FDCAN messages when button is pressed, then the FDCAN RX interrupt will send UART_DMA message. Which didn't work (also motorcontrol stopped operating), so I decided to send UART DMA message directly when button is pressed, which is the question stated here.

So can you edit this topic as not solved?

[LCE]

Okay...

Did the debouncing do the trick for the first basic problem?

[JKong.3]

I couldn't due to my lack of programming skills. I will keep in mind when I start another project using UART.
