Set hall sensor parameters with the result from ST Motor Profiler?

[DF_MC]

Hello Everybody,

Here are the software and boards in this case:

1. MC workbench 6.3.2
2. NUCLEO-F401RE
3. X-NUCLEO-IHM08M1

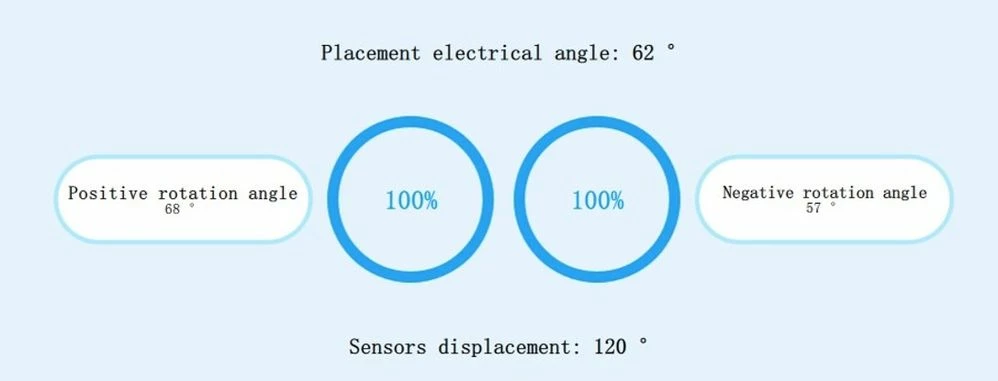

I try to use the boards to obtain motor parameters. Now I got the result as illustrated in the picture? Should I set the parameter "placement electrical angle" to 131? Thank you!

[STuser2]

If you check the MCSDK documentation of the hall sensor profiling example

you will get the placement angle on the top they are calculating as 360 + (-56-67/2).

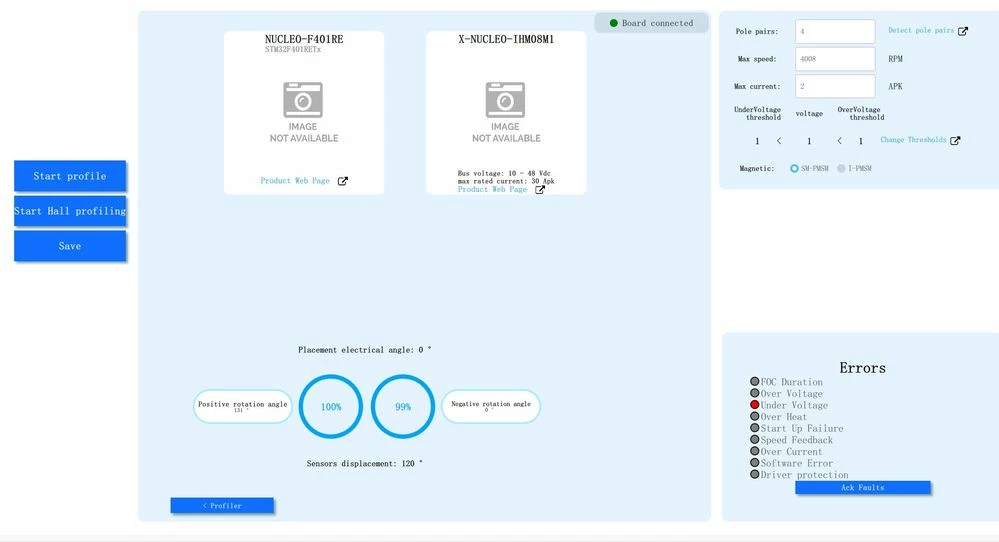

In your case the profiling is not complete i think it is not 100% and you did not get the value.

[DF_MC]

Hello, thanks for your reply. So in my case, I should calculate the placement angle with (68+57)/2=62, right? Thanks a lot.
