STEVAL-CTM012V1A USART CONNECTION ISSUE

[IC5151]

Hi ,

I am using multiple ST Evaluation Boards and all worked well . However , in one of the board i am facing issue of UART connection . Board is ST



EVAL-CTM012V1A . STMCSDK is 6.3.2, Keil u vision 5 , STM32cube Mx 6.11.1 . Baud rate tried :- 9600,115200,19200,1843200 . . However board is running fine in debug mode . Please help me in solving this issue

[cedric H]

Hello @IC5151

What do you mean by :"However board is running fine in debug mode"

Are you referring to compiler optimization?

Regards

Cedric



[IC5151]

Hi Cedric ,

Debug mode means running fine with IDE .

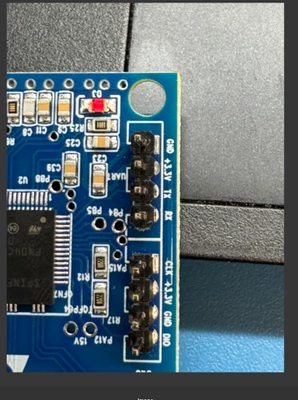

Got this issue rectified as on board Tx and Rx labelled in reverse.



When i connected Tx of USB to ttl to TX of board and Rx to RX of board , connection build .



Thanks for your support and reply.





[cedric H]

Hi

> When i connected Tx of USB to ttl to TX of board and Rx to RX of board , connection build .

Does it mean that your problem is solved and you can connect the MC Pilot to your board ?

Regards

Cedric

[IC5151]

Yes its solved .

But one more issue occurs  that is connection lost when motor runs . That may be due to interference of magnetic field when motor start running  . If you have any idea to resolve this , it would be helpful for me . Please share .

[cedric H]

Hi

The only idea is to configure the UART RX pin with internal pull-up, it could help but it is not guarantee. reducing the baudrate will make the data wider and could also help.

Regards

Cedric



[IC5151]

i tried reducing the baud rate still it didnt help .

[GMA]

Hello @IC5151,

Decreasing PWM frequency:
