STEVAL-CTM01xV1 firmware

[PGinhson]

Hi.
I have the IDE with the STEVAL-CTM01xV1 shunt_FOC and downloaded on the Board. As the example came, the motor doesen't work.

I opened the main.c file and I could see that it does not have any function inside the main while(1) loop. How could I have a working example to start testing the board?

[GMA]

Hello,

Did you go through readme.txt document?
As mentioned in the readme.txt, for testing "6. Run the example : through the STM32 MC Workbench monitor GUI (Start Motor), or/and by pressing the Start/Stop button."
This example is for a Selni motor.

[PGinhson]

Thank you, but...

Where is the start/stop button on STEVAL-CTM011V1?

[GMA]

Hello,

Readme.txt is automatically opened once you select the example, I have attached the file in my previous response.

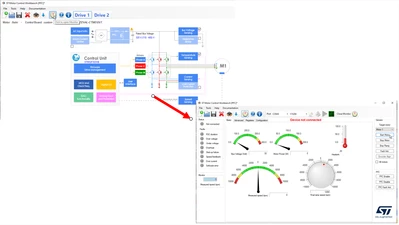

Selecting the monitor mode, you can select the motors and start/stop buttons.
