STEVAL-SPIN3201 "ASPEP_RESP ERROR:CMD_NOK"

I'm working with the STEVAL-SPIN3201 board

I have compiled and uploaded example "6s_STEVAL3201_HS_VM"

I have a 70mm diameter sensored BLDC motor

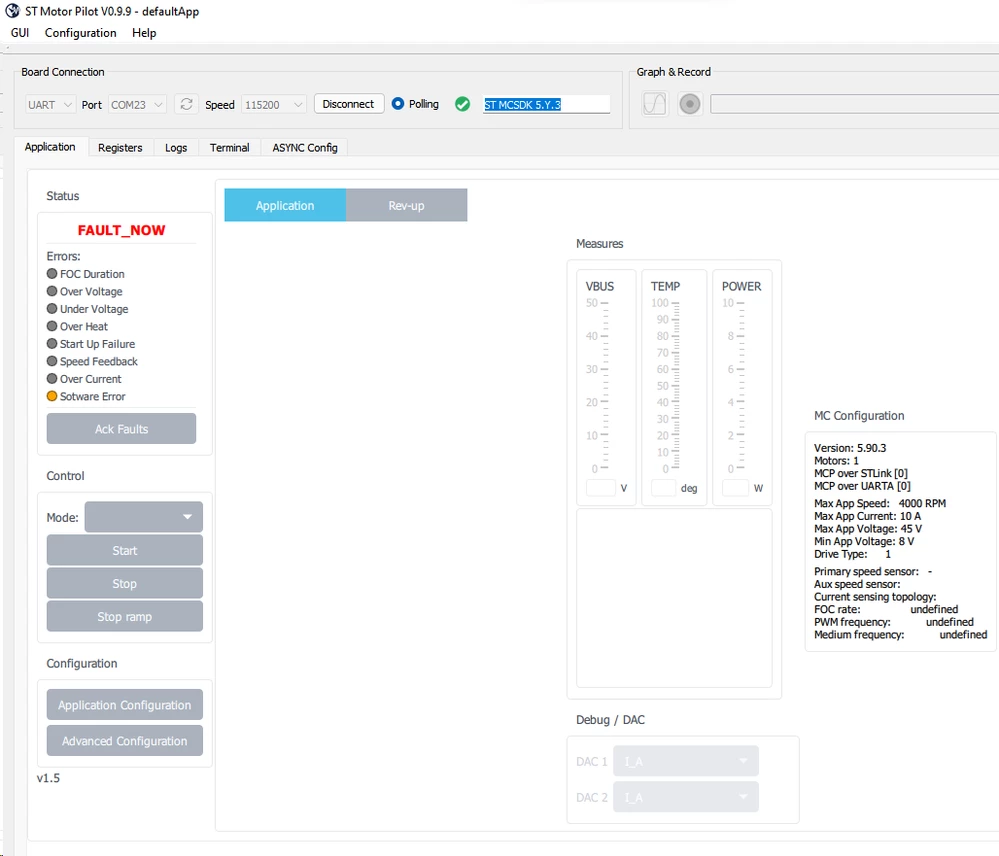

When I connect through the software ST Motor Pilot V0.9.9 click in "Start" Motor and the motor turns 1/4 turn and stops .

I get a "FAULT_NOW" error message "Software Error" . In Logs

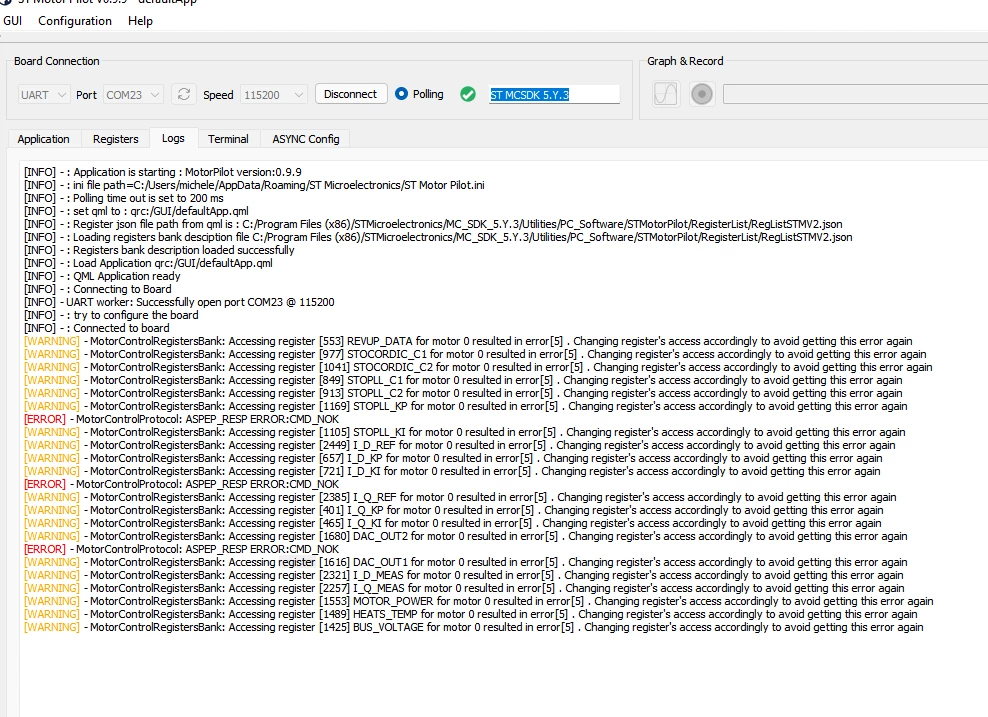

"[ERROR] - MotorControlProtocol: ASPEP_RESP ERROR:CMD_NOK"

I use ST "MCSDK 5.Y.3" version.

Visitor II

Hi,

I have the same problem. Were you able to find a solution?

Associate II

Even I got the same error. I created a new WB project and configured each module with correct parameters again. Now it works.

Technical Moderator

@michelemancini2 @Rajeswari @DCuni.1

I think this 2.5 years old ticket is not relevant anymore.

Would you agree that we close it by accepting @Rajeswari answer as Solution?

Cedric
