Unable to Flash Firmware on STEVAL-SPIN3202 – ST-LINK V2 Detected but Target Not Connecting

[SSI_Himansu]

Hi Team,

I am working with the STEVAL-SPIN3202 evaluation board and facing an issue while trying to flash firmware to the target MCU.

Setup Details:

• Board: STEVAL-SPIN3202
• Programmer: Onboard ST-LINK
• Tool: STM32CubeIDE

Issue Description:

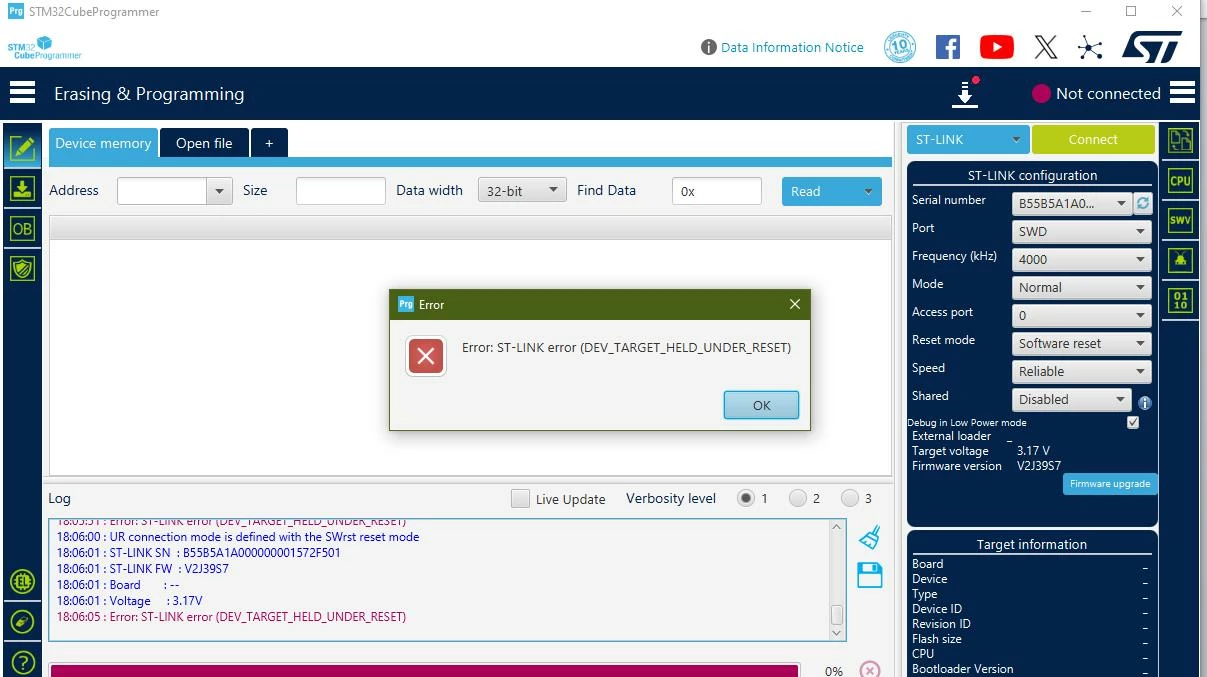

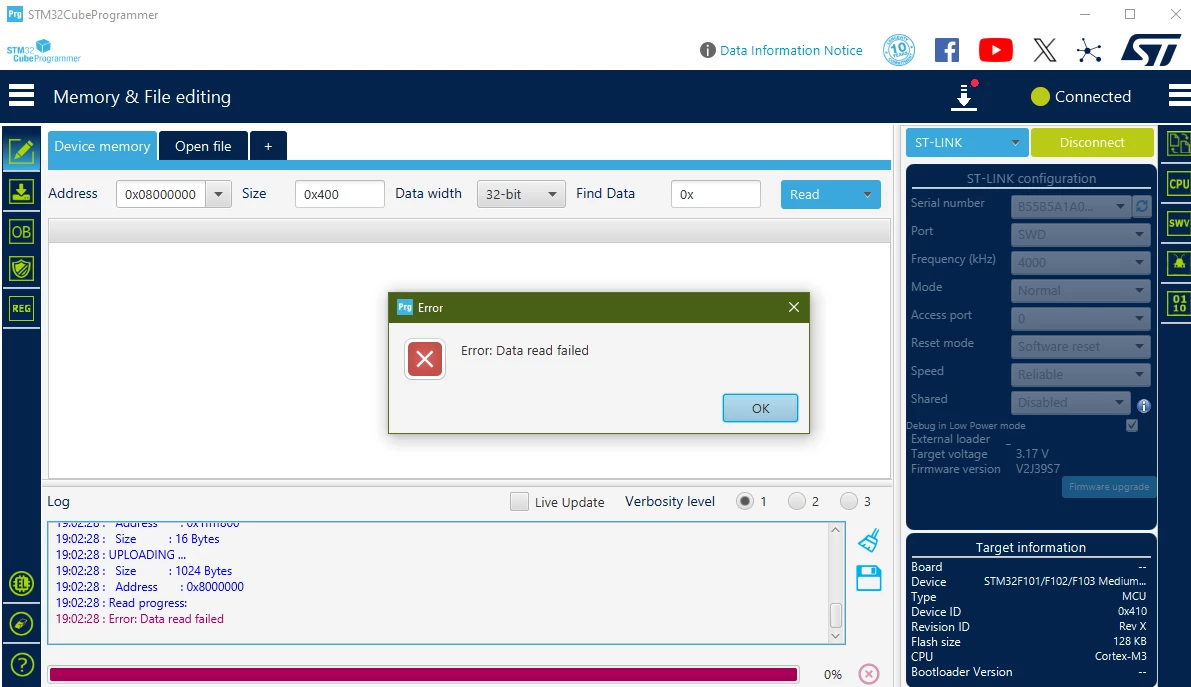

• ST-LINK is detected in STM32CubeProgrammer but not able to connect to the target MCU STM32F103CBT6
• Programming fails consistently


PFA, Kindly suggest to resolve this issue.

Thanks,
Himansu
Small Signals India Pvt. Ltd

[Andrew Neil]

How to solve connection errors when connecting and programming the STM32 target board.

How to solve debugger connection issues
