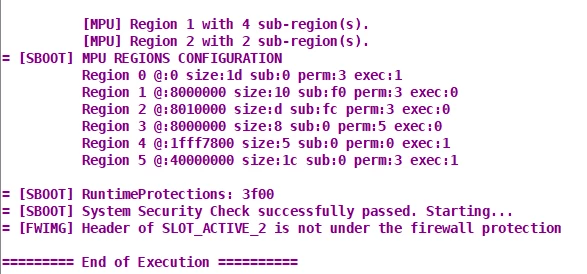

I am trying STM32CubeExpansion_SBSFU_V2.4.0 with 2 Active images and 2 Download areas and assigned the LOcation in mapping_fwimg.icf. Code is building but i am getting error = "[FWIMG] Header of SLOT_ACTIVE_2 is not under the firewall protection"

[DMira.11]

Please guide me how to add SLOT_ACTIVE_2 to firewall protection.

[DMira.11]

Can any body help with this??

[Ons KOOLI]

Hi @DMira.1​ ,

Can you please provide more details about the claim:

• board name
• project directory
• Steps you followed to run the project
• IDE used to run the project

Best Regards,

Ons.

[DMira.11]

Hi,

Board: Nucleo L476RG

Project directory : ​STM32CubeExpansion_SBSFU_V2.4.0

Ide : stm32 Workbench​

Steps : ​https://www.st.com/resource/en/user_manual/dm00414687-getting-started-with-the-xcubesbsfu-stm32cube-expansion-package-stmicroelectronics.pdf

​

https://www.st.com/resource/en/application_note/dm00414677-integration-guide-for-the-xcubesbsfu-stm32cube-expansion-package-stmicroelectronics.pdf

[DMira.11]

I am in search of solution... Please help..​

[Ons KOOLI]

Hi @DMira.1​ ,

Sorry for the delay, we were celebrating Aid.

Can you specify which project exactly did you run.

Best Regards,

Ons.

[DMira.11]

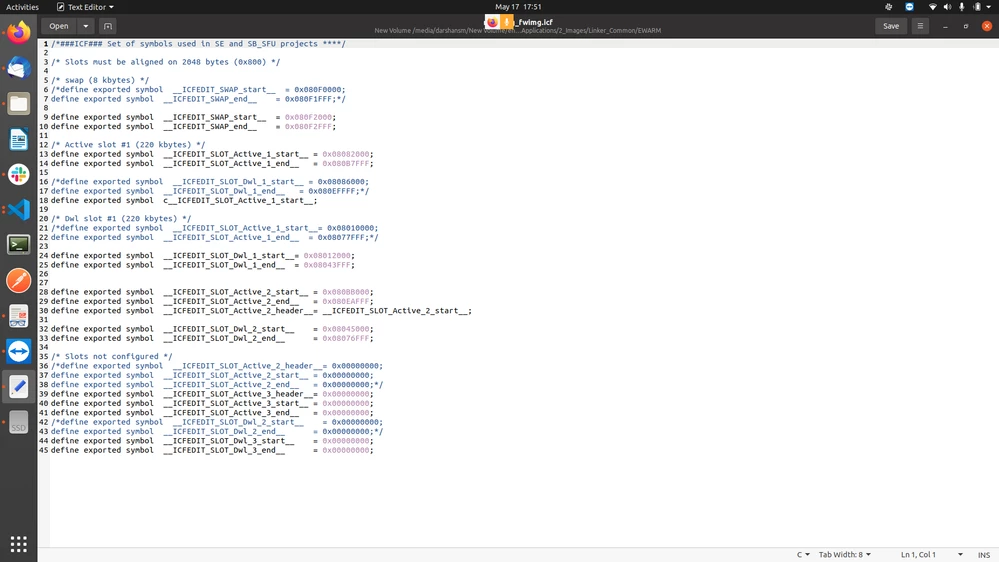

There is only one project on L476RG in​ STM32CubeExpansion_SBSFU. It is working with out any issue. But I added 2 active and 2 download slots by modifying Macros SFU_NB_MAX_ACTIVE_IMAGE and SFU_NB_MAX_DWL_AREA. And even i added memory locations in mapping_fwimg.icf. Please refer the image attached. I am getting error SLOT_ACTIVE_2 is not under firewall protection.

[Bubbles]

Hi @DMira.1​ ,

while SBSFU 2-image code supports automatic configuration of up to 6 slots, you cannot have more than 3 slots of one kind automatically configured by the code. Please see the declarations in sfu_fwimg_regions.h

So while 3 active and 3 download works without any modification to the provided SBSFU, to actually get 4 slots of one kind you need to change the SBSFU code significantly. I believe it's possible to make it work in the end, but to be honest, I see no practical use for 4 active slots.

Kind regards,

J.

[DMira.11]

Hi @JHOUD​

Thank you for response, I tried automatic configuration but ends with some error. I modified in  sfu_fwimg_regions.h as well... Facing same issue

[Bubbles]

@DMira.1​ Can you be more specific?

I need a lot more detail to reproduce your problem. What "some error"?

J.
