SBSFU 2image 2active dualcore Error during swap process.

[yolominwoo]

I am implementing sbsfu on stm32h745 chipset.
Ported 2images from stm32h753 sbsfu examples.
Among slots 1 and 2, slot 1 is intended to be used by cm7 and slot 2 by cm4.
Although cm7 is operating normally, I created a separate cm4 package, created an sfb file, and confirmed that the cm4 firmware was installed in dwl_slot2. However, the firmware needs to be moved to active slot 2, but I have no idea how to do it. How to solve this?

mapping_fwimg.ld

__ICFEDIT_SWAP_start__           = 0x08100000;

__ICFEDIT_SWAP_end__             = 0x0811FFFF;

/* Active slot #1 in Sector 1 to 7 of Bank1; 7 x 128 kbytes */

__ICFEDIT_SLOT_Active_1_start__  = 0x08020000;

__ICFEDIT_SLOT_Active_1_end__    = 0x0809FFFF;

__ICFEDIT_SLOT_Active_1_header__ = __ICFEDIT_SLOT_Active_1_start__;

/* Dwl slot #1 in sector 1 to 7 of Bank2 : 7 * 128 kbytes */

__ICFEDIT_SLOT_Dwl_1_start__     = 0x08120000;

__ICFEDIT_SLOT_Dwl_1_end__       = 0x0819FFFF;

__ICFEDIT_SLOT_Active_2_start__  = 0x080A0000;

__ICFEDIT_SLOT_Active_2_end__    = 0x080BFFFF;

__ICFEDIT_SLOT_Active_2_header__ = __ICFEDIT_SLOT_Active_2_start__;

__ICFEDIT_SLOT_Dwl_2_start__     = 0x081A0000;

__ICFEDIT_SLOT_Dwl_2_end__       = 0x081BFFFF;



app_sfu.h

#define SFU_NB_MAX_ACTIVE_IMAGE 2U                        /*!< 1 active image managed */

#define SFU_NB_MAX_DWL_AREA     2U                        /*!< 1 dwl area managed */

#define MASTER_SLOT             SLOT_ACTIVE_1             /*!< SLOT_ACTIVE_1 identified as master slot */

[Jocelyn RICARD]

Hello @yolominwoo;,

the SBSFU should recognize the firmware in download slot 2 as a "slot 2" firmware.

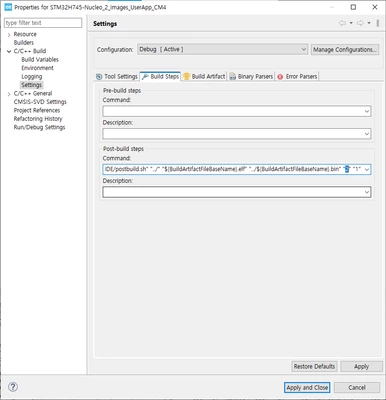

For this, you need to provide this slot number in the postbuild command the generates the sfb file. This is the parameter that is just before the version number.

You can see the result in the header of SFB file : First 4 bytes should be SFU2 instead of SFU1

Please not that it is possible to create only one download slot for the 2 firmwares. In that case, you will be able to update one by one and not both at the same time.

Best regards

Jocelyn

[yolominwoo]

I'm get a Error message.

prepareimage.exe enc -k ../../../2_Images_SECoreBin/STM32CubeIDE/../Binary/OEM_KEY_COMPANY2_key_AES_CBC.bin -i ../../../2_Images_SECoreBin/STM32CubeIDE/../Binary/iv.bin ../UserApp.bin ..//../Binary/UserApp.sfu : failed



[Jocelyn RICARD]

Hello @yolominwoo

the error tells you what is the issue: you need to have other set of keys to encrypt and sign the image.

Keys are located in SECoreBin\Binary

Best regards

Jocelyn

[yolominwoo]

I finally made SFU2 Image but cm4 can't boot...

SBSFU	0x08000000	0x0801FFFF
CORE_CM7 Active	0x08020000	0x0803FFFF
CORE_CM7 Active	0x08040000	0x0805FFFF
CORE_CM7 Active	0x08060000	0x0807FFFF
CORE_CM7 Active	0x08080000	0x0809FFFF
CORE_CM7 Dwl	0x080A0000	0x080BFFFF
CORE_CM7 Dwl	0x080C0000	0x080DFFFF
CORE_CM7 Dwl	0x080E0000	0x080FFFFF
CORE_CM7 Dwl	0x08100000	0x0811FFFF
SWAP	0x08120000	0x0813FFFF
	0x08140000	0x0815FFFF
	0x08160000	0x0817FFFF
CORE_CM4 Active	0x08180000	0x0819FFFF
CORE_CM4 Dwl	0x081A0000	0x081BFFFF
	0x081C0000	0x081DFFFF
	0x081E0000	0x081FFFFF

I'm setting like this so I can Download in 0x081A0000 for cm4 firmware but can't Active.
