StartTeraTermL5 shortcut does not open any window

[HElah.1]

When it does not open any window, as it is mentioned in TFM_Homework.pdf, what can I do instead to know the board (STM32L5) is ready for "STM32 Security Workshop PSA-TFM"?

I didn't see the windows in the attachments.

[Frantz LEFRERE]

First insure the STM32L5 Nucleo is plugged on you PC ( and insure you don't have any other ST board connected).

Then you can check in Windows device manager in Ports(COM &LPT) -> You should see a STLink Virtual com port.

You can open a command windows and type those command :

cd c:\STM32SecuWS\Tools\teraterm\

StartTTPL5.bat

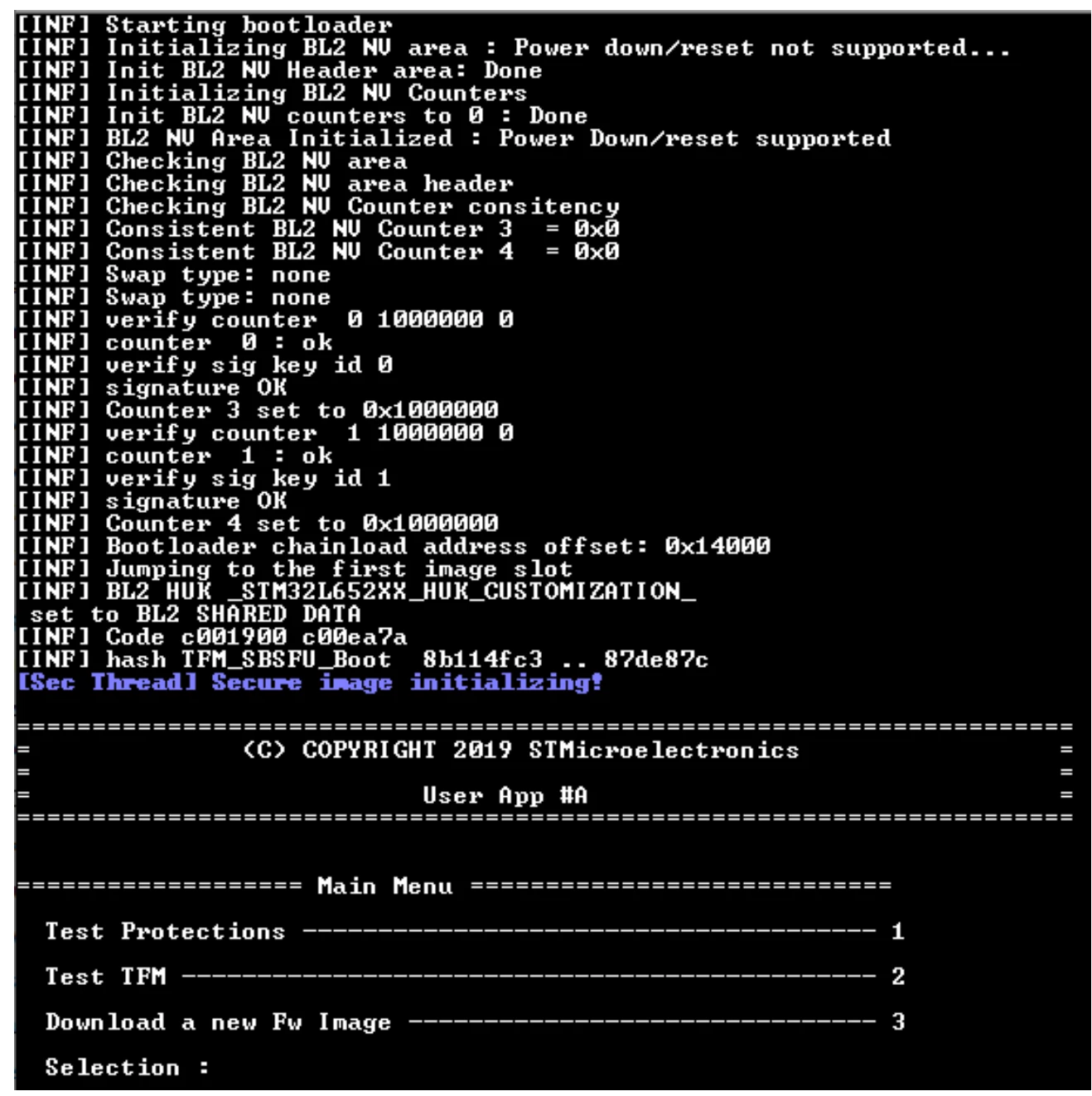

You should see some trace.

If it's still not working, let me know and I will set up a short team meeting to help you.

[HElah.1]

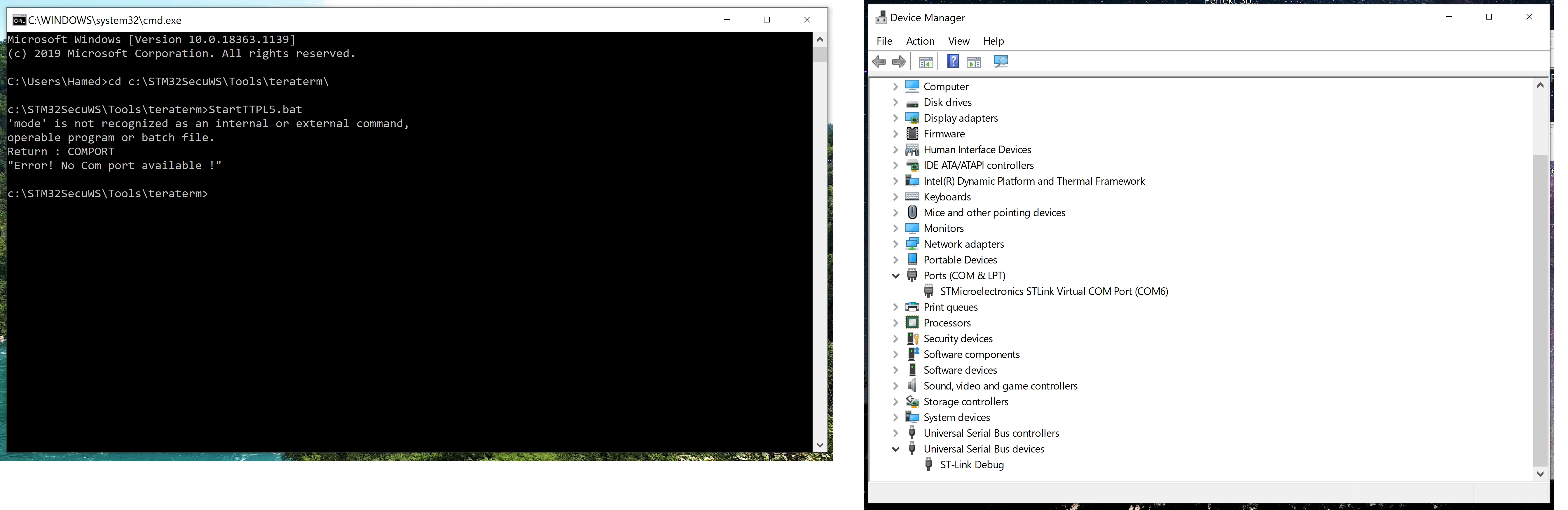

Thank you, I have done it after asking the question, then I attach this window for you.

You can see also my device manager in this attachment. I have done everything like the pdf.

[Frantz LEFRERE]

You issue is link to the fact windows doesn't found mode command.

Could you check this is present on your PC ?

In a command windos:

dir C:\windows\System32\mode.com

If it's present, check you windows Path variable to insure the "C:\windows\system32" is present .

An other workaround would be to put the absolute path in the 2 following scripts

C:\STM32SecuWS\Tools\teraterm\StartTTPL5.bat

and

C:\STM32SecuWS\Tools\teraterm\StartTTPL4.bat

change line 25 :

  FOR /F "tokens=4 USEBACKQ" %%F IN (`C:\windows\system32\mode ^| find " COM"`) DO (

[HElah.1]

Thank you so much. The second one was my problem. "C:\windows\system32" was not in Path.

Sorry for taking your time. It was maybe my third question in internet forums all my life, because there is always the answer, when I search for it, but as there were not too many days to the workshop, I was in a hurry to make sure about everything.

Sorry again.

Have a nice day.

[Frantz LEFRERE]

No problem at all, you're welcome. I hope you will enjoy the workshop !

[HElah.1]

Thank you. That is definitely a very useful workshop.
