STM32 cryptographic firmware ECDSA

[Roger0x0000]

Hi ST,

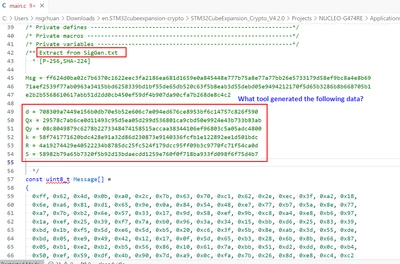

     What tool generated the following data?Can you send me this tool? thanks.



https://www.st.com/en/embedded-software/x-cube-cryptolib.html

STM32 cryptographic firmware library software expansion for STM32Cube.



The path of the code is as follows:

.\STM32CubeExpansion_Crypto_V4.2.0\Projects\NUCLEO-G474RE\Applications\ECC\ECDSA_SignVerify\Src\main.c









[Joe WILLIAMS]

Hi Roger0x0000



This post has been escalated to the ST Online Support Team for additional assistance.  We'll contact you directly.



Kind Regards

Joe

STMicro Support

[Tesla DeLorean]

Looks to be cut from the NIST test vectors. For some of the newer ones they had .PY scripts too.

But you could test and make your own with things like Micro ECC and there are other Windows tools

[Tesla DeLorean]

https://csrc.nist.gov/projects/cryptographic-algorithm-validation-program/digital-signatures
https://csrc.nist.gov/CSRC/media/Projects/Cryptographic-Algorithm-Validation-Program/documents/dss2/ecdsa2vs.pdf
https://csrc.nist.gov/CSRC/media/Projects/Cryptographic-Algorithm-Validation-Program/documents/dss/186-4ecdsatestvectors.zip (SigGen.txt this vector about 10% into file, grep or search for it)



If you want to replicate, convert the message into a byte array, run SHA-224, check d

Use your signing code, the private key and the random data to recreate the signing, and then verify

Make a "pretty printer" to output info in this format for your own keys or whatever.

This is really just a validation pattern people can use to assure the algo is implemented and working correctly.
