Can't open .ioc, The CMSIS-Pack

  • February 4, 2024
  • 2 replies
  • 3318 views

Hi, got a problem opening the .ioc.

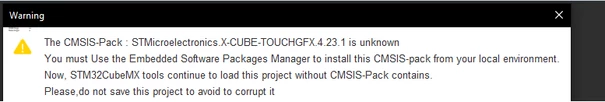

It shows me this error.




This topic has been closed for replies.
Best answer by JTP1

Hello

By default, downloaded files are placed in the download- folder (windows: C:\users\your name\downloads). On the othr hand, there is not any specific location where file must be.

Br JTP

2 replies

JNova.0
JNova.0
Associate III
February 4, 2024

The TouchGFX installation will not install anything to STM32CUBEIDE or STM32CUBEMX.

You can install in these environments from the Internet or use what you downloaded and installed. Select the TouchGFX installation file packaged in the local storage.

Help / Manage Embedded Software Packages
STMicroelectronics
X-CUBE-TOUCHGFX

install version 4.23.1

F
ferdlfAuthor
Associate III
February 4, 2024

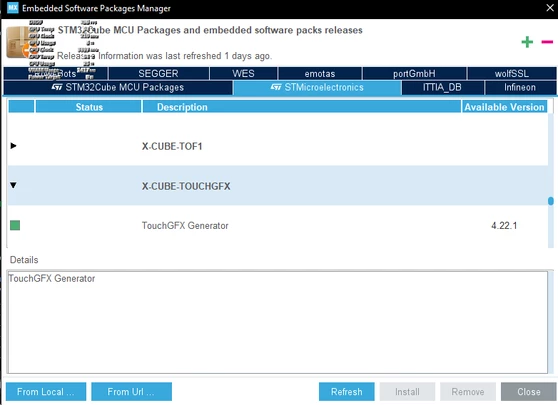

It only shows version 4.22.1 as the lastest.

What can I do to get that version?



J
JTP1
Graduate II
February 4, 2024

Hi

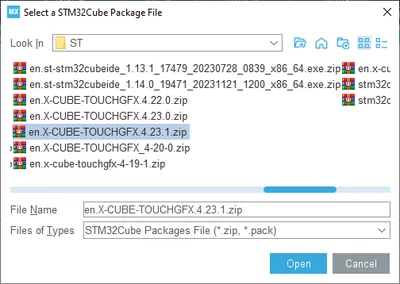

I guess you have allready download th 'en.X-CUBE-TOUCHGFX.4.23.1.zip'. Just press From Local and browse the zip file.


Latest version is not yet available thru the CubeMX package manager directly.

Br JTP

    Pavel A.
    Pavel A.
    Super User
    February 4, 2024

    Here:  https://www.st.com/en/embedded-software/x-cube-touchgfx.html

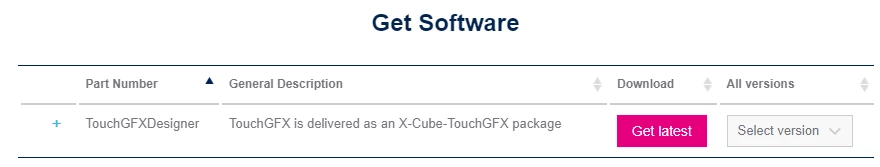

    Click on "Get software". On this page click on Select version and select 4.23.1.






    F
    ferdlfAuthor
    Associate III
    February 4, 2024

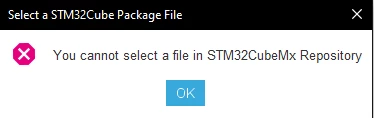

    Ok and what file should I put the .zip in? Cause I tried in the repository but the IDE gave me an error.

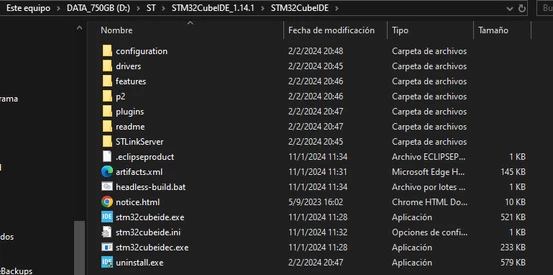

    I got another ST folder on another disk but I don't know.




    JNova.0
    JNova.0
    Associate III
    February 5, 2024

    so from the beginning. Apparently, you have STM32CUBEIDE or STM32CUBEMX installed, but you don't have the TouchGFX extension installed there. You have to download this here (Get latest):

    https://www.st.com/en/development-tools/touchgfxdesigner.html




    You must log in (register). After downloading this package, don't unpack anything and use this package to install extension To STM32CUBEIDE, STM32CUBEMX (both applications share the same space, just install to one) "en.X-CUBE-TOUCHGFX.4.23.1.zip". You can then install the TouchGFX environment itself after unpacking the downloaded package. You can find the installation in the folder "Utilities\PC_Software\TouchGFXDesigner\"

    JN
