Guide to setup of DSI with custom display, custom PCB and NOR Flash?

[Ricko]

Hi,

I am using a STM32U5G9VJT6Q on a custom PCB with a custom DSI round display and QSPI NOR Flash (MT25QL128ABA1EW9-0SIT) holding the graphics.

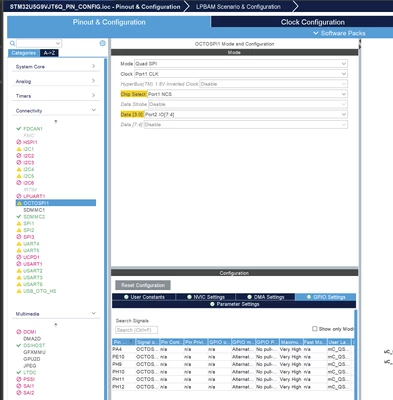

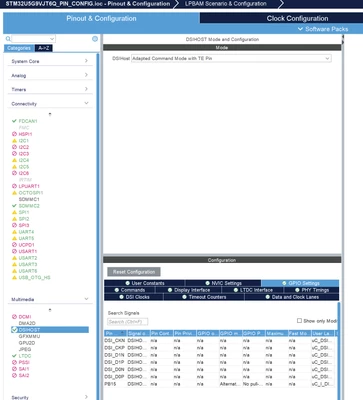

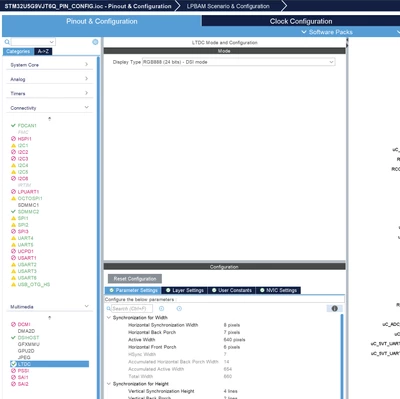

Below are the screenshots for the configuration of the various modules.

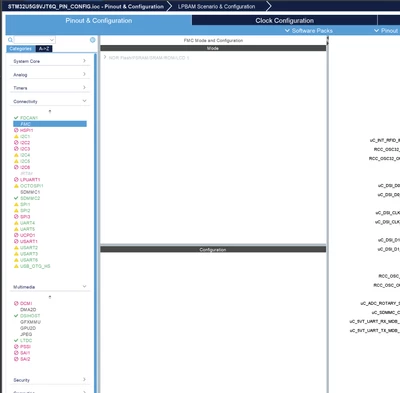

But when I tried configuring the FMC but it is greyed out. How do I enable it?

Is there a step-by-step video to setup MIPI-DSI with custom board and custom display? I have been looking but didn't find any.

If not a video at least some step-by-step guide?

Thank you











[MM..1]

For what FMC? Video guide maybe exist, but is irelevant for other cotrloller as used...

And guide DSI start with right custom PCB design. ... Introduction to DSI host on STM32 MCUs and MPUs - Application note

[Ricko]

Thank you @MM..1  :)
