How to delete a default image in TouchGFX Designer?

[Junde]

Hi,

I am trying to copy the TouchGFXDemo1 in TouchGFX Designer.

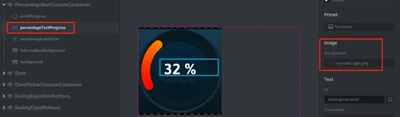

When I add a "text progress", there is a property of Image for the background.

This property always has an initial image, and I do not know how to delete it.

Could someone tell me how to do it?

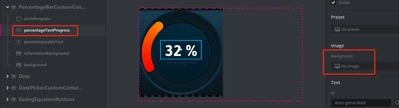

I want it like this:

Thanks





[GaetanGodart]

Hello @Junde ,



Your TouchGFX version seems to be quite old.
In the more recent versions we have removed that feature.
Therefore, the simplest way to solve your problem is to update to a more recent version.

It is always recommended to use the latest version publicly available.



If this solved your issue, I invite you to select this message as "best answer".



Regards,

[Junde]

@GaetanGodart

Thanks for your reply.

My designer version is 4.23.2, which is the latest one.

[GaetanGodart]

Hello @Junde ,



Sorry, I thought it was a text area.

Text progress inherit from AbstractProgressIndicator (documentation here).
So it need an image as background.

If you do not want any image as background, you could simply use a fully transparent image.



Regards,

[Junde]

Thanks @GaetanGodart

What I mean is that in the TouchGFX demo, the Text progress can be without the image property.

But I can't delete it, so I want to know how the demo does it.

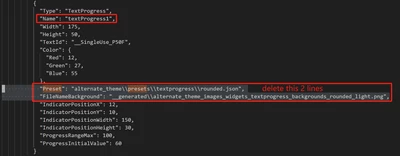

Finally, I found an abnormal solution: delete the property in the .touchgfx file by opening it in text format:



[GaetanGodart]

Hello @Junde ,



I am glad you found a solution!



Regards,
