Mixed image on screen

[MHaji.1]

Hi,

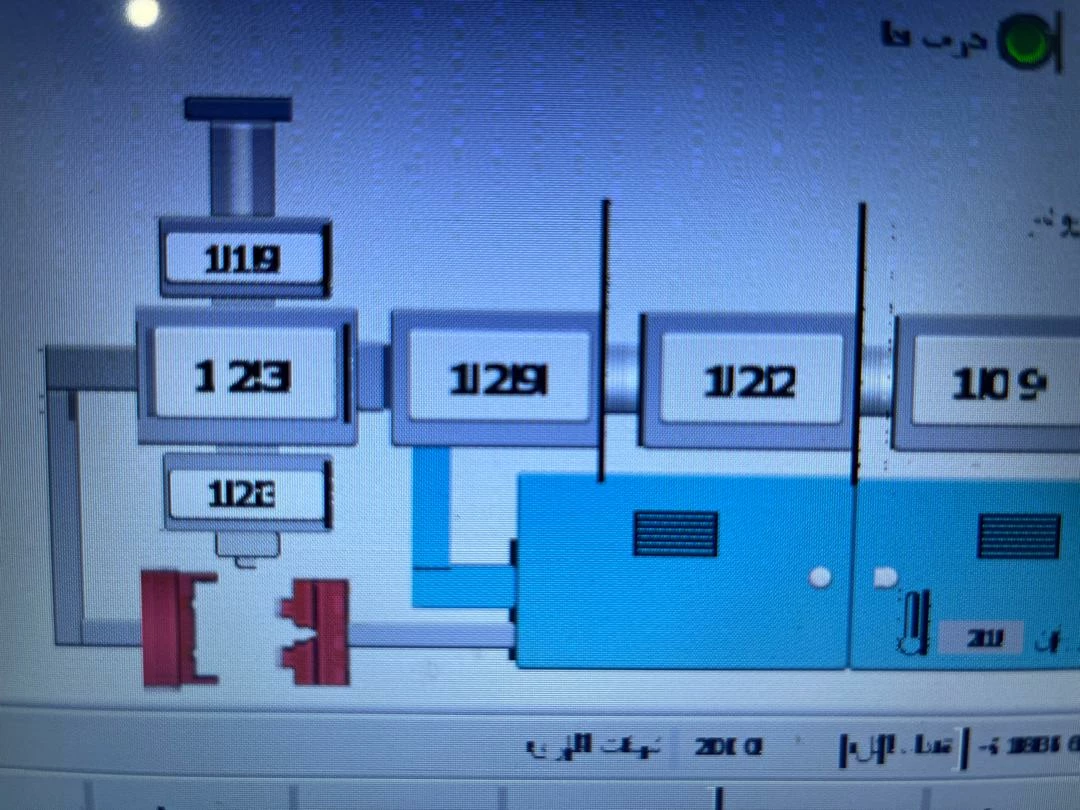

I have a custom board with STM32H743 and working on a project by TouchGFX 4.24. When the device power on or reset, some times I have a mixed image including numbers, pictures and ..., which I attached the image... and some times every thing is Ok after reset or power on. I have another project by TouchGFX on this board, which it always works fine.

Please help me with this, thanks.

[MHaji.1]

I should add, the main difference between program with distorted  program and the correct one is: distorted program GUI is imported from old version of it from TouchGFX Designer... Is there any problem with this?

BR

[Andrew Neil]

---

@MHaji.1 wrote:

---

Please post the corresponding image of what the screen should look like.

Note that you can paste the image into the post - where we can see it - rather than attaching it (where we can't).

[MHaji.1]

Hi Andrew,

Thank you for reply.

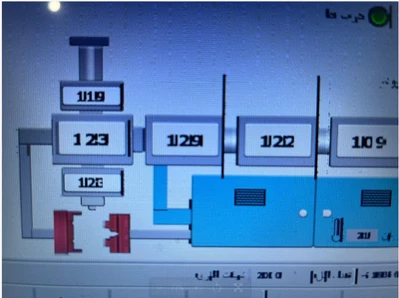

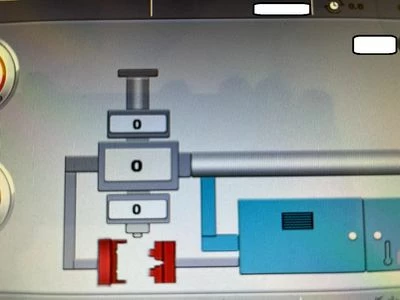

As you see in the picture, The numbers are readable and the picture is correct, but in last one all screen is distorted.

Thanks

[Andrew Neil]

Could this be uninitialised data?

ie, in your first case, the values are "junk", and this corrupts the display ?



PS:

especially if the data is passed via pointers, and it's the pointers that are uninitialised

[mƎALLEm]

Hello,

You said:

---

@MHaji.1 wrote:

I have another project by TouchGFX on this board, which it always works fine.



Is it working on the same MCU part number i.e. STM32H743?

[MHaji.1]

Hello,

Thanks for reply,

Yes, The part numbers are the same.

[mƎALLEm]

---

@MHaji.1 wrote:

Yes, The part numbers are the same.

---

So make a diff with the projects!
