NUCLEO-F072RB with the X-NUCLEO-GFX01M2

[Rupert]

Hey everyone, I'm new to the whole STM32 world so bear with me.

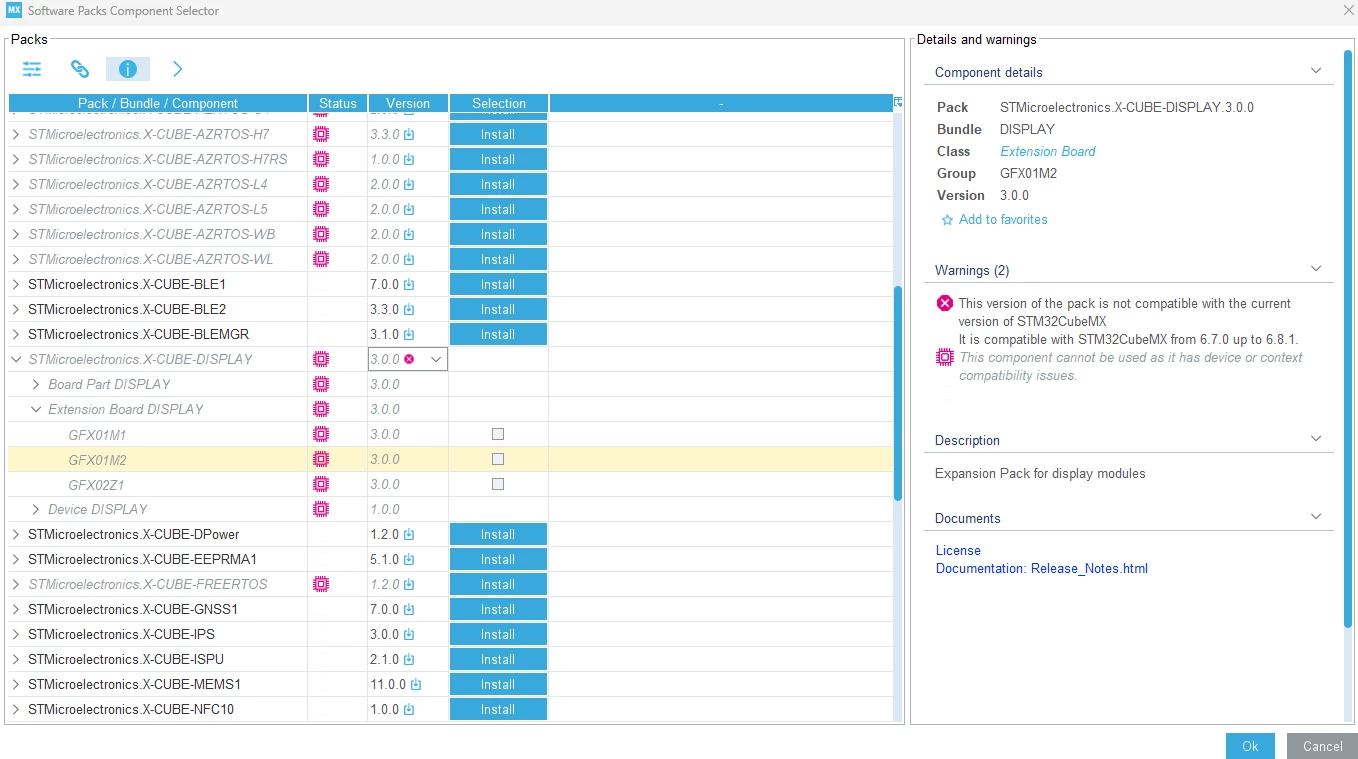

I saw that the NUCLEO-F072RB worked with the X-NUCLEO-GFX01M2, but I can't make it work. The touchGFX is grey in the CubeMX and there are no examples in the touchGFX designer with the F series.

I was trying to work with the IDE instead of CubeMX but the result is the same.

I've seen some answers here about porting and making 2 exact setups and transfering the difference from one to the other but I'm really confused on how to solve this problem.

Can anyone help me out?

Regards,

Rupert

[MM..1]

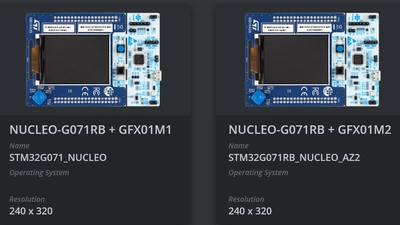

F0 is on edge , but can work . Inspire in



[Rupert]

Thanks for your reply!

What do you mean is on "edge"?

Can work? How?

Do you mean that I should do a project in those templates and wait for its release?

Regards

[MM..1]

Edge of power and resources. F071 16k SRAM vs G072 36k SRAM ... speed 48MHZ vs 64Mhz   M0 vs M0+

GFX01 realy work here only in partial framebuffer mode.

Work normal way, create in IDE new project and add TGFX software package to it.

[Rupert]

I just got this answer from support:

"STM32U083 /G071RB/H503 + GFX01M2 are supported by TouchGFX with a template ready to use for you.
After you select another Nucleo, porting is still possible but would need adaptation.
For prototyping, we also have many different DK boards with screens ( but here IPs interface are more limited), and if the DK board is not supported by TouchGFX we have a BSP driver to create a simple interface without TouchGFX."



They only cost 10 bucks each but I bought 2 and money is money...

I'll see if the template boards have the interfaces I need for communications...

I'll also try to discover more about "porting" and how hard it is to implement.



Thanks again for all your help.

Regards,

Rupert
