NUCLEO-H7A3ZI-Q + X-NUCLEO-GFX02Z1 + TouchGFX

[PhilZalkin]

Good morning,

For my new project, I would like to use these 2 development cards.

Has anyone already configured these cards (.IOC) or an example?

Thank you in advance for your help.

[Mohammad MORADI ESFAHANIASL]

Hello @PhilZalkin ,

There are plenty of guidance and documentation on how to start your custom project with TouchGFX.

You can start the procedure by following these documents:

• Board Bring Up
• Abstraction Layer Architecture
• Enabling TouchGFX Generator
• FMC and SPI Display Interface

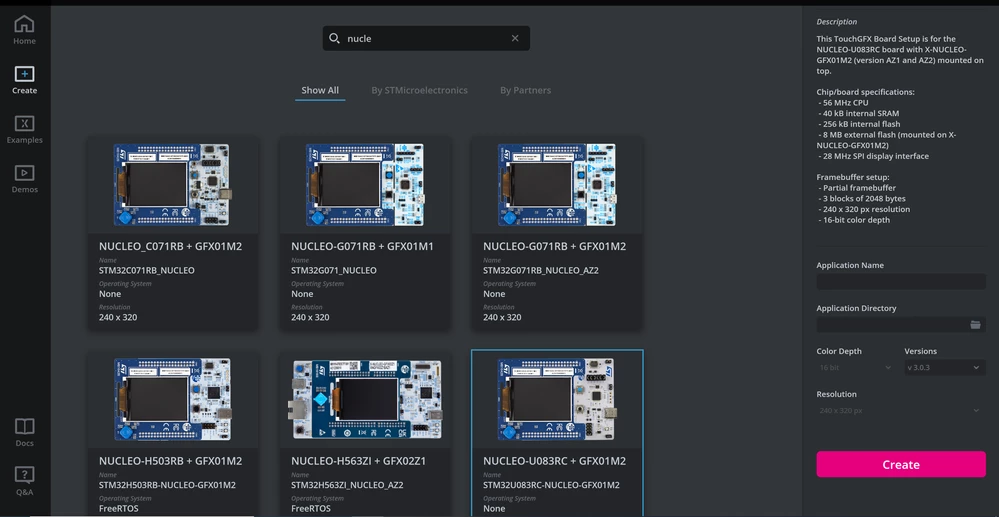

There are a number of TouchGFX Board Setups available that use SPI display interface that you can draw inspiration from to implement your project like: NUCLEO-G071RB, NUCLEO-U083RC, and etc.

NUCLEO TBSs

I hope this helps you

[PhilZalkin]

Thank you Mohammad,

I will try to configure the development board with FMC mode (8 bits) with the NUCLEO-H563ZI example.

I will come back to you if I have any problems.

Have a nice day

[Mohammad MORADI ESFAHANIASL]

You're very welcome :D

I recommend you select an 'Accepted Solution' for this thread, and open new ones for your new questions, so they will have better visibility on the forum with the information you provide.

Best regards,
