Programmatically set flex button wildcard alignment

[jchernus-fikst]

I have three buttons who's wild card text I change programatically. When I do so, the alignment of the text changes from centre-aligned to left-aligned.

Before:

After:

A) How do I prevent that from happening?

OR

B) How do I change the alignment to centre-aligned programmatically?

This is my code:

// Elsewhere:
typedef struct _Parameters {
 ThingA thingA;
 ThingB thingB;
 ThingC thingC;
} Parameters;

const touchgfx::TypedText ThingANames[] = {
 T_TEXTA,
 T_TEXTAA,
 T_TEXTAAA,
 T_TEXTERROR,
 T_TEXTNONE
};

// Here
void selectThingsView::setupScreen()
{
 selectTubingCustomViewBase::setupScreen();

 Parameters parameters = presenter->getParameters();

 buttonSelectThingA.setWildcardText(ThingANames[static_cast<int>(parameters.thingA)]);
 buttonSelectThingA.invalidate();
}

Thanks,

Julia

[jchernus-fikst]

My button settings, should they be helpful in debugging:



[ferro]

Hi @jchernus-fikst

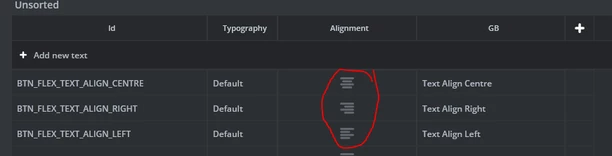

Not sure how you code works but the alignment is set in Text view, so your TypedTextIds in 'Before' pic have got different alignment from 'After'.

And I think this

const touchgfx::TypedText ThingANames[]

should be

const touchgfx::TypedTextId ThingANames[]

I understand now the 'const touchgfx::TypedText ThingANames[]'.



Maybe if you could share the example you quote.

[ferro]

This example might help

https://community.st.com/t5/stm32-mcus-touchgfx-and-gui/text-area-alignment-change/m-p/694806



Maybe this ...

https://community.st.com/t5/stm32-mcus-touchgfx-and-gui/add-function-setalignment-to-set-text-alignment-in-textarea/m-p/765075

... will be available soon. At the moment the alignment is hardcoded - even the structure members are const.

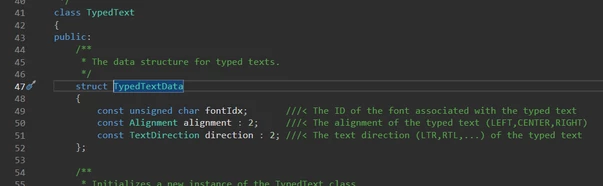

\touchgfx\TypedText.hpp

\generated\texts\src\TypedTextDatabase.cpp











[jchernus-fikst]

Thanks, @ferro , I appreciate your help.

Like Bhavya, I sometimes need the alignment left and sometimes centered. Unfortunately, I am using a button and not a TextArea.

I will do with a left-aligned prototype for now and fix this for the final product once the TouchGFX folks add programmatic alignment - I didn't know this work was slated, thank you for sharing!

Julia

[ferro]

No problem @jchernus-fikst

"I sometimes need the alignment left and sometimes centered. Unfortunately, I am using a button and not a TextArea."

Do not know what is the diffrence between Button vs TextArea. I'll have a look.

The problem seems to be in the text beeing wrogly aligned right ? Could you not have texts with all 3 alignments and use the correct one ?

[jchernus-fikst]

I can but it's messy and requires greater overhead to maintain, I'm okay waiting until they release the feature!

[ferro]

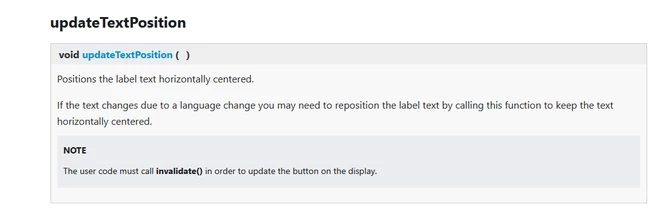

https://support.touchgfx.com/docs/api/classes/classtouchgfx_1_1_button_with_label#updatetextposition







[ferro]

Hi @jchernus-fikst

Attached is an example showing how to change Flex Button text.



The implementaion in
\gui\src\screen1_screen\Screen1View.cpp

void Screen1View
::changeText () // override final
{
 auto circular_next_ttid = []() -> touchgfx::TypedTextId
	{
 static std::array<touchgfx::TypedTextId, 3> ttIds
		{
			T_BTN_FLEX_TEXT_ALIGN_CENTRE ,
			T_BTN_FLEX_TEXT_ALIGN_RIGHT ,
			T_BTN_FLEX_TEXT_ALIGN_LEFT
		};
 static std::size_t index = 0;

 int result = ttIds [ index ];
 index = (index + 1) % ttIds.size();
 return result;
 };



	Unicode::snprintf
	(
		flexButton1Buffer,
		FLEXBUTTON1_SIZE,
		"%s",
		TypedText ( circular_next_ttid () ).getText()
	);


	flexButton1.invalidate ();

}





[jchernus-fikst]

@ferro I ran your example in the simulator but every time I pressed the button the text was centered - did it behave differently for you? I even tried making the button the width of the screen to ensure I wasn't missing the movement.

[ferro]

"I pressed the button the text was centered"

Yes, that is what you wanted right ?

You said: "How do I change the alignment to centre-aligned programmatically?"

The example shows that the text is always centered regardles of the TypedText alignemnt.



[MM..1]

Seems better is say about TGFX, that positioning system is as of 1980 era based on point 0,0

Perfect will be soon have in designer and library inteligent or AI functions, otherwise ...

Good example is LVGL

[ferro]

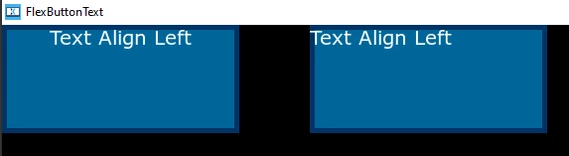

Improved example showing the difference between

	Unicode::snprintf
	(
		flexButtonPreserveAlignBuffer ,
		FLEXBUTTONPRESERVEALIGN_SIZE ,
		"%s" ,
		TypedText ( circular_next_ttid () ).getText()
	);

and

	flexButtonChangeAlign.setWildcardText ( TypedText ( circular_next_ttid () ) );
