TouchGFX and STM32f429

[PSEBA.1]

Hello all,

I created an application with a 800x480 FSMC 16 Bits TFT screen (SSD1963 driver) STM32F429 CPU, I would like to create my screens with TouchGFX instead of creating lines of code on CubeIde, is it possible? If so, what should I take into account in my Cube Ide project?, I did project tests with TouchGFX (blank screen) and during compilation, there are errors that I cannot correct, (my project works without TouchGFX files) can someone help me ?

Best regards

Seb



[INaee.1]

Hi @PSEBA.1



why you not directly interface LTDC instead of FSMC ?

LTDC provides direct and flexible support of TouchGFX.

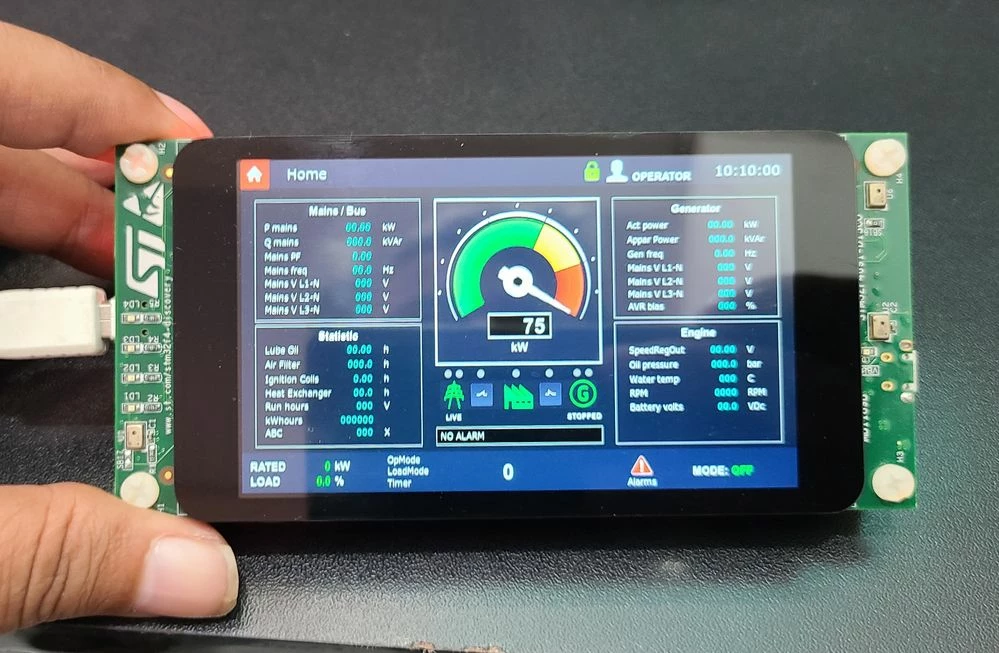

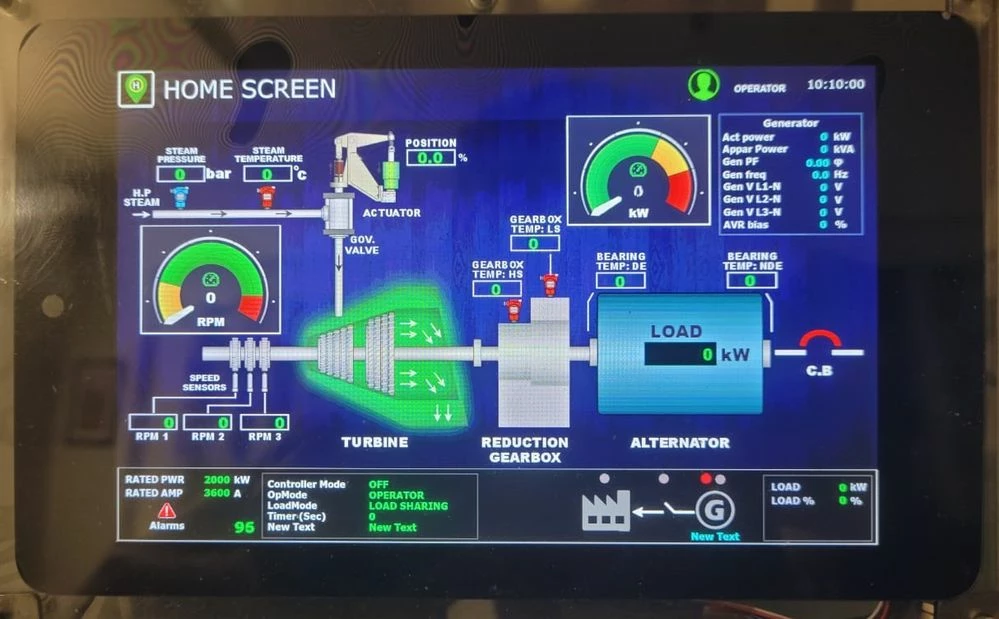

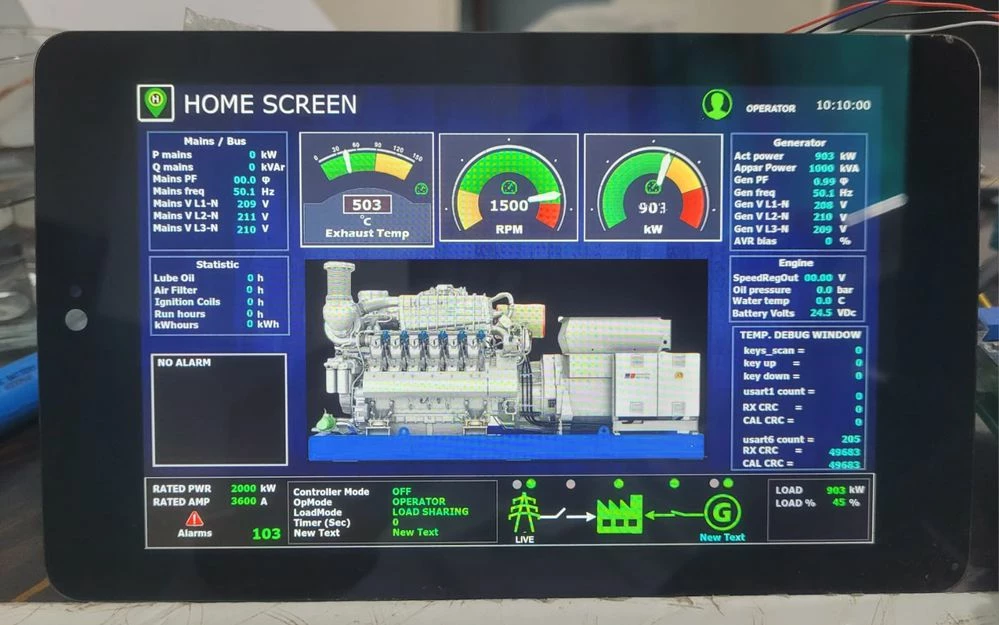

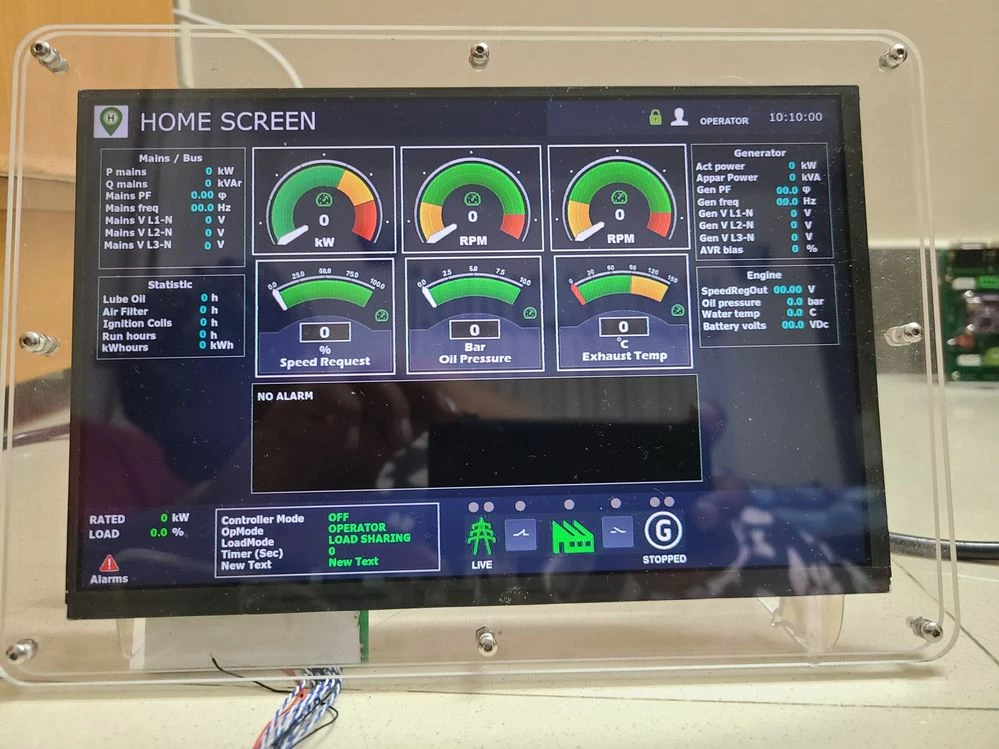

I did lot of developments across STM32H7 and TouchGFX with LTDC.

also I worked with TouchGFX with STM32F429 ...

I.Naeem

[PSEBA.1]

Hello Naeem,

I don't know LTDC yet but I will learn how to use it,

Thank you for your help.

Best regards.

Sébastien.

[INaee.1]

>From which coutry you are ?

[LouisB]

Hello @PSEBA.1 ,

You can refer to this document for LTDC in STM32 products https://www.st.com/resource/en/application_note/an4861-lcdtft-display-controller-ltdc-on-stm32-mcus-stmicroelectronics.pdf



BR,
