TouchGFX error

[Meenakshi]

I'm using STM32F423ZHT6 board.

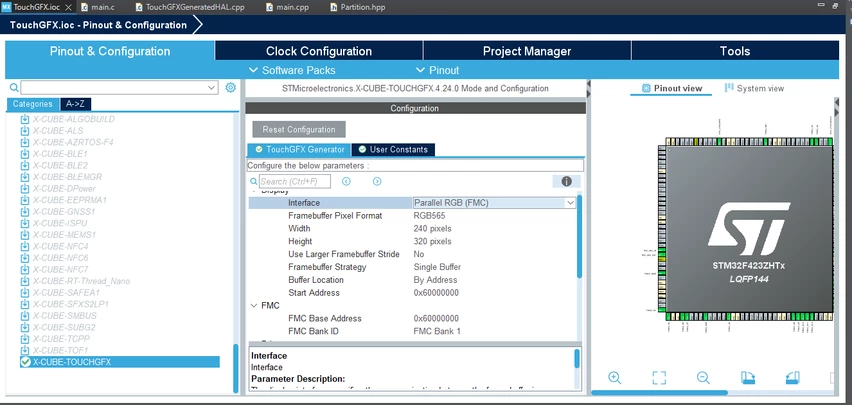

I setup the X-CUBE-TOUCHGFX

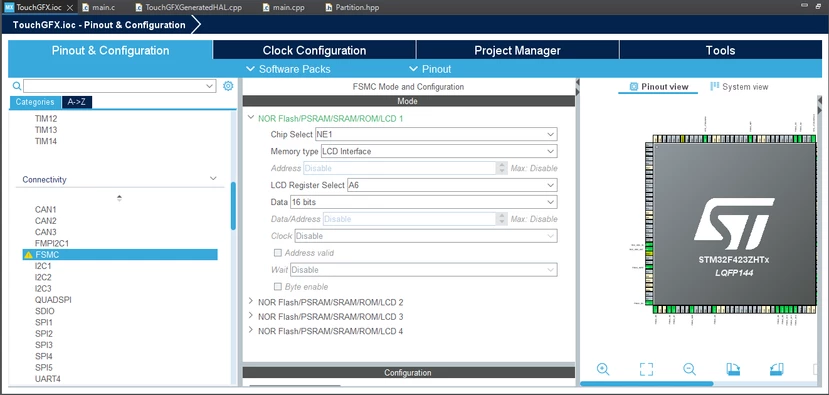

And FSMC for LCD interface:

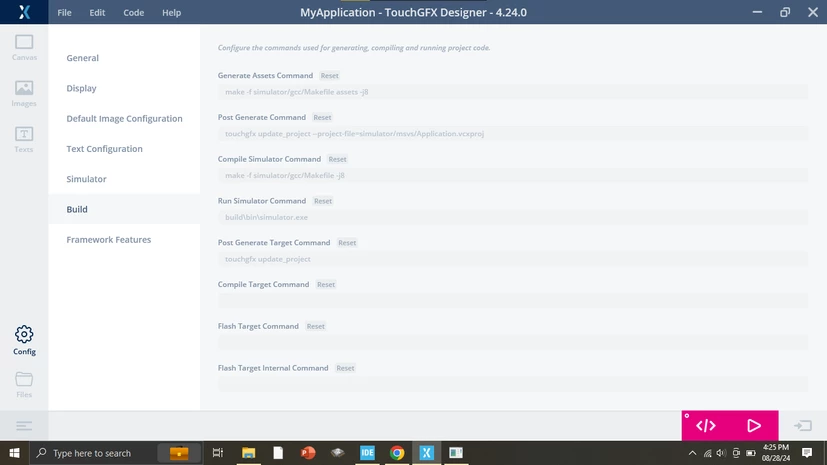

After generate a code. I opened TouchGFX -> ApplicationTemplate.touchgfx.part.

In TouchGFX, I created a boxWithBorder

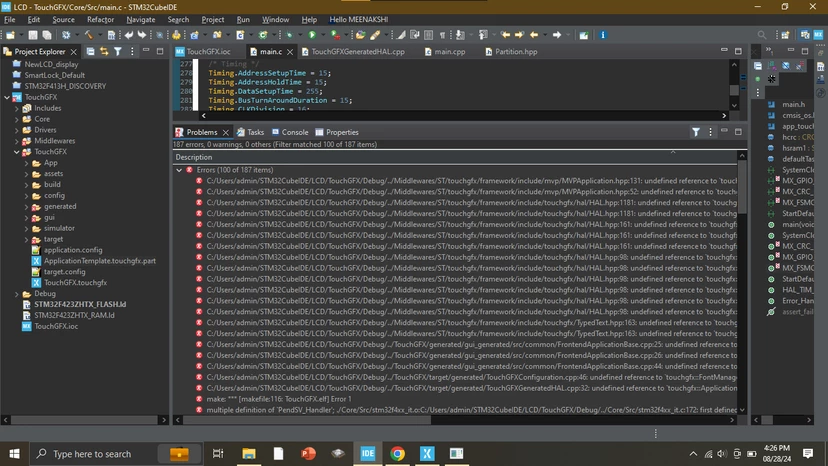

Then Generate code. After Build my project, It shows 187 errors.

Please any one help me to done a project?
If I made mistake correct me :smiling_face_with_smiling_eyes:



Regards,

Mee

[LouisB]

Hello @Meenakshi,

Could you post what you have in  :

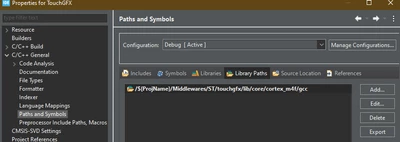

• your project properties ->c/c++ general -> paths and symbols ->library paths

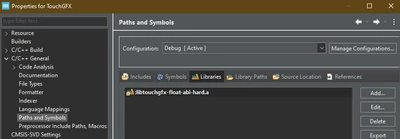

• your project properties ->c/c++ general -> paths and symbols ->libraries

Best regards,

[Meenakshi]

Thanks for your reply @LouisB. I solved the max errors with the help of https://community.st.com/t5/stm32-mcus-touchgfx-and-gui/how-to-solve-undefined-reference-errors-during-building-a/td-p/98276

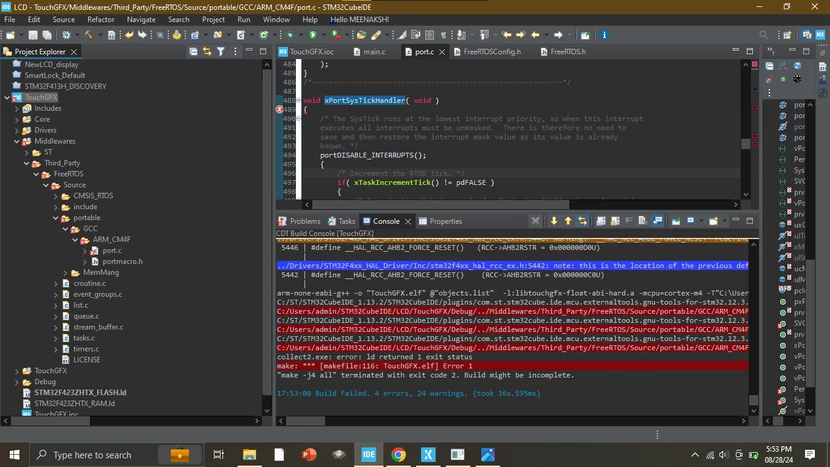

But still I got some errors:

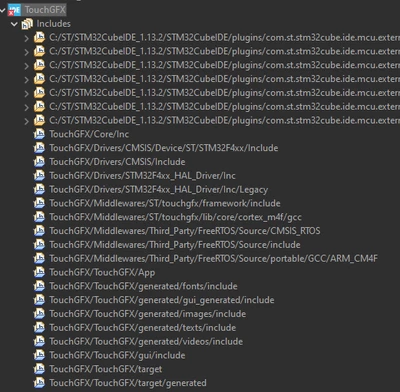

There are my includes







[LouisB]

Hello @Meenakshi ,

Did you regenerate in CubeMX and then regenerate in Designer ?
