TouchGFX Wildcard Issues displaying floating point data?

[Al-E-Bags]

Hi all.  I'm trying to display local floating point variable data via a button click in text area fields on my TouchGFX project screen.

I seem to be having an issue.   It appears that the fields are being populated with the format specifier that preceeds the variable in my code.  Here is my button function:

void main_screenView::s_type_bobbin_btn_click()
{
 // Test constant, floating-point variables for bobbin dimensions
 const float bobbin_length = 12.51;
 const float bobbin_width = 7.36;
 const float bobbin_height = 3.88;

 // Convert the float values to strings and store them in the buffers
 Unicode::snprintf(bobbin_length_data_areaBuffer, sizeof(bobbin_length_data_areaBuffer), "%.2f", bobbin_length);
 bobbin_length_data_area.invalidate();

 Unicode::snprintf(bobbin_width_data_areaBuffer, sizeof(bobbin_width_data_areaBuffer), "%.2f", bobbin_width);
 bobbin_width_data_area.invalidate();

 Unicode::snprintf(bobbin_height_data_areaBuffer, sizeof(bobbin_height_data_areaBuffer), "%.2f", bobbin_height);
 bobbin_height_data_area.invalidate();
}

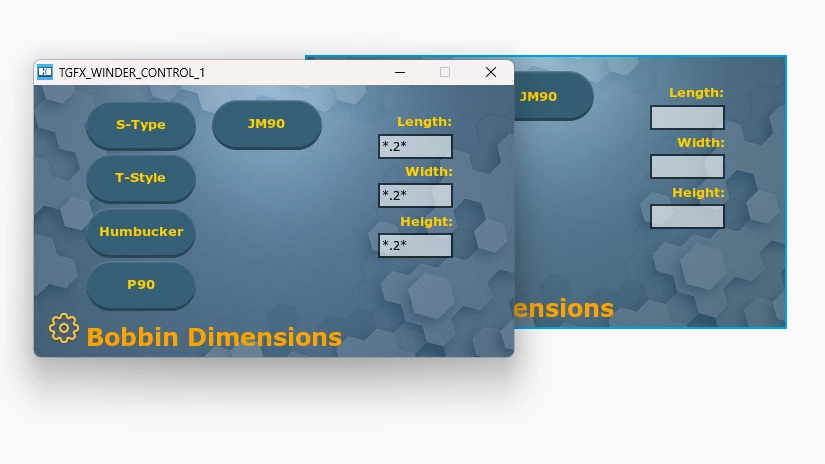

Here is the result of the button click (using the asterisk as a fallback character):

I have tried multiple ways to try to correct this behaviour without success.  If anyone can shine a light on my errors/issues, I would be exteremely appreciative.  Thanks



[MM..1]

Solved: how to display the value in float using snprintf? - STMicroelectronics Community

[mƎALLEm]

Hello,

Use snprintfFloat instead of snprintf

Refer to: https://support.touchgfx.com/docs/api/classes/classtouchgfx_1_1_unicode

[Al-E-Bags]

Yay! So simple.  Thanks for the super quick response! Fixed it.
