Hello,

I'm currently learning how to use an STM32H7B3I-EVAL, I'm just starting out. I'm trying to debug a simple TouchGFX project with only a slider with STM32CubeIDE.

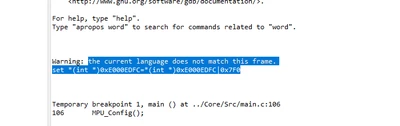

The problem is that when debugging I get a warning:

Warning: the current language does not match this frame.
set *(int *)0xE000EDFC=*(int *)0xE000EDFC|0x7F0



I use : TouchGFX 4.20

           CubeIDE 1.9

Does anyone have an explication please?

Best answer by Mohammad MORADI ESFAHANIASL

Yes, Swipe Container has a member function called getSelectedPage() that returns the page that is currently displayed.

You can use handleDragEvent(const DragEvent& Event) to detect when the container is swiped, so you can change your text. For instance:

void Screen1View::handleDragEvent(const DragEvent& Event)
{
 Screen1ViewBase::handleDragEvent(Event);
 uint8_t pageNumber = swipeContainer.getSelectedPage();

 switch (pageNumber)
 {
 case 0:
 //Update the text for the first page
 break;
 case 1:
 //Update the text for the second page
 break;
 case 2:
 //Update the text for the thrid page
 break;
 default:
 break;
 }
}

I hope this helps you!

1 reply

M
Mohammad MORADI ESFAHANIASL
ST Employee
August 6, 2024

Hello @rozeelc,

I tried to replicate the project you have, but I didn't encounter the issue you mentioned.

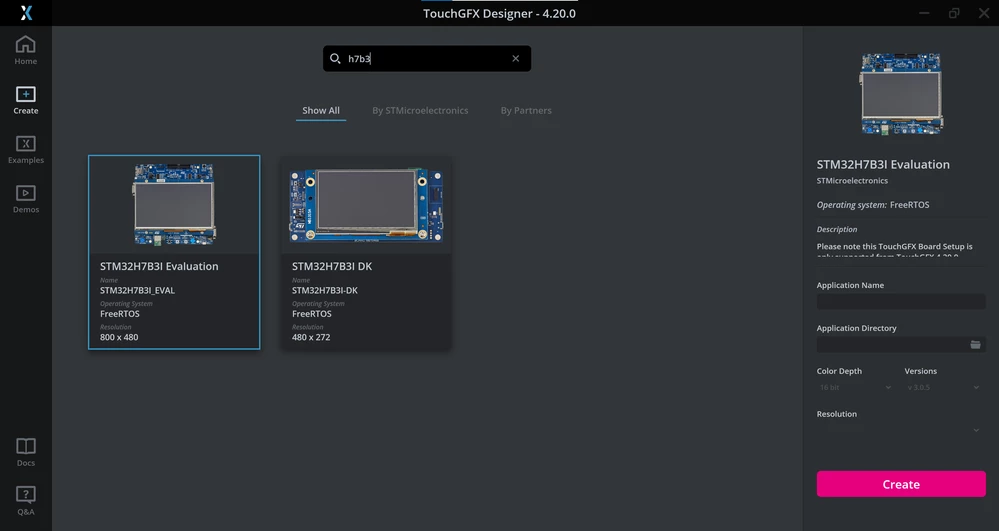

Are you using the available TouchGFX Board Setup (TBS) for STM32H7B3I-Eval?

TBS for STM32H7B3I-EvalTBS for STM32H7B3I-Eval

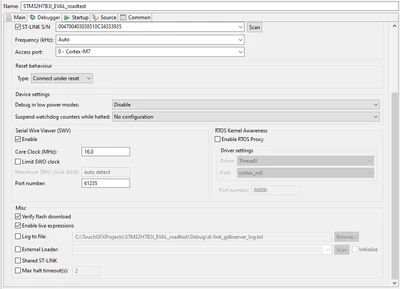

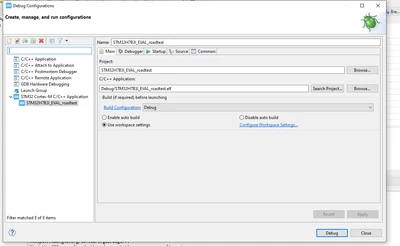

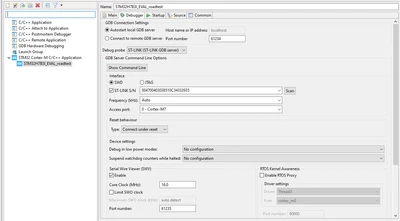

I also noticed that in your debugger, no External Loader is selected. Do you still manage to start the debugger?

R
rozeelcAuthor
Associate II
August 7, 2024

Hello @Mohammad MORADI ESFAHANIASL ,

I'm sorry for the inconvenience. I managed to resolve the initial problem by selecting an External Loader. However, I now have another question and I hope you can help me.

I apologize if there are any errors, I am French.

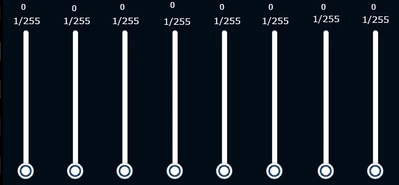

I am working on creating a mixing console with 512 sliders. I have created a page with 8 sliders, and it is necessary to swipe to switch from one set of sliders to another. Above each slider, I want to display its value. My problem is that to display the value of the slider, I have to create a new interaction for each one.


I would like to know if TouchGFX can handle more than 512 interactions and if there is a simpler way to achieve what I want.

Thank you in advance for your help.

M
Mohammad MORADI ESFAHANIASL
ST Employee
August 7, 2024

I'm glad you fixed the first issue :D

To have a better architecture for your GUI, I suggest creating a Custom Container that contains the slider and a text area to show its value, then you can easily control the interactions inside the container.
Then, you can place your custom container instances inside a Swipe Container to accommodate all of them in a container that supports multiple pages.

I hope this helps you achieve what you need.
