aci_hal_write_config_data() usage

[xufl]

Hello,

I use STM32WB05KZ. Could you give me an example about how to store configuration data to NVM by aci_hal_write_config_data() function?

- When I tried to store to 0x00 (I used static randow MAC address), it returns 0 but the data is lost when the chip is rebooted;

- When I save to any other address (such as, 0x40), it always returns to 0x12.

Thanks a lot.



[Imen.D]

Hello @xufl

Use offset 0x2E and a 6-byte address for storing a static random MAC address with aci_hal_write_config_data().

Ensure you handle the NVM cache as required by the BLE stack for data retention.

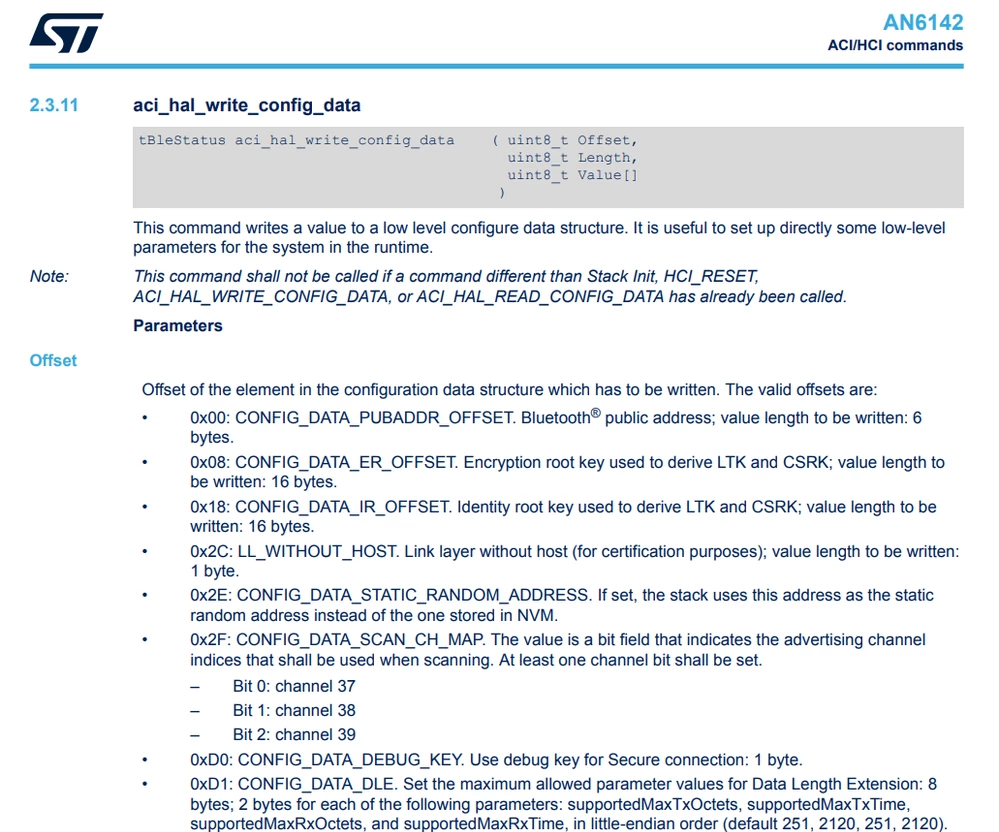

Refer to the PM0271 and AN6142 in section "2.3.11 aci_hal_write_config_data" for valid offsets and command usage.

[xufl]

Hi Imen.D,

Thanks for the reply. When I write to 0x2E, it returns 0x12.

I notice "This command shall not be called if a command different than Stack Init, HCI_RESET, ACI_HAL_WRITE_CONFIG_DATA, ro ACI_HAL_READ_CONFIG_DATA has already been called", so what is the formal solution to import our own MAC address (I am sure I used legal MAC address)?

For example, we run p2pService example but with our own MAC address. How to implement it?

Best Regards.

[xufl]

This issue is solved by:

- Use public address

- Write my MAC to 0x00 every time at boot up
