ADC in STOP2 mode

[ABN]

Hi ST Community



Is it possible to use the ADC polling/DMA/IT in STOP2 mode. The application is to develop a low power platform for ADC sampling and go back to sleep. After a certain period send this data over BLE.

[STTwo-32]

Hello @ABN

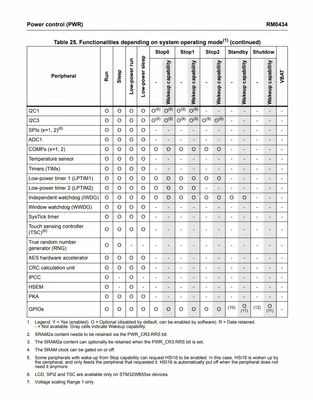

As you can see on the table table 25 of the RM0434, the ADC can work only in RUN, SLEEP, Low Power run and Low Power Sleep modes:

Best Regards

STTwo-32

[ABN]

Hi @STTwo-32

Thanks for sharing the table. I have couple more questions
1. Any necessary steps to be taken to put ADC block in low power mode

2. After waking up from STOP2 mode, any re-initialization of ADC to be done so that ADC can be used in RUN mode?

[STTwo-32]

For the first and a second question, i think t

You can follow the same steps as on this example.

Best Regards

STTwo-32

[ABN]

@STTwo-32

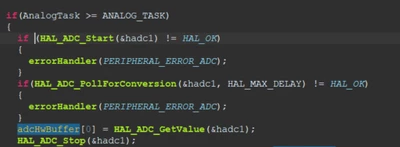

I went through the example. But I was not able to see the IOC configuration and the driver files. Instead of the approach given in the example, I used ADC Polling method

In this approach I'm getting HAL_ERROR in the HAL_ADC_PollForConversion
