Alternative Component Recommendation for NT2016SF-32M-END5875A

[rohithinthingstech]

I am developing a custom board using the STM32WL55JC17 and referencing the MB1389 development board. However, I am unable to source the NT2016SF-32M-END5875A crystal oscillator.

Could you please recommend a compatible replacement that meets the same specifications

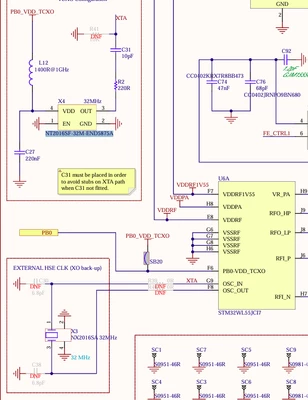

I have attached a schematic screenshot

[rohithinthingstech]

any update?



[STTwo-32]

Hello @rohithinthingstech

Sorry for my late replay. After checking internally (under internal ticket number 205223), I think the first candidate is the ECS-TXO-20CSMV-320-EN-TR.

Best Regards.

STTwo-32
