BLE OTA software options

  • September 23, 2024
  • 1 reply
  • 844 views

According to AN5247 I can use ST BLE Sensor to perform a BLE OTA firmware update.

I've added the reboot characteristic to my design, but how can I get ST BLE Sensor to recognize my custom board?

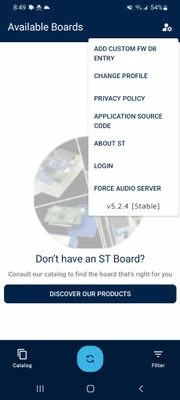

There appears to be an option to add a new design, but I haven't found documentation for it.




Best answer by Jcoll.1

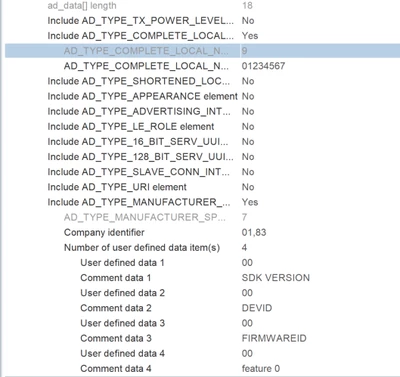

Make your board name be EXATLY 9 chars long and then configure the rest of the advertisement data like this:








Either this is a special case, or its what v1 of BlueST protocol looked like.  Unclear.  It doesn't match the description from the BlueST-SDK-Andoird page, but its close.  It DOES match what's in AN5247.  You can also find it in the BLE_p2pServer_ota example (search for 0x83).



1 reply

Jcoll.1
Jcoll.1AuthorBest answer
Associate III
September 26, 2024

Make your board name be EXATLY 9 chars long and then configure the rest of the advertisement data like this:








Either this is a special case, or its what v1 of BlueST protocol looked like.  Unclear.  It doesn't match the description from the BlueST-SDK-Andoird page, but its close.  It DOES match what's in AN5247.  You can also find it in the BLE_p2pServer_ota example (search for 0x83).
