Cannot run any example on Nucleo-WB55RG board

[nima.askari]

I cannot run any example on p-nucleo-stm32wb55 board.

i only receive this message on debug.



Wireless Firmware version 1.22.1
Wireless Firmware build 1
FUS version 2.0.0
>>== SHCI_SUB_EVT_CODE_READY

>>== SHCI_SUB_EVT_CODE_READY - FUS_FW_RUNNING



I updated FUS to 2.0.0 and wireless firmware.

[STTwo-32]

Hello  @nima.askari

Have you followed those warning will updating the Wireless stack after updating the FUS to the version V2.0.0:

• Warning 1: With FUS v2.0.0, Coprocessor Binaries can be installed only through the USB interface,
  Currently CubeProgrammer versions do not support “FW_delete” command when using the ST-Link interface. The next CubeProgrammer release will address this limitation.

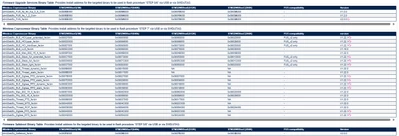

• Warning 2: For Coprocessor Binaries marked as “FUS_v2 only” in the Wireless Coprocessor Binary Table below, the “start address” provided by CubeProgrammer under “Firmware upgrade services” must be corrected as follows: start_address = (start_address - 0x4000). However, addresses provided in the table are correct

If not, it may be the reason behind this issue.

Best Regards.

STTwo-32

[nima.askari]

hello @STTwo-32 . thanks for your answer. but i did like that.

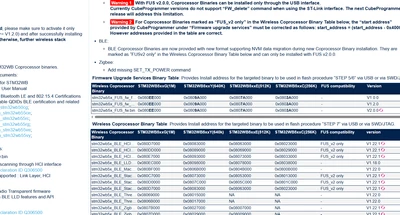

and another problem un html file.

file names are too long to show in the table

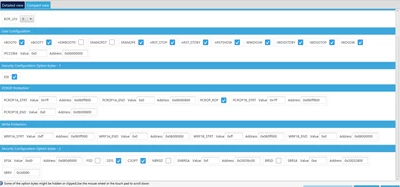

and where I can find default option bytes? It would be great if possible to set default in cubeprogrammer.

[nima.askari]

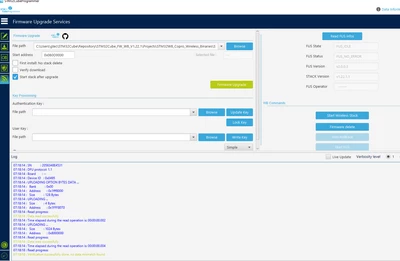

it worked for a short time. but after connecting stm32cubeprogrammer and see "Firmware Upgrade Service" and read FUS info, It is not working anymore. why it is not reliable. I did not anything. after programming flash again, it works. but it is not working again. :(



[STTwo-32]

After Clicking on the read or start FUS. Or update the Wireless binaries, could you please try to click on the "start Wireless Stack" button .

Best Regards.

STTwo-32

[nima.askari]

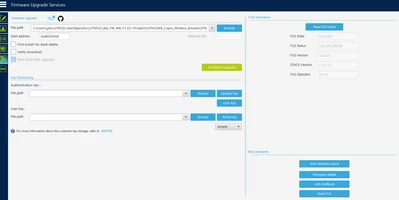

I did all steps again. Should I press "Start Wireless Stack" after updating stack? I pressed this time and now it is working.

But after pressing "Read FUS infos", it does not work anymore.

I think "Read FUS infos" erases my flash. but why

[STTwo-32]

After updating the stack, you may need to click on "Start Wireless Stack" button.

Best Regards.

STTwo-32

[nima.askari]

And please answer my last question. I want to send data with maximum data rate. In the folder i have seen BLE_DataThroughput, But it does not have cube config file. how I can configure in cubemx?
