Connecting the NUCLEO-WB05KZ to STM32CubeMonitorRF

[ljm]

Hello,

I'm using the board STM32WB05KZ and i installed STM32CubeMonitorRF to connect to the baord (Mode BLE)

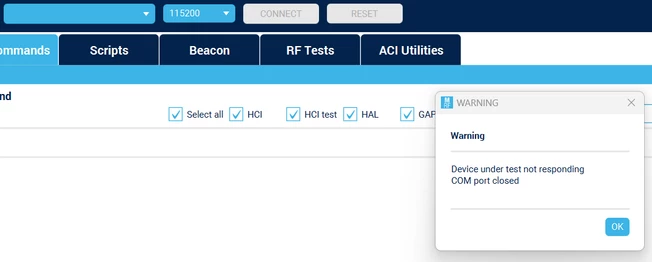

But i received a notification that i can't connect to the board



[STTwo-32]

Hello @ljm

Could you please try to follow those steps:

1. Upload the BLE_TransparentMode.hex to your board.
2. Open the STM32CubeMonitor-RF PC tool and set the com port to the one of your board.
3. Set the baudrate to 921600
4. Click on Connect.

That should work fine.

Best Regards.

STTwo-32



[ljm]

Hello

thanks for relying

it works thank you very much.

one last question please here why "Get RSSI" is locked ? i want to get the RSSI value

thanks
