How to check memory usage from output file that compiled with SW4STM32 IDE (System Workbench for STM32)?

[jirdom]

I would like to know percentage of memory usage of the ROM and the RAM of the microcontroller from output file.

note **

I use source from application example named BLE_p2pClient under the Projects directory of the STM32Cube_FW_WB_V1.2.0 FW pacakge.

[Markus GIRDLAND]

You can access that information from the Build Analyzer view.

If you search for "Build Analyzer" in the Quick Access search bar you can open that view.

[jirdom]

Hi Markus GIRDLAND

I installed SW4STM32 version 2.9 which download from "https://www.st.com/en/development-tools/sw4stm32.html"

I tried to search " Build Analyzer" in the Quick Access search bar but not found.

[Markus GIRDLAND]

The Build Analyzer is only available in STM32CubeIDE, not in SW4STM32.

I misunderstood because the forum post has the tag/topic "STM32CubeIDE" so I thought that was the tool in question.

[IKotz.1]

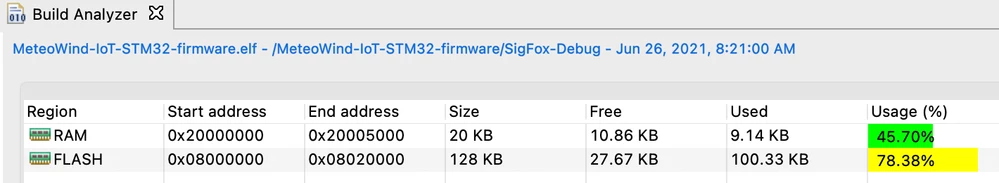

Same as Markus, but accessed different way: Window/Show View/Build Analyzer (I use STM32CubeIDE 1.6.1)

[Intector]

Hey,

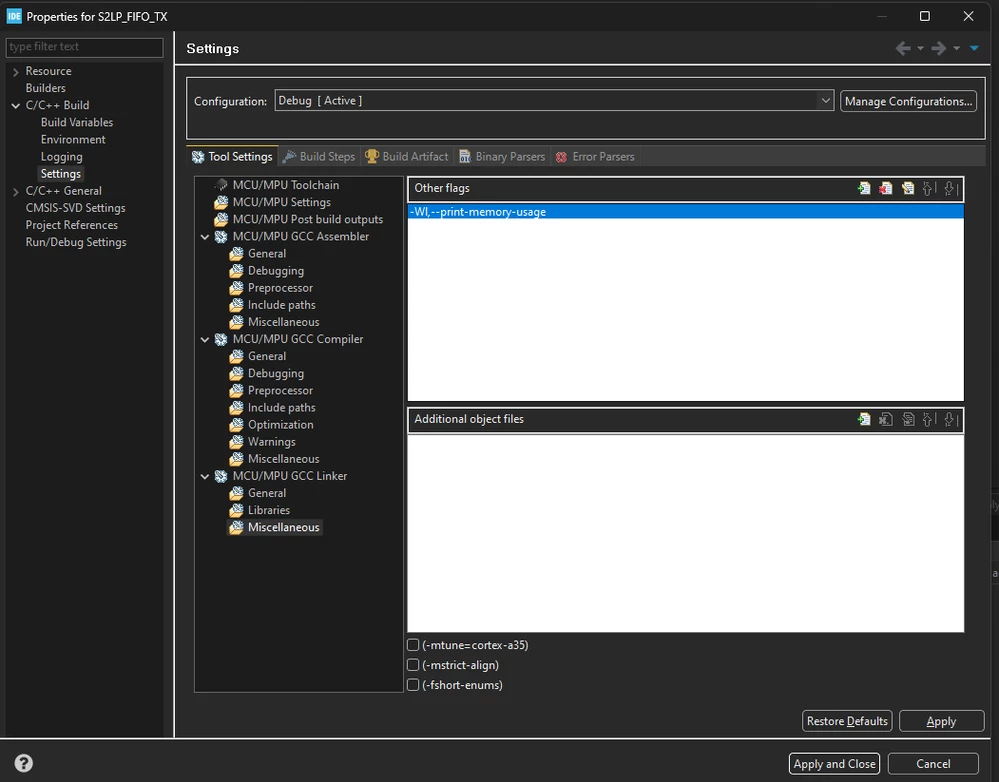

you could add the linker option -Wl,--print-memory-usage to your project properties.

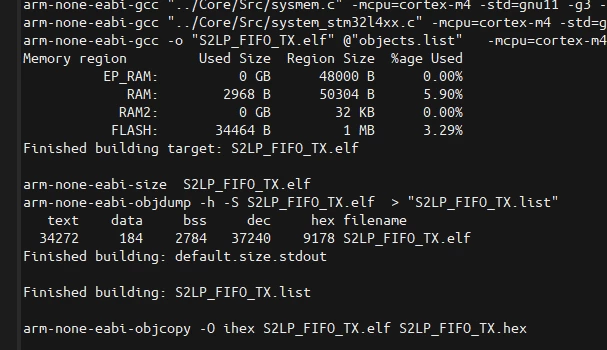

This will produce an output that looks something like this:
