Issue connecting the NUCLEO-WB05KZ to the STM32CubeProgrammer

[ljm]

Hello

thanks for replying.

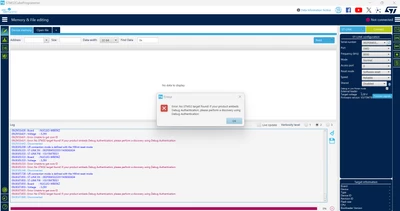

to upload the Hex file i used STM32Programmer, but when i connect the borad via USB cable to my PC i receive un error :

Best Regards.

[STTwo-32]

Hello @ljm

Could you please try to follow this procedure:

• If it is the first time you will program the board, follow the recommendation of the note on the chapter 7.12 of the STM32WB05 Nucleo-64 board (MB1801 and MB2032) - User manual and don't forget to click on the reset button before connecting to the STM32CubeProgrammer if the LD2 is still toggling.
•  If you are used to program the board, try to fit the jumper on both pins 7 and 5 on the CN3 of the board and connect the board using the Hot plug mood

PS: Make sure to use the STM32CubeProgrammer V2.19.0



Best Regards.

STTwo-32

[ljm]

Hello,

Thank you for replying

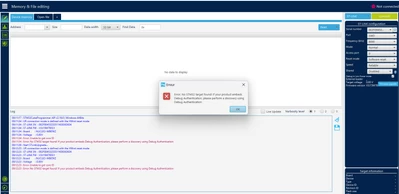

i have an issue to connect the board to STM32Cube programmer

thanks

[STTwo-32]

Have you followed the steps I've mentioned in my previous post.

Best Regards.

STTwo-32
