MLPF-WB-01D3 Ultra Librarian Footprint Wrong?

[rs-dp]

Dear ST members,



I downloaded the MLPF-WB-01D3 footprint from Ultra Librarian and imported on Altium. The script loads 3 versions of the footprint but none of them matches the recommended dimensions found on the chip datasheet, specifically on the paste and solder mask layers.



Can you send me the correct footprint, or can you approved the attached one please?



I already had issues with MLPF-WB55-01E3 were my board failed the spurious emission test and to this day I still have no idea what was failing on my design. I don't really want to this unpleasant experience again.

[STTwo-32]

Hello @rs-dp

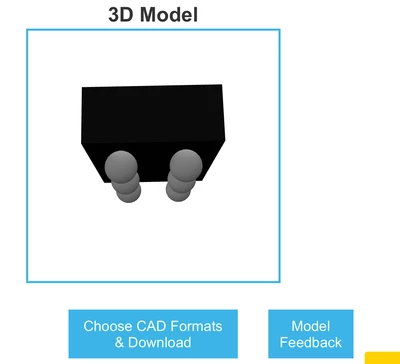

For issues on the Ultra Librarian footprint of a component. You have to contact Ultra Librarian through the Model Feedback button. Available on the component page:

Your feedback will be sent to the Ultra Librarian experts and you can ask them for a newer or a compatible version.

Best Regards.

STTwo-32
