No BLE mesh example code is available for STM32WB5mm-DK boards

[RSakh.1]

New to STM32WB.

I have 2 units of STM32WB5mm-dk boards. On these boards want to run BLE mesh code.

But when i checked in STM32WBCubeMX no BLE mesh example code for STM32WB5mm-dk.

Can some one help me in getting example code so that i can start development.

Generic onoff code would fine to start ?

[Imen.D]

Hello @RS.8akhare​ and welcome to the Community :)

You can have a look at the  AN5292  and AN5289 How to build a wireless and Bluetooth Low Energy mesh application for STM32WB.

You can also start your application from CubeMX tool, for that please have a look at the attached document.

You'll probably get inspired from BLE Mesh examples within STM32CubeWB package: \Projects\P-NUCLEO-WB55.Nucleo\Applications\BLE\

You have also these resources:

• MOOC - STM32 BLE MESH Introduction demonstrates how to build Bluetooth Mesh network with STM32WB using STM32WB55 Nucleo pack and its software package.
• STM32WB BLE Training
• Videos STM32WB Workshop (with Hands-On) to get fimiliar with the BLE and add BLE functionality.

Please mark my answer as best by clicking on the "Select as Best" button if it helped :)

If you still have issues, don't hesitate to come back to the Community and adding more details to your post.

Imen

[RSakh.1]

Thanks for reply @Imen DAHMEN​

I am going through the links and information you provided, all seems related to Nucleo board.

May be I have put my question in wrong way.

We have STM32WB5MM-DK discovery board. as you said I can see BLE Mesh lighting code under Nucleo board, but when I search same for STM32WB5MM-DK discovery board, there is no BLE mesh related code available.

So my question is, is it possible to port BLE mesh code from NUCLEO board to STM32WB5MM-DK discovery board in STMCubeIDE / Keil uV ?

If possible, what the changes need to be done so that I can run BLE mesh code on STM32WB5MM-Dk Discovery board.

Thanks !!

[Imen.D]

Hi @RS.8akhare​ ,

Is it possbile to port BLE mesh code to STM32WB5MM-DK discovery.

I recommend you this workshop: STM32WB Bluetooth Mesh Workshop, this will help you hrough hands-on exercises to develop Bluetooth Mesh using STM32WB5MM-DK board.

Imen

[RSakh.1]

Hi @Imen DAHMEN​

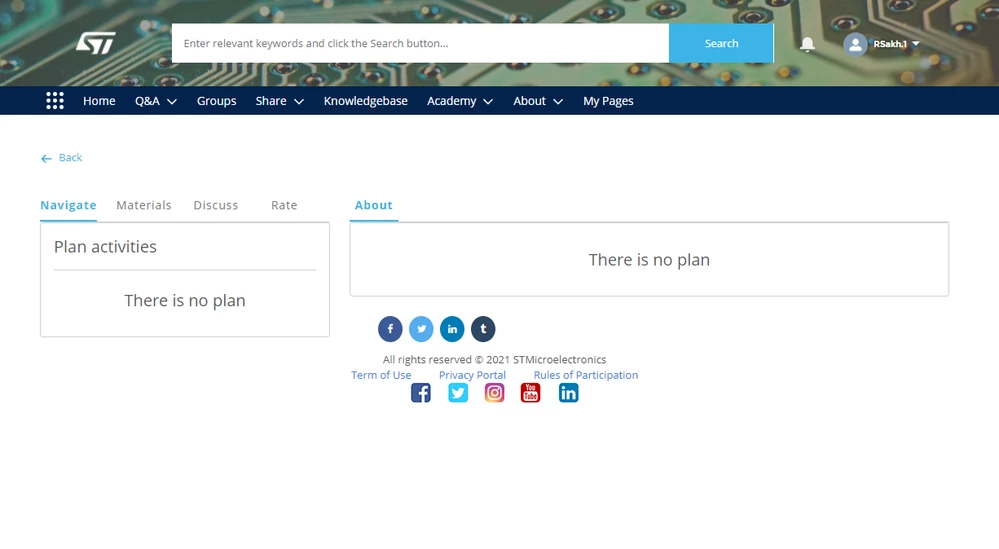

When click on "Access the Course" I don't see any material in it, below is screen shot. I have log-in credentials registered on STM.

 Is there anything I am missing here ??

[Rituraj]

Inside the firmware file check for projects and then choose the folder with stm32wb5mm-dk written. In this file there are two examples related to mesh.. Just try to do right provisioning once the code has been flashed .
