NUCLEO-WBA65RI Standby current higher than expected

[JPortilha]

Title edited to clarify that this refers to a NUCLEO-WBA65RI board.

---

Hello,

I am currently using STM32WBA65RI with Standby mode. According to datasheet, this mode should be able to reach 120nA current consumption with the 16 GPIO wake-up pins (RTC disabled). However running the Standby example and shutting down the RTC I am still getting 3uA of current consumption. What can I do to decrease the current consumption up to the nanoA?

Best regards.

[Andrew Neil]

Please give full details of your test setup - schematic, code, etc.

See: How to write your question to maximize your chances to find a solution

[JPortilha]

Hello,

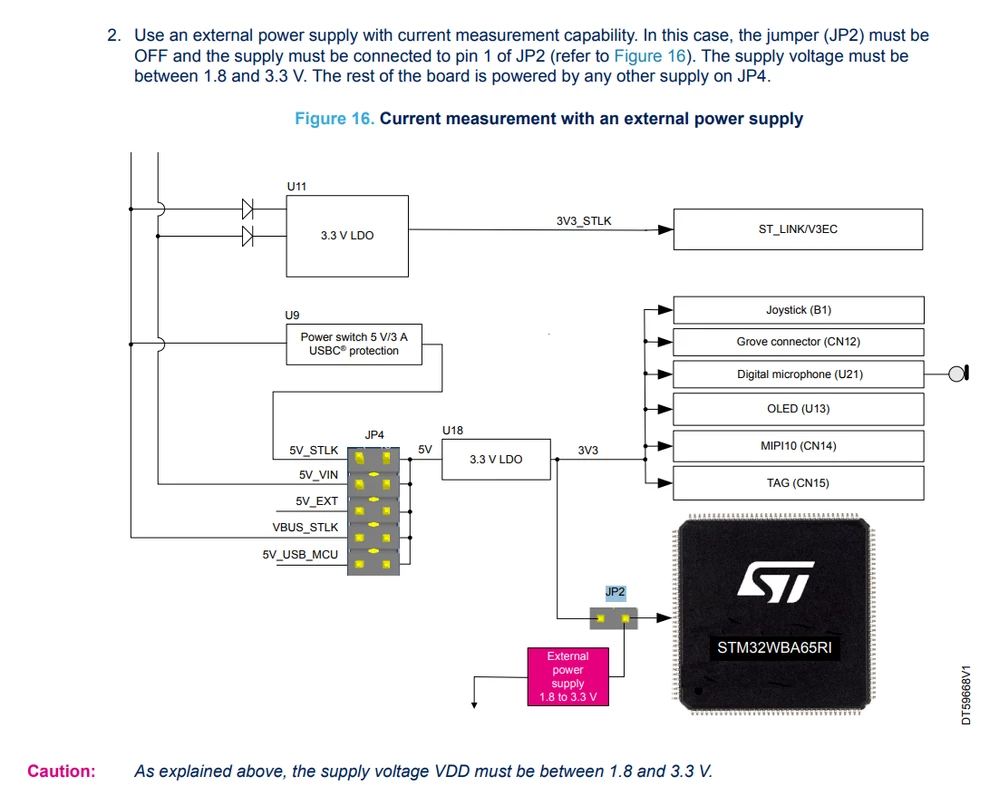

I am using the STM32WBA65RI Dev Kit. For current measurements, I am powering the board with an external supply that includes current measurement capability, connected directly to pin 1 of JP2. The JP4 jumper is removed.

According to the reference manual (Table 54), there are expected current consumption values for Standby mode (with RTC enabled and IWDG disabled).

I performed four tests with the following configurations:

• RTC clocked by LSI and LSI/128
• ULPMEN = 1
• VDD = 1.8 V and 3.3 V

However, my measured current is consistently higher than the specified values:

• LSI/128, 1.8 V → Expected: 210 nA, Measured: 658 nA
• LSI/128, 3.3 V → Expected: 510 nA, Measured: 989 nA
• LSI, 1.8 V → Expected: 330 nA, Measured: 835 nA
• LSI, 3.3 V → Expected: 790 nA, Measured: 849 nA

My code is based on the ST example “Standby with RTC”, with the addition of enabling the ULPMEN bit in the PWR_CR1 register.



int main(void)
{
 HAL_Init();
 SystemClock_Config();
 MX_GPIO_Init();
 MX_ICACHE_Init();
 MX_RTC_Init();

 SystemPower_Config();
 CLEAR_BIT(DBGMCU->SCR, DBGMCU_SCR_DBG_STANDBY);
 /* Check and handle if the system was resumed from StandBy mode */
 if(__HAL_PWR_GET_FLAG(PWR_FLAG_SBF) != RESET)
 {
 /* Clear Standby flag */
 __HAL_PWR_CLEAR_FLAG(PWR_FLAG_SBF);
 }

 SET_BIT(PWR->CR1, PWR_CR1_ULPMEN);

 /* Insert 5 seconds delay */
 HAL_Delay(5000);
 /* Enable wakeup line 7 for RTC */
 HAL_PWR_EnableWakeUpPin(PWR_WAKEUP_PIN7_HIGH_3);

 HAL_RTCEx_DeactivateWakeUpTimer(&hrtc);
 /* Clear all related wakeup flags */
 __HAL_PWR_CLEAR_FLAG(PWR_WAKEUP_ALL_FLAG);
 /* Re-enable wakeup source */
 if (HAL_RTCEx_SetWakeUpTimer_IT(&hrtc, 0xFFFF, RTC_WAKEUPCLOCK_RTCCLK_DIV16, 0) != HAL_OK)
 {
 Error_Handler();
 }
 /* Enter the Standby mode */
 HAL_PWR_EnterSTANDBYMode();

 Also, my goal was to sleep for 1 minute, and then wake-up and do BLE advertise for 10 seconds. And so on. How can I integrate the BLE stack here to accomplish this?

Best regards.

[Andrew Neil]

---

@JPortilha wrote:

I am using the STM32WBA65RI Dev Kit. .

---

Which one - NUCLEO-WBA65RI or STM32WBA65I-DK1 ?



You need to carefully check the schematics for all potential sources of leakage - in particular, connections to the ST-Link.

Your difference is on the order of only 400nA - it really doesn't take much leakage at all to make that !

[JPortilha]

I am using the NUCLEO-WBA65RI. According this this image, I am powering the MCU directly so the ST-Link below should be totally disconnected (I assume)

Also, do you have any insights on how to integrate BLE advertise with this standby mode?

[JPortilha]

From the schematics analysis I could not figure out any point to where the current could be leaking. Can it be a software problem? Are the results presented on the datasheet accurate enough?

BR.

[Andrew Neil]

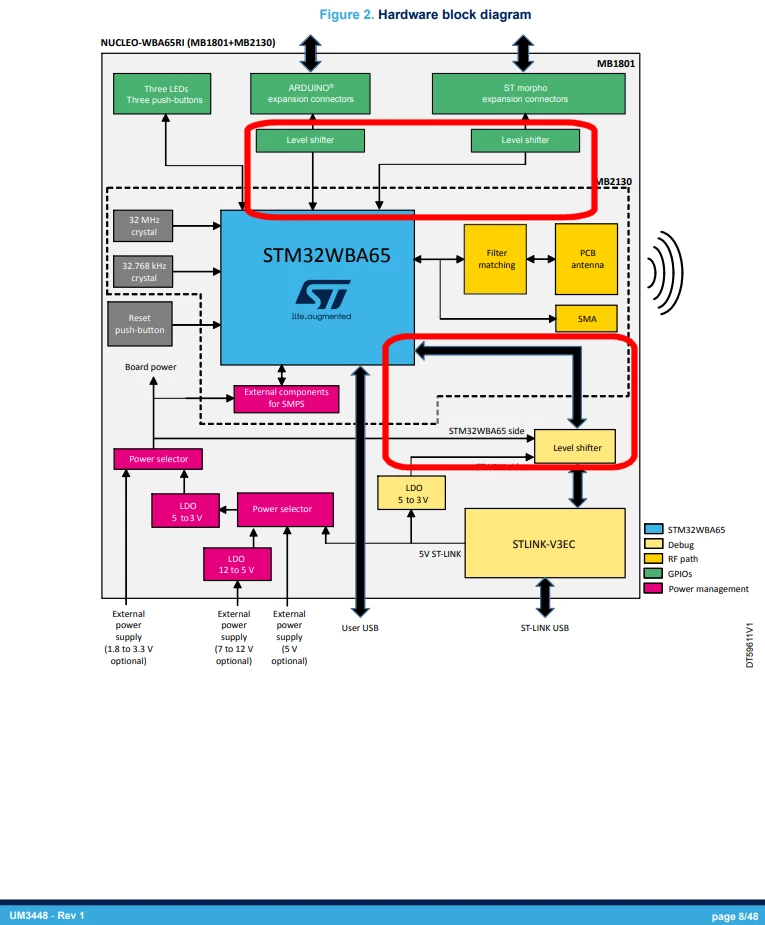

What about all these connections (from the User Manual):

https://www.st.com/resource/en/user_manual/um3448-stm32wba-nucleo64-board-mb1801-and-mb2130-stmicroelectronics.pdf#page=8



Again, it's only tiny amounts of current you're talking about!



Maybe try removing the MCU RF board (MB2130) from the mezzanine board (MB1801) ?

[JPortilha]

Hello, I have removed the MCU board (MB2130), and I am powering up via CN4 pins. I have shunted the necessary solder bridges underneath the board I got these results while in stanby mode.

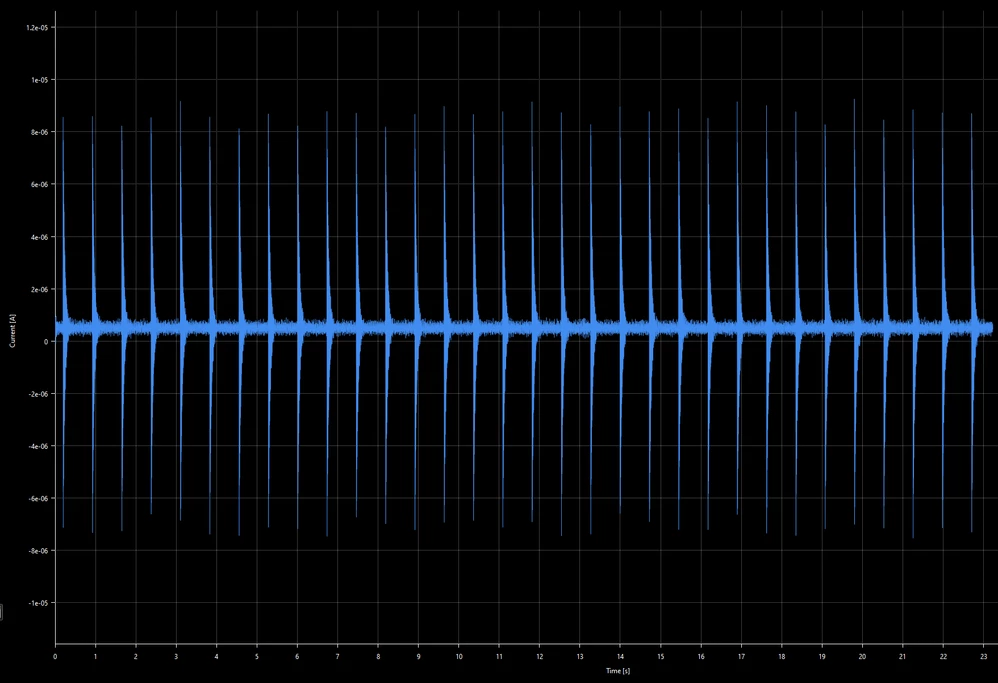

I can´t figure out what are those negatives spikes. The average value should be around the nano amps scale, but again not the 330nA at 1.8V specified in the datasheet.

BR

[JPortilha]

I have already tried that.. in that case I connect Vdd into PIN1 of CN4 and GND into PIN3 of CN4.
