Powering a peripheral using STM32WB5MM-DK

  • September 3, 2024
  • 2 replies
  • 908 views

This might be a dumb question but can the STM32WB5MM-DK power a 3.3V peripheral device?

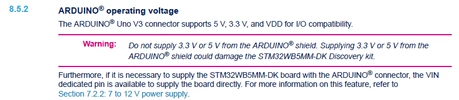

This part of the user manual makes it sound like the whole Arduino shield should not be used to supply any sort of power:

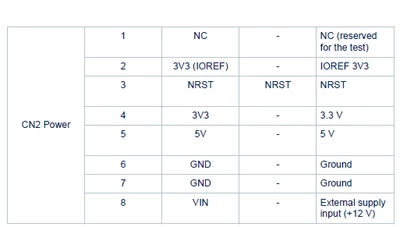

Yet according to this table, pin 4 should be able to do what I need




Best answer by STTwo-32

Hello @Hichamm

"Do not supply 3.3 V or 5 V from the ARDUINO® shield. Supplying 3.3 V or 5 V from the
ARDUINO® shield could damage the STM32WB5MM-DK Discovery kit" means that you should not supply the STM32WB5MM-DK board with the ARDUINO connector. But you can use the 3V3 pin or the 5V to supply your sensors for example.

Best Regards.

STTwo-32



2 replies

STTwo-32
STTwo-32Best answer
Technical Moderator
September 4, 2024

Hello @Hichamm

"Do not supply 3.3 V or 5 V from the ARDUINO® shield. Supplying 3.3 V or 5 V from the
ARDUINO® shield could damage the STM32WB5MM-DK Discovery kit" means that you should not supply the STM32WB5MM-DK board with the ARDUINO connector. But you can use the 3V3 pin or the 5V to supply your sensors for example.

Best Regards.

STTwo-32



HichammAuthor
Associate II
September 4, 2024

Thanks, the wording made it quite misleading but it makes sense now.
