RF Section of STM32WB55RG

[yashvant]

hello Community

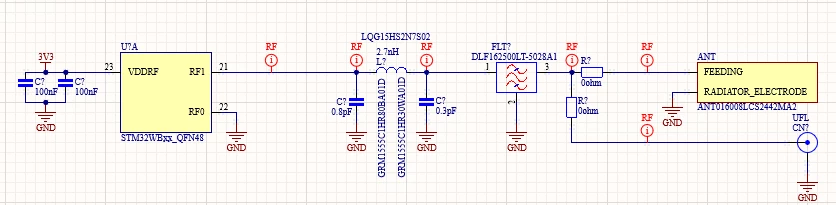

please help me  i am using STM32WB55RG please verify the schematics using Chip antenna and UFL

[STTwo-32]

Hello @yashvant

I’m not an expert on the RF design. This is not an easy task. If you want to make sure that your design is fine, I suggest you to contact a privet RF design expert to verify your design. Else, you can always refer to this mooc(include some application notes that can help too. And also link to the training in YouTube), the AN5290 and the AN5165 for RF Design.

Best Regards.

STTwo-32

[Andrew Neil]

See also:

https://community.st.com/t5/stm32-mcus-wireless/stm32wb55revx-custom-board-schematic-review/td-p/773414
