Setting up TouchSensing library

[Parry]

Hi there, I'm currently trying to setup the STM32_Touchsensing library.

I have already downloaded the library from

ST(https://github.com/STMicroelectronics/STM32CubeWB/blob/master/README.md#how-to-use).



How do I enable this Touch sensing library now that I have downloaded it



Thanks!



[STTwo-32]

Hello @Parry

So, the STM32_Touchsensingis a middleware that can be used with some STM32 MCUs. So, all you have is to open CubeMX, select an MCU or a board that you are going to use (as i can see is an STM32WB) and start your project. On the configuration panel of CubeMX m, go to middleware and enable the STM32_Touchsensing (you lay also have some settings to do for the middleware parameters).

Best Regards.

STTwo-32

[Parry]

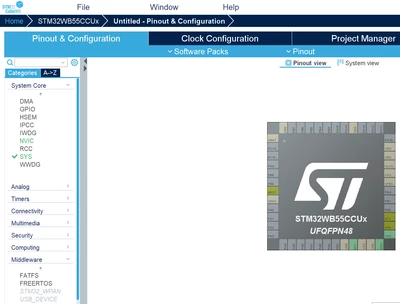

Hi there, I do not see an option to enable touch sensing for this MCU. It does appear to automatically be there for the

STM32F072RB MCU though.



Is there something I need to configure in order to get it to appear?



[STTwo-32]

It should be under middleware. It may be garyed. If so, please put you cursor on it and a message that tell you what you have to do before you can enable it.

Dont forget to use the last version of CubeMX (V6.12.0).

Best Regards.

STTwo-32

[Parry]

never mind, the STM32WB55CE does not have touch sensing capabilities.
