STM32CubeIDE debug with ST-Link V2

[MSand.1]

Dear All,

let me ask for your kind support.

I am able to debug a customized board equipped with STM32WLE micro by using the STM32CubeIDE program (Version: 1.3.0.20) with the connection to a ST-LINK V2 device.

On a second PC I installed the STM32CubeIDE program version1.15.1, I am able to build a running program on the same customized board. I did also the Debug Configurations

(the same parameters of the version 1.3.0.20) but I am not able to debug.



After the compilation I get this final message on the console

STMicroelectronics ST-LINK GDB server. Version 7.7.0
Copyright (c) 2024, STMicroelectronics. All rights reserved.

Starting server with the following options:
Persistent Mode : Disabled
Logging Level : 1
Listen Port Number : 61234
Status Refresh Delay : 15s
Verbose Mode : Disabled
SWD Debug : Enabled

Target no device found

Error in initializing ST-LINK device.
Reason: No device found on target.

Some seconds later a box appears with this further message

Error in final launch sequence:

Failed to execute MI command:
target remote localhost:61234

Error message from debugger back end:
localhost:61234: Connection timed out.
Failed to execute MI command:
target remote localhost:61234

Error message from debugger back end:
localhost:61234: Connection timed out.
localhost:61234: Connection timed out.

Could you kondly give me a piece of advice?

Best Regards,

Mario Sandri

[AScha.3]

Hi,

how you set the -connect- ?

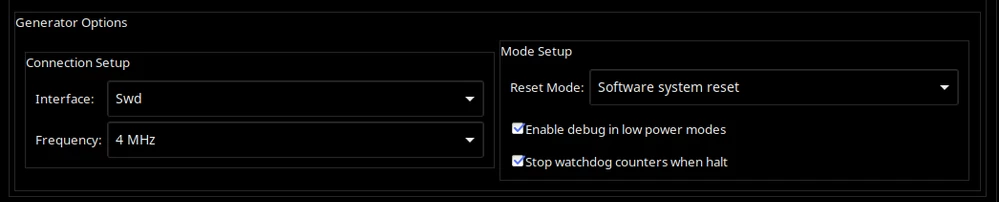

Try:

+

Can you connect to any other STM cpu ? (on other matching project, of course )

[MSand.1]

Hi Ascha.3,

thank you for your quick reply and suggestion.



Now my board debug works with interface SWD, Frequency (kHz): Auto, Connect under reset.



I connected only to my STM CPU, I do not have other CPU boards.

Best Regards,

Mario

[charan_3215]

Hi all,

This is my first project i have been working on,i installed stm32cube ide for first time.

 board:STM32H563ZIT6

I am have some  error while debugging.I want to debug the software.I don't have hardware.How do i debug it.

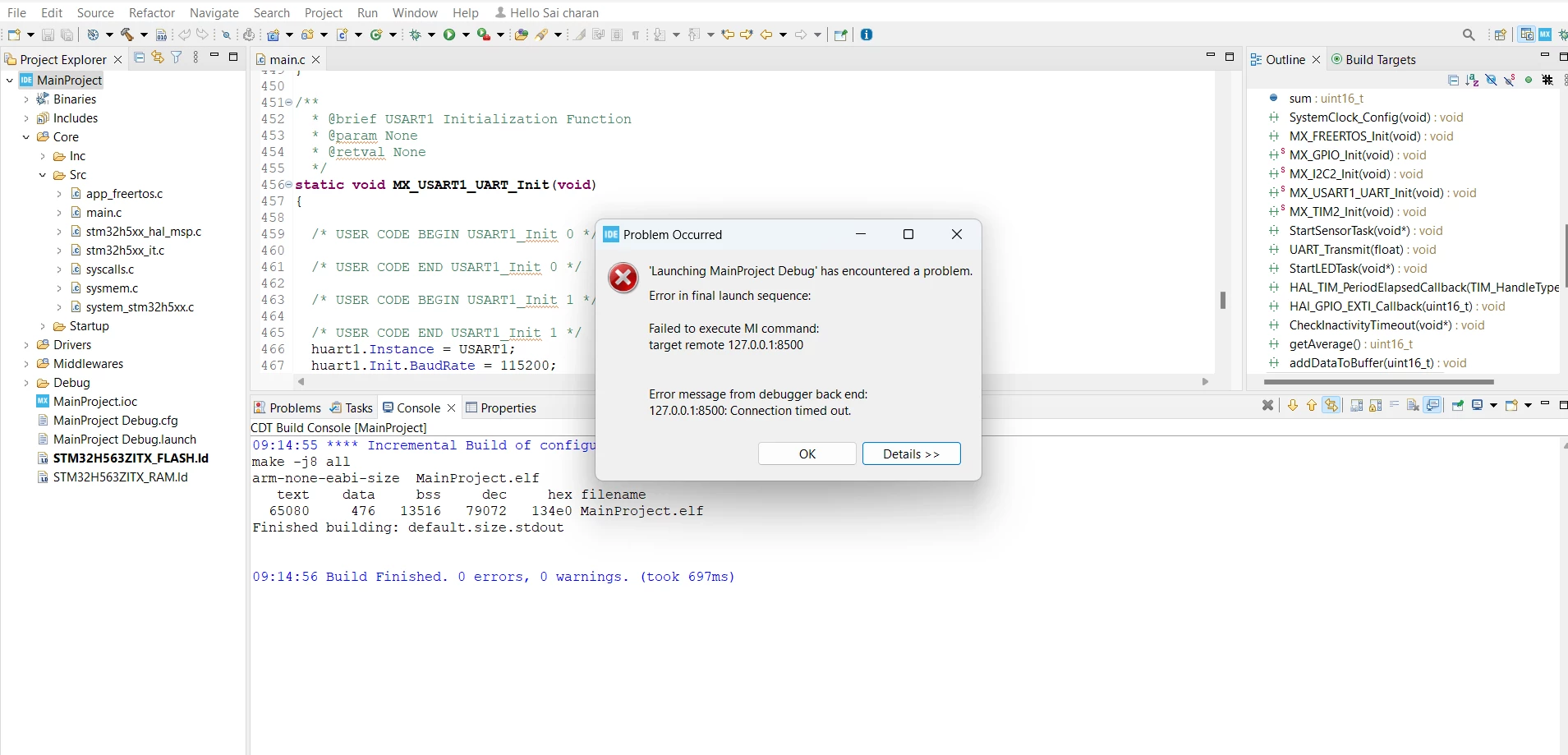

when iam trying to do,it is showing me error like this:



Error in final launch sequence:



Failed to execute MI command:

target remote 127.0.0.1:8500



Error message from debugger back end:

127.0.0.1:8500: Connection timed out.

Failed to execute MI command:

target remote 127.0.0.1:8500



Error message from debugger back end:

127.0.0.1:8500: Connection timed out.

127.0.0.1:8500: Connection timed out.

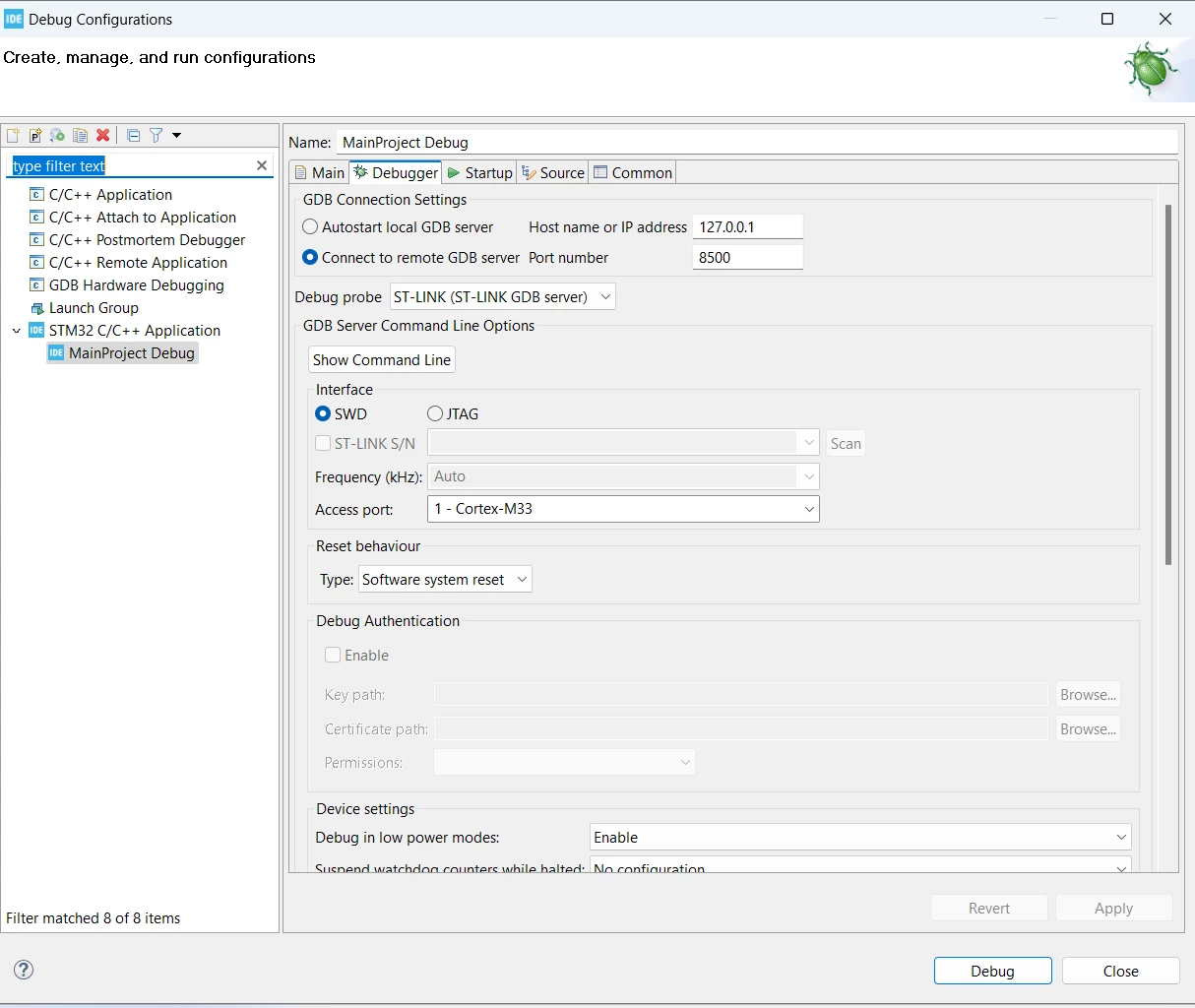

My debugger settings are like this:

Please give me solution for this error
