STM32WB05KZ POWER ANTENNA modification

[ljm]

Hello



For the Nucleo STM32WB05KZ board, the transmission power is normally 0 dBm by default (it can go up to 8 dBm).

Is it possible to modify the transmission power according to my needs, for example to 3 or 4 dBm, using STM32CubeProgrammer or another software?



thanks

[STTwo-32]

Hello @ljm

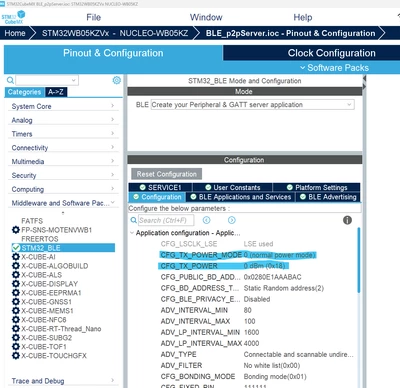

You can change the TX_Power according to your needs using the

tBleStatus aci_hal_set_tx_power_level(uint8_t En_High_Power, uint8_t PA_Level);

that you can find here.This function should be called on your code to set the TX power.

This can't be changed throw a SW like CubeProgrammer. It can be changed only throw code.

Best Regards.

STTwo-32

[ljm]

Hello

thank you for replying.

This site is inaccessible "here".

and to do the code with terminal or software can i use ?

thank you



[STTwo-32]

You need to use an IDE to create your code.

PS: link is updated.

Best Regards.

STTwo-32
