Target not responding at the End Node Configuration of P-NUCLEO-LRWAN2

[2001jolly]

Hello,

I am configuring Nucleo-L073RZ with I-NUCLEO-LRWAN-1 expansion board in STM-Cube-IDE as the End-Node with the AT-Master Example in the en-cube-lrwan library provided by ST.

(en.i-cube_lrwan->STM32CubeExpansion_LRWAN_V2.1.0->Projects->NUCLEO-L073RZ->Applications->LoRaWAN->LoRaWAN_AT_Master->STM32CubeIDE->I_NUCLEO_LRWAN1)

Problem

When I Debug the code into the board it is halted at the HAL_INIT() function.

Solutions I tried

1. There are no breakpoints on it and just below it there a function call for clock configuration and I have also checked it.

2. Performed full chip erase after performing booting.

3. Checked on debugger configuration as well. (Reset Behaviour-> Connect under Reset)

I am attaching the log file also.



[STTwo-32]

Hello @2001jolly

Could you add a screenshot of the project with all the files on the CubeIDE.

Best Regards.

STTwo-32

[2001jolly]

Hello,

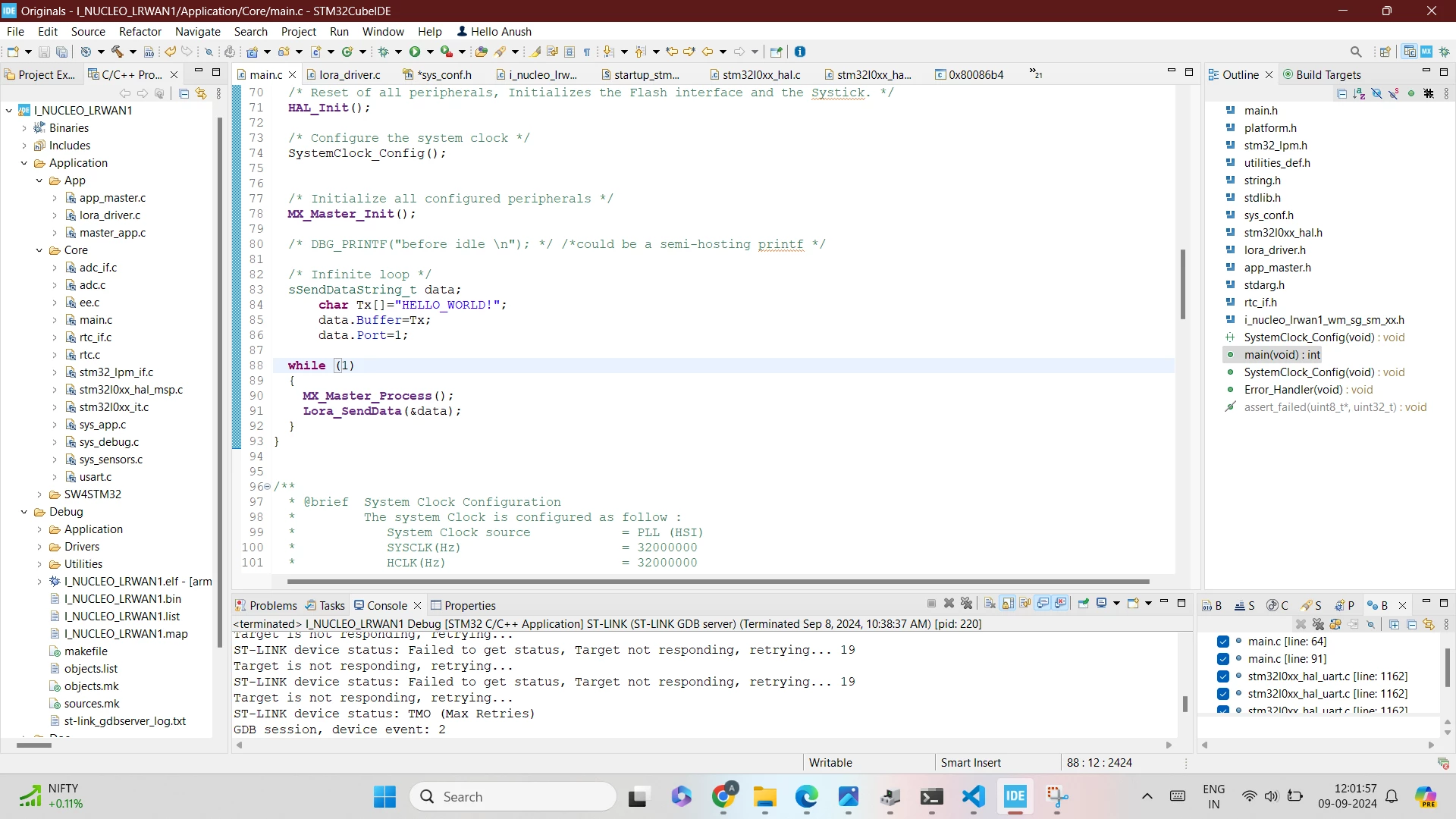

Ok I have added all the screenshots step by step

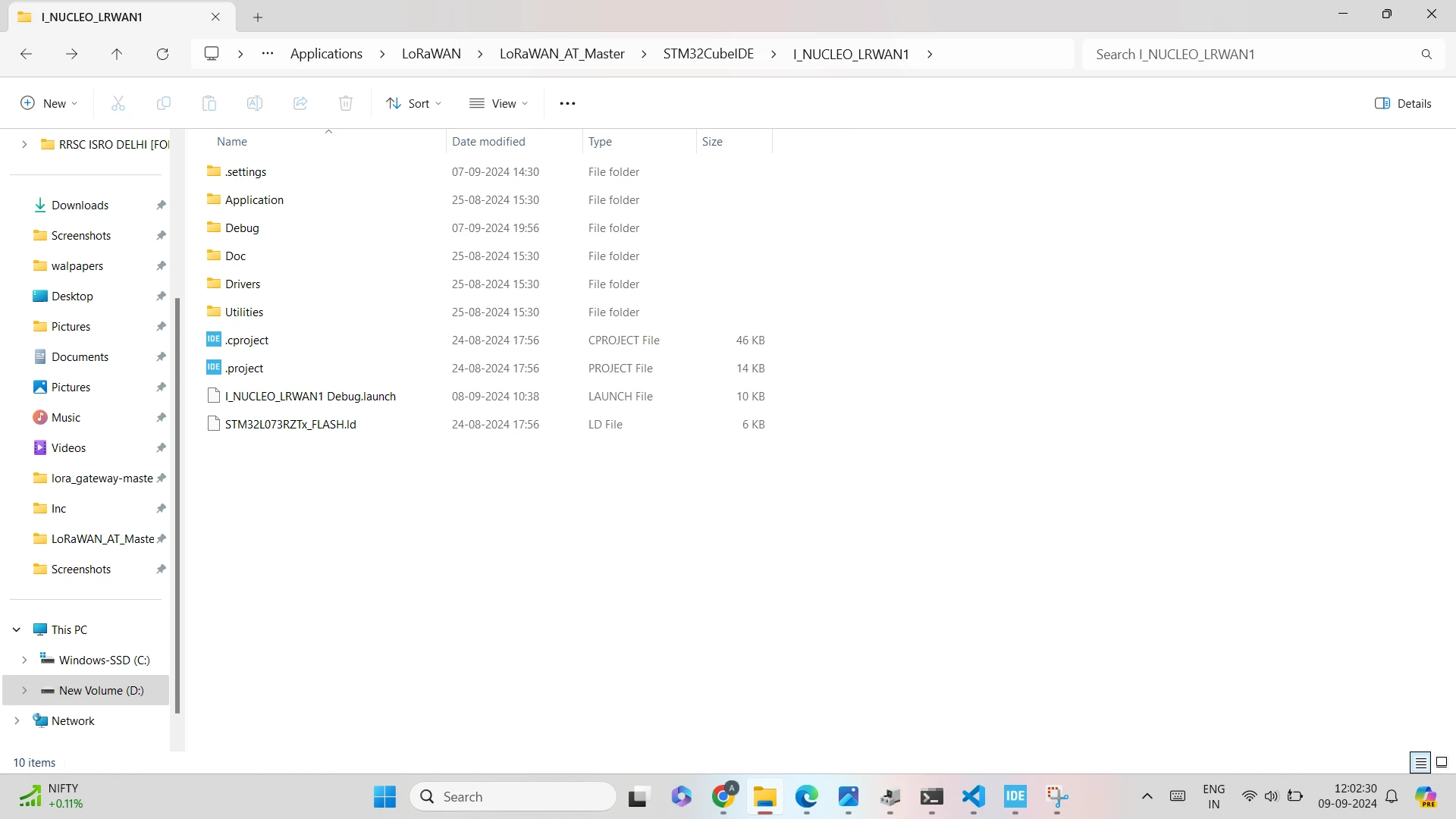

1. I-NUCLEO-LRWAN1 file.

2. Project Workspace-> main.c file, in the while loop I am calling Lora_SendData() function with the parameter as structure data containing buffer and the port.

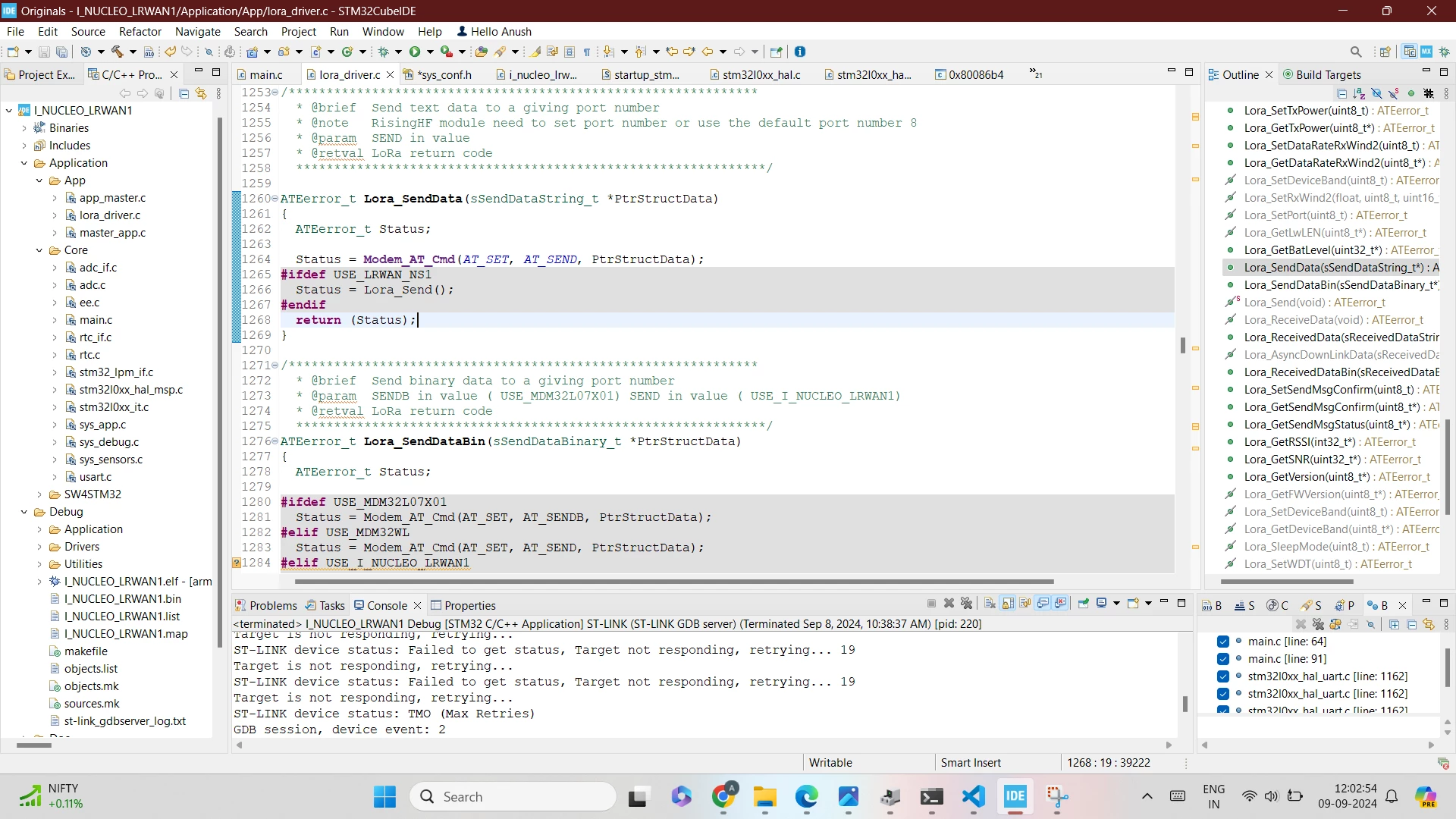

3. This function calls Modem_AT_Cmd() function that takes structure and AT command as the parameter value.

4. This calls AT_Cmd_format() function which makes the AT string and stores it in the AT command buffer.

5. The Modem_AT_Cmd() function calls at_cmd_send() function which again calls HAL_UART_Transmit() which finally transmit the data stored in the huart2 TDR register.

I have attached the screenshot sequentially in the order functions have been called.

[STTwo-32]

It seems to work fine on my side. Can you give more details about the problem that you are facing.

Best Regards.

STTwo-32

[srbhktyr]

I have faced similar issue on my stm32G491RE nucleo board. The reason was I have configured  pins used for  debugger (PA15 in my case). If this is the case for you just leave those pins as it is and it will work fine.

Regards.

[2001jolly]

Hello,

Thanks for the reply, I have not configured any of the pin it is by default done in the program.

Regards

[STTwo-32]

Can You try to restart your PC and perform the same test using another board.

Best Regards.

STTwo-32



[STTwo-32]

It may be a problem on the board or on the Shield that you are trying to use. Could you try another.

Best Regards.

STTwo-32
