Unable to get "STM32WB sniffer interface" on Wireshark for sniffer program

[SoumadeepDe]

I am trying to make sniffer for STM32WB BLE application work, (ref: https://wiki.st.com/stm32mcu/wiki/Connectivity:STM32_Sniffer_for_BLE_Setup_guide). I am stuck at step 4.1. I am unable to get "STM32WB sniffer interface" on Wireshark. I tried uninstalling and reinstalling all software, but no luck.



Thanks in advance for help!

[_Joe_]

Hi,

Just to confirm, have you properly programmed your board(s) (step 3)? Are they properly connected to the PC and the COM port recognized?

BR, Joé

[SoumadeepDe]

Hello Joé,

I looked into the device manager. I see that "STMicroelectronics Virtual COM Port (COM7)" shows

This device cannot start. (Code 10)

{Operation Failed}
The requested operation was unsuccessful.

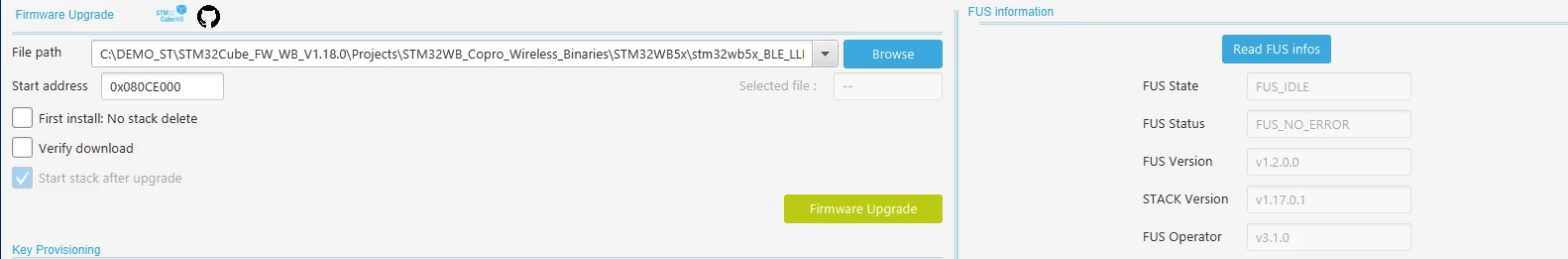

Is this the problem? I tried re-programming (both firmware and stack) the MCU and re-installing Wireshark, but no luck.

Please help!



Regards

Soumadeep De

[Lighting_Master]

Hi,

I ran into the same problem that the hardware platform is NUCLEO-WB55RG.I followed the https://wiki.stmicroelectronics.cn/stm32mcu/wiki/Connectivity:STM32_Sniffer_for_BLE_Setup_guide#Programming_the_board wiki step by step.The wireshark version is 4.4.2, based on windows11.

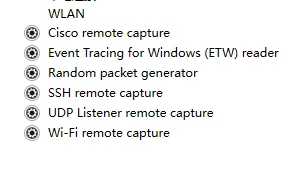

Sniffer interface do not appear.

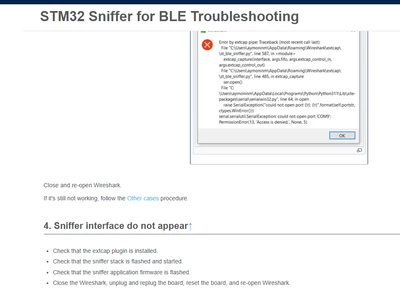

I saw a solution to this problem in the wiki and tried again, but the problem still existed.

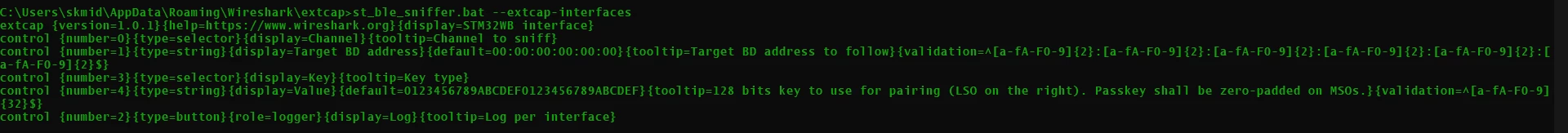

How do I know that the sniffer  protocol stack is started properly? There is no corresponding file/wiki to explain what happens when the sniffer firmware starts.



Please help!



Regards

Mr Wu
