Unable to start FUS. FUS version is 0.0.0.0 and FUS_STATE_ERR_UNKNOWN

[KKIM.6]

I'm trying to fix a P-Nucleo-WB55 board using CubeProgrammer.

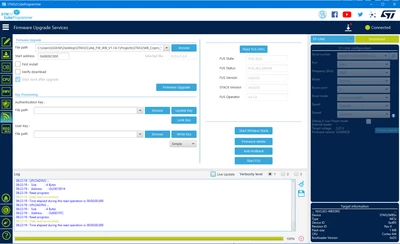

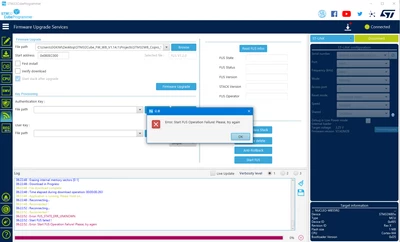

However, the board shows a 0.0.0.0 version of FUS and Stack and I cannot start FUS.

I don't know why there is no version because the FUS cannot be deleted forever in the FUS upgrade document.

So, How can I update FUS in this version?

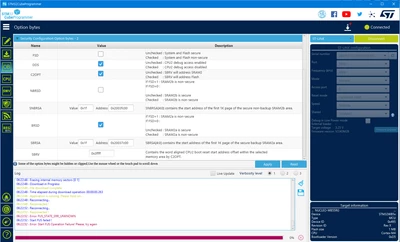

The SBRV option byte is 0x3ffff is it common?





[STTwo-32]

Hello @KKIM.6

According to the SBRV value, FUS is not running. I suggest you try to update your firmware Following this wiki and using the last version (included in the version 1.18.0 of the STM32CubeWB).

Best Regards.

STTwo-32

[KKIM.6]

Could you send the link again?



I'm trying to upgrade FUS following the "STM32WB Firmware Upgrade Service wiki" but there is no description when FUS does not exist.



[Remi QUINTIN]

The SBRV value is pointing on the safeboot which means something went badly wrong during the update.

I assume the SFSA value to be FFFF protecting the last sector.

Did you already program this board?

I would be nice to get the ESE and SFSA values.



Then one thing that may work to recover your board in a manufactory state is to write the value 0x00008000 at the address 0x5800040C. This should work if ESE option byte is checked.



[Yash_Agrawal]

Hello,

I encountered a similar issue where the FUS became unresponsive after sending an event signal. STM32CubeProgrammer now reports the FUS and wireless stack versions as v0.0.0.0.

I am unsure what caused this issue. Multiple recovery attempts, including updating the FUS firmware, did not work.

Were you able to fix the issue? How can I avoid this in the future? Any guidance would be appreciated.

Thanks!

[Lubos KOUDELKA]

Step by step guidance for restoring option bytes corruption as defined in AN5185, page 10.

• Connect MCU using Stlink USB and start STM32CubeProgrammer
• If there is problem to connect using STM32CubeProgrammer, add jumper to BOOT0 pin

1.set RDP AA (will remove the PCROP as well)

• Ensure PCROP and RDP is not active

2.set OB to boot in System Flash (nBoot0 = 0)

3.reboot

4.connect STM32CubeProgrammer with hotplug

5.start CPU2 using write 0x00008000 at 0x5800040C
