Setup as STM32Cube project fails

[DamianoF]

I'm encountering a persistent issue when setting up an STM32Cube project in VS Code. Even when reverting to a previously working commit or starting a fresh setup from scratch (using the "Setup as an STM32Cube project" button), the process fails.

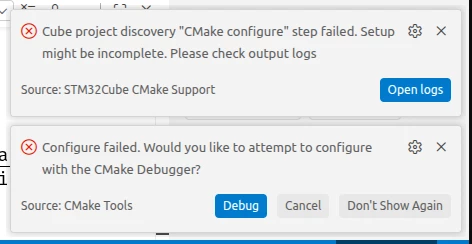

The following error message appears:

"Cube project discovery CMake configure step failed. Setup might be incomplete. Please check output logs"

I have tested this on two different machines running both Linux and Windows, but the result is the same. Here are the relevant logs:



2026-02-20 08:41:11.309 [Info] Adding cube-cmake path to environment: /home/user/.vscode/extensions/stmicroelectronics.stm32cube-ide-build-cmake-1.43.0/resources/cube-cmake/linux

2026-02-20 08:41:19.016 [Info] Running STM32Cube commands 'cube pack sync + cube pack install STMicroelectronics.stm32f4xx_dfp.1.1.0'

2026-02-20 08:41:19.665 [Error] /home/user/Downloads/project needs to be configured first

2026-02-20 08:41:22.979 [Info] Activating STM32Cube configurations for the code indexing feature...

2026-02-20 08:41:23.006 [Info] Configuring code indexing for '/home/user/Downloads/project'

2026-02-20 08:41:23.029 [Info] Cannot find project's build info yet



[Nawres GHARBI]

Hi @DamianoF

If you are reverting to a previous working commit ensure you do a clean build before discovering the project

If the project clean is not sufficient you can remove the .setting and .vscode from your project then relaunch the discovery.

[DamianoF]

Hello and thank you for the reply,

obviously I cleaned the build folder and removed the .settings and .vscode folders (which were not tracked with git)

[Julien D]

Hi @DamianoF,

Could you show us the errors from the CMake/Build output channel?

Also make sure that, once .vscode/settings.json is created during project setup, it well contains the configuration for cube-cmake tool.

And finally ninja, cmake and gnu-tools-for-stm32 should be part of .settings/bundles.store.json.

[DamianoF]

I did a mistake on my side and I forgot to add an import to my CMakelists.txt. I am sorry
