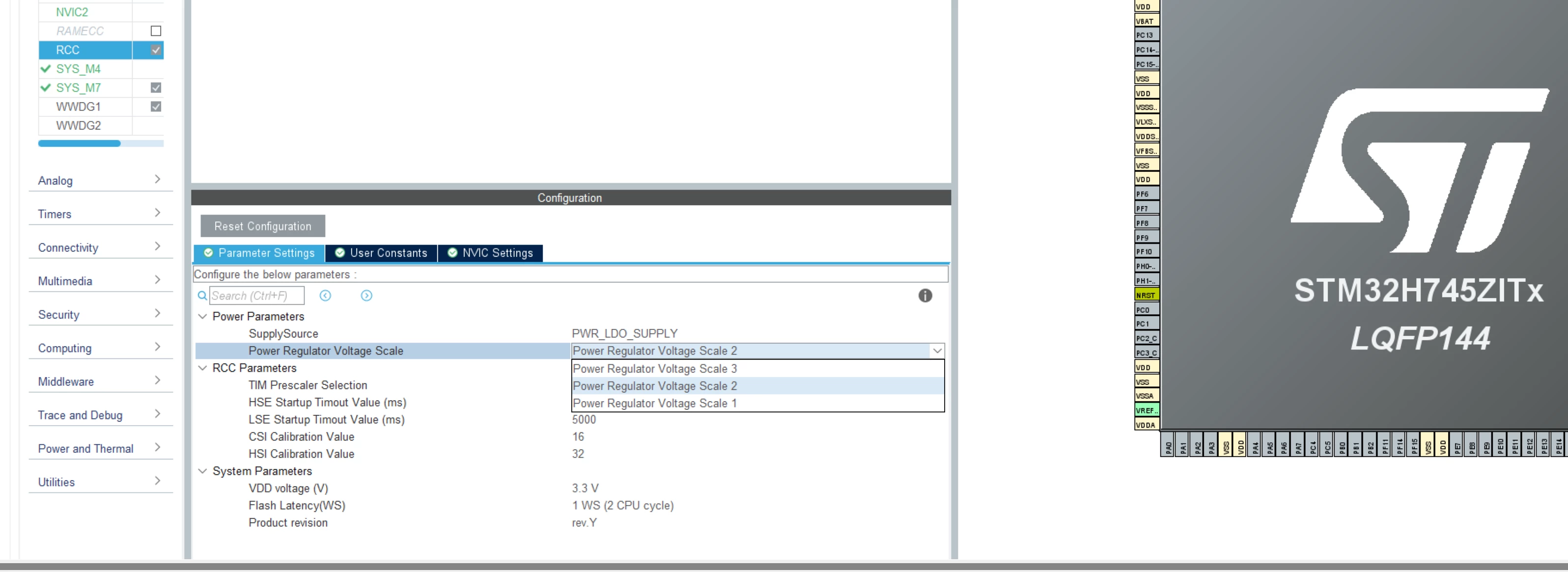

6.7.0. STM32H745 doesn't have "Power Regulator Voltage Scale 0" in the list

I selected LDO power supply

But frequency is still limited to 400MHz.

This topic has been closed for replies.

Best answer by Piranha

Set the "Product revision" to "rev.V" and read the AN5337.

Super User

try just for test: use smps supply, scale 0 should be possible then.

"If you feel a post has answered your question, please click ""Accept as Solution""."

Associate III

nope, I tried different regulators but 0 is never in the list

main thing is that according to specs 480MHz available only with LDO but no matter what I do, I couldn’t set frequency to 480.

PiranhaBest answer

Principal III

Set the "Product revision" to "rev.V" and read the AN5337.

Associate III

REALLY APPRECIATE YOUR HELP!!!

THAT SOLVED MY ISSUE!!!

I am on NUCLEO board, playing with collecting data, lifetime is of no concern

though ST should add this to error message when I am unable to set frequency to 480 MHz

Technical Moderator

Hello @Pavel Krupets,

This issue is already reported in this post.

Sorry for this inconvenience.

Internal ticket number: 140578 (This is an internal tracking number and is not accessible or usable by customers).

Thank you.

Kaouthar

To give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.

Technical Moderator

Hello @Pavel Krupets,

This issue has been solved in the STM32CubeMX6.8.0.

Thank you for your contribution.

Kaouthar
