Bug : The STM32H563XX_FLASH.ld file is not generated in STM32CubeMX v6.15.0

[Fumihiko]

Hi,

I am using the following environment:

• OS: Ubuntu 20.04 LTS

• STM32CubeMX: 6.15.0

• Visual Studio Code: 1.103.2

  • STM32Cube for Visual Studio Code : 3.5.1

• Board: NUCLEO-H563ZI



I found a bug where the STM32H563XX_FLASH.ld file is not generated after generating code.

This bug can be reproduced by following the steps below:

1. Create any cubemx project for STM32H563xx.
2. Set "The Toolchain / IDE" to CMake.
3. Click "Generate Code" .
4. After generating code, the files "STM32H563xx_FLASH.ld" and "STM32H563xx_RAM.ld" are generated.

However, the CMake build environment requires only STM32H563XX_FLASH.ld. As a result, the CMake build fails and reports the error :

"my_project/STM32H563XX_FLASH.ld: No such file or directory"



On the other hand, I found that the "STM32H563XX_FLASH.ld" can be generated if "Apply Application Regions Settings to Linker Files: ON" is enabled in Memory Management Tool.

[Ghofrane GSOURI]

Hello @Fumihiko

I am checking this issue.I will get back to you asap.

THX

Ghofrane

[Ghofrane GSOURI]

Hello @Fumihiko

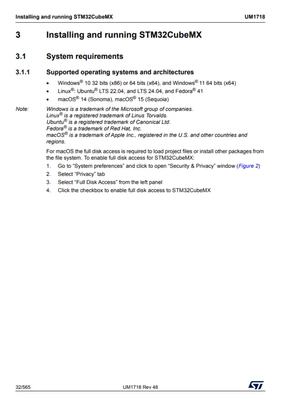

According to our documentation (UM1718, section 3.1.1), the officially supported Linux distributions are:

• Ubuntu LTS 22.04
• Ubuntu LTS 24.04
• Fedora 41

For best results, use a supported operating system such as Fedora 41 or Ubuntu LTS 22.04/24.04 in a virtual machine or container.

THX

Ghofrane

[Fumihiko]

Hi Ghofrane,



>For best results, use a supported operating system such as Fedora 41 or Ubuntu LTS 22.04/24.04 in a virtual machine or container.

Does this mean that the bug does not occur on Ubuntu 22.04 and later?



Best Regards,

Fumihiko
