Can't find STM32F030F6P6 in CubeMX

[quanhongwei]

Dear STM expert:

     Currently, Iam facing an issue:when using the stm32f030f6p6 chip, I cannot find this chip model when creating new projects in stm32cubeide and stm32cubeMX ,thus it making it impossible to new projects,what this?

hope a reply..thanks.

[quanhongwei]

addition: I can find stm32f030f4p4 chip in stm32cubeide and stm32cubeMX

[Andrew Neil]

Are you sure that part number actually exisits?

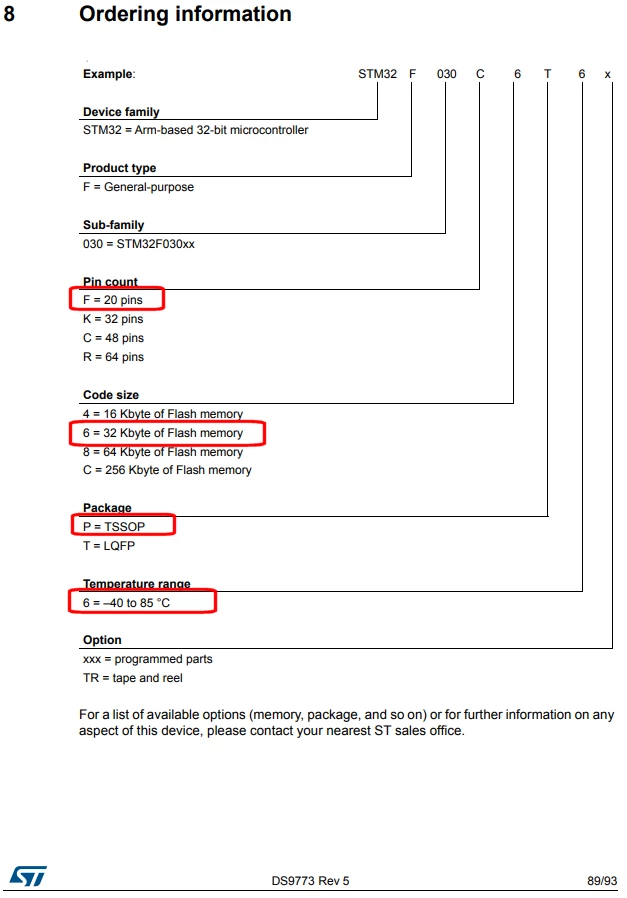

https://www.st.com/resource/en/datasheet/stm32f030f4.pdf#page=88



So STM32F030F6P6 would be in a TSSOP-20 package.

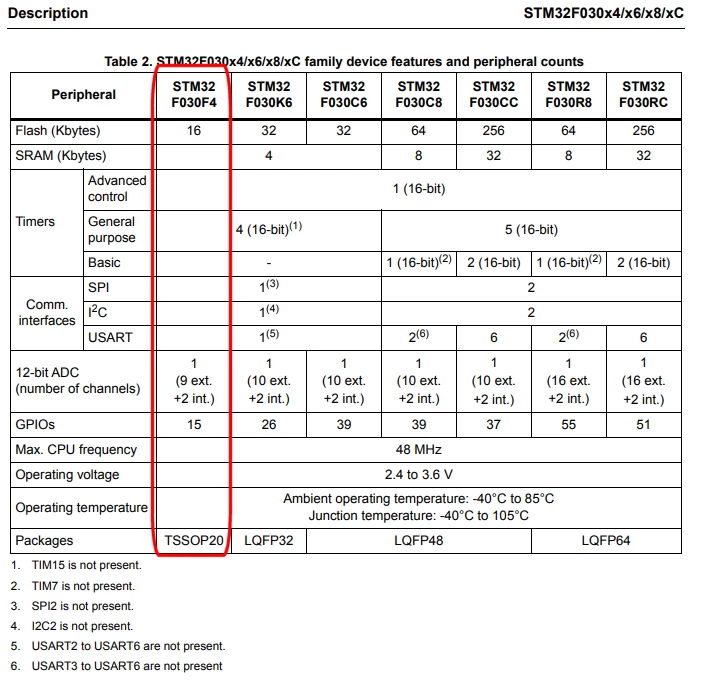

But the only option listed in TSSOP-20 is an STM32F030F4:





[quanhongwei]



HI,Andrew Neil:







   Thanks for your reply,Indeed, I have already purchased this chip，stm32f030f6p6.TSSOP20

[mƎALLEm]

Hello @quanhongwei

So please accept as solution le post that has answered your original question.

[Peter BENSCH]

The statement from @Andrew Neil is completely correct: even if you can piece together your preferred order number from the data sheet, that does not mean it is a deliverable device.

Specifically, there is currently no STM32F030F6P6. If you have a very large requirement, you are welcome to check with your local distributor whether this larger flash variant would be feasible in the TSSOP20.

Regards
/Peter



[Andrew Neil]

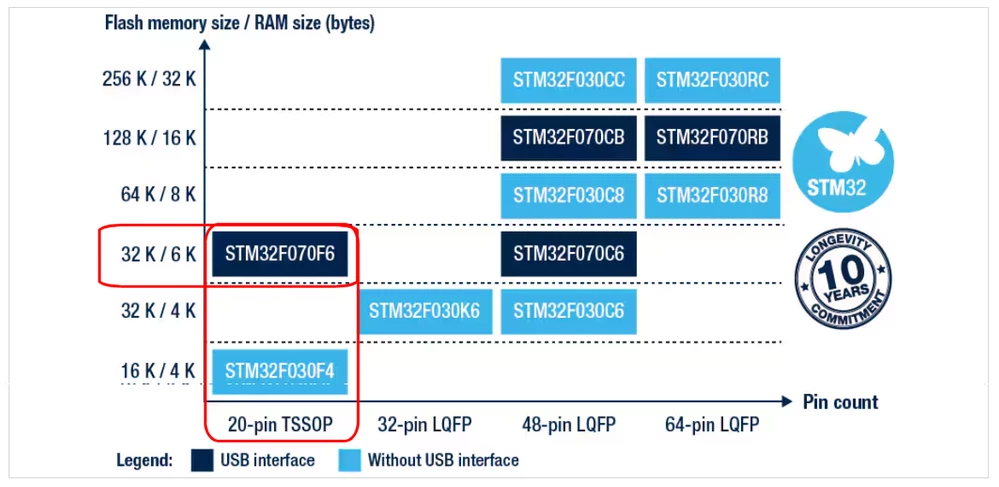

It looks like there is an STM32F070F6 in TSSOP-20:

https://www.st.com/en/microcontrollers-microprocessors/stm32f0x0-value-line.html



Have you tried the Product Selector?

https://www.st.com/en/microcontrollers-microprocessors/stm32f0x0-value-line/products.html

[zohaibhassan381]

This usually happens when the MCU package isn’t installed in CubeMX.

Try this:
Go to Help → Manage Embedded Software Packages → STM32F0 and check if it’s installed. If not, install/update it.

Also restart CubeMX after installation — sometimes the chip list doesn’t refresh instantly.

If it’s already installed, try updating CubeMX to the latest version.
