CUBEIDE Bug in RTC Generation

Hello,

In CubeIDE I try to generate RTC code which has decimal parameters. However in code generation I realized that it converted to hex value by itself.

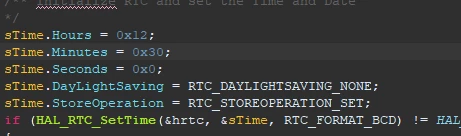

You can check screen shots in the attachment.

Technical Moderator

Hello @farukisiker

Thank you for posting!

Could you mention the name of the MCU where you encountered the issue?

KR,

Souhaib

To give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.

Associate III

Stm32H7 Series

Super User

This behavior is correct. 12 decimal expressed in BCD format is 0x12. If you change it to binary format, it will be 12.

"If you feel a post has answered your question, please click ""Accept as Solution""."

Associate III

You can check that video to ensure that there is a problem here.

BCD only shows that the number is between 0-9. It even does not accept hex value during configuration.
