CubeMX CAD models mixing LQFP144 and 208pinouts

[DixonDon]

Trying to export LQFP144 pinout to Altium CAD models with cubeMX.

But CubeMX is trying add pin #204 #202 #158, etc, on symbol for an L471 micro that doesn't even come in packages  bigger than 144 pins.  Altium chokes on this symbol, I imagine that's because the foot print only has 144pins.

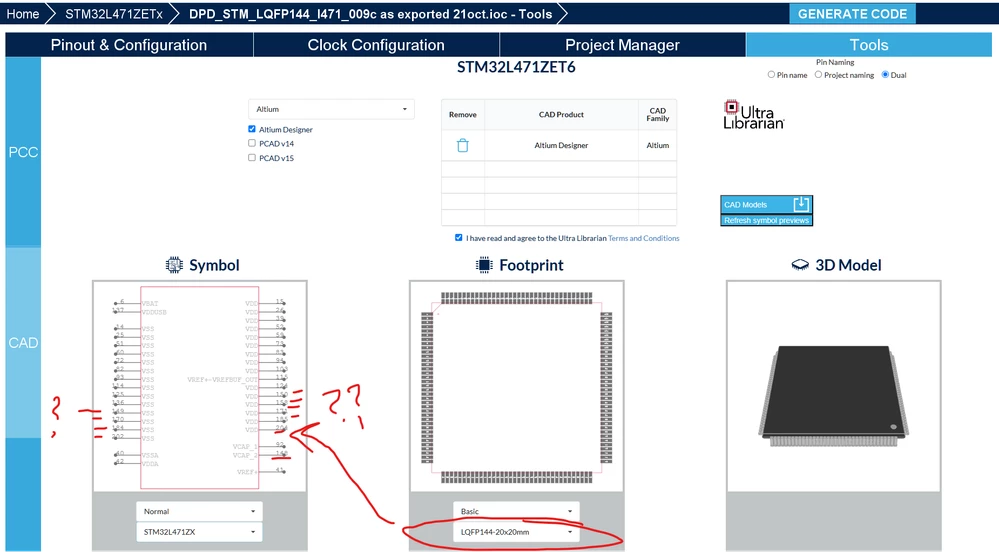

See screenshot below.  Will attach .ioc file if possible.



[Sarra.S]

Hello @DixonDon,

Thank you for spotting this!

This behavior will be investigated by the STM32cubeMX team (Internal ticket number: 194578), meanwhile, as a temporary workaround, you can manually edit the symbol in Altium Designer to remove the incorrect pins

[Sarra.S]

Hello @DixonDon,

This issue is fixed, please check new STM32CubeMX-6.14.0 published on st.com
