CubeMX cannot configure LevelX with FileSystem

  • March 1, 2025
  • 0 replies
  • 314 views

Hi,

I'm trying to configure LevelX using CubeMX.  Does any one know how to link the component driver to LevelX?


under file system interfaces,


under bsp,

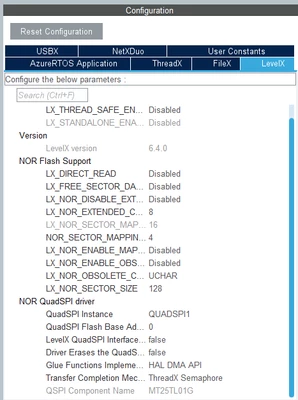

The QuadSPI is different from the one listed under bsp, but I included in the project so I can figure out how to write my version.  But I can't seem to figure out how I can define a new driver.  Under LevelX configuration:


It says the QSPI component name is MT25TL01G.  How do I change this so I can provide my own driver?
