CubeMX Memory Management and high-cycle capable Flash region.

[MMeie.3]

Hi

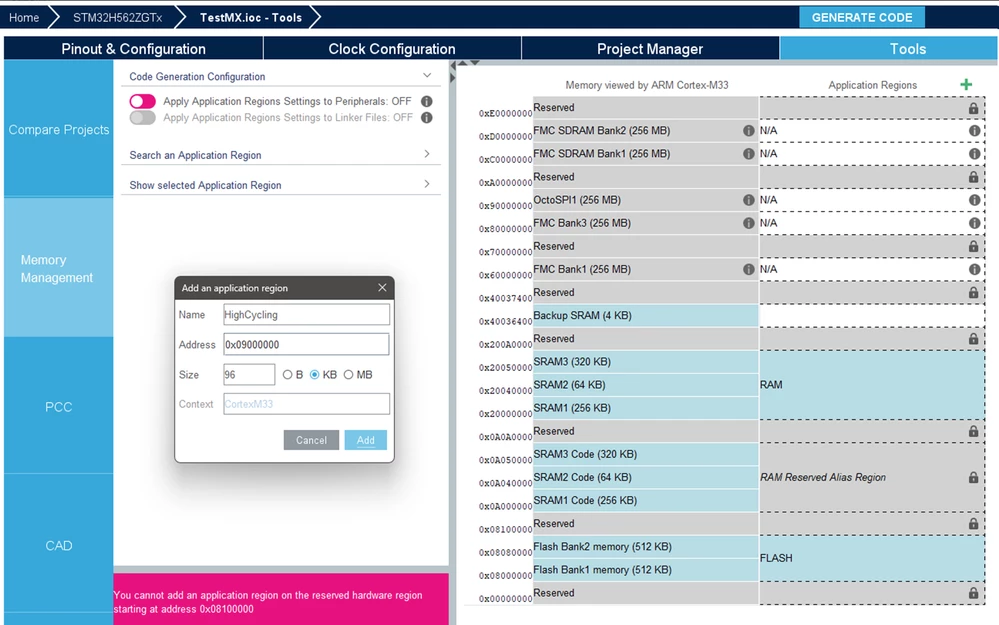

According to the reference manual the high-cycle capable Flash of a STM32H562 is mapped to the address 0x0900_0000 to 0x0901_7FFF. The Memory Management Tool of CubeMX does not allow me to generate a Region in this address range (see Error below). Is this correct or should CubeMX not allow the generation of a memory region in this range? The Flash Option Byte was configured for the use of the high-cycle Flash.

As a work around I can of course manually edit the linker script.

I use STM32CubeMX Version 6.14 with the Firmware Package V1.5.0 to generate a STM32CubeIDE project on Windows 11.





[Ghofrane GSOURI]

Hello @MMeie.3

First let me thank you posting.

I'm currently investigating this . I will get back to you asap.

THX

Ghofrane

[Ghofrane GSOURI]

Hello again @MMeie.3

Your contribution is much appreciated.

A change request has been raised to to the development team .

Internal ticket number :207325

I will keep you posted with updates.

Thx

Ghofrane

[MMeie.3]

@Ghofrane GSOURI I just tried the new STM32CubeMX 6.15., and at least in my current project the issue is fixed.

[Rudy_ini]

Hi

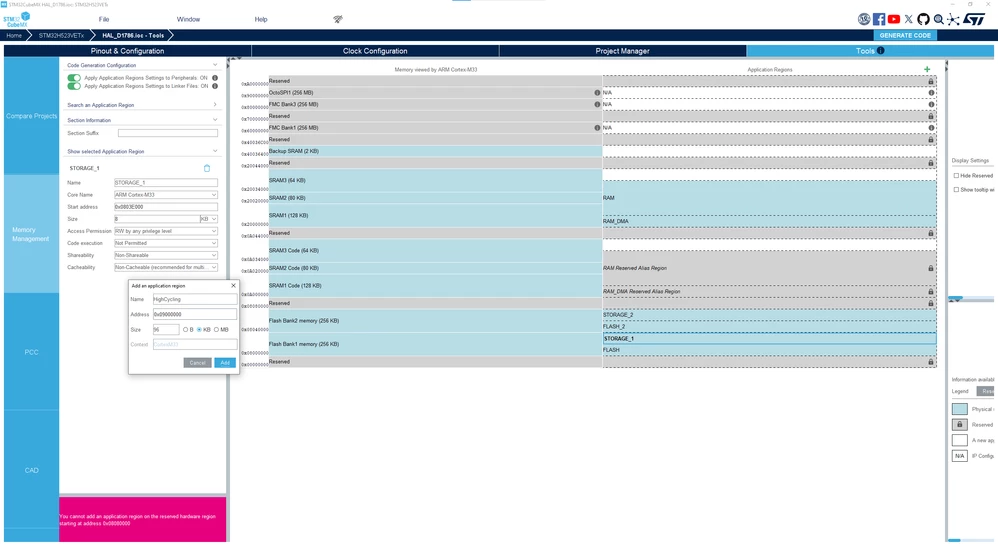

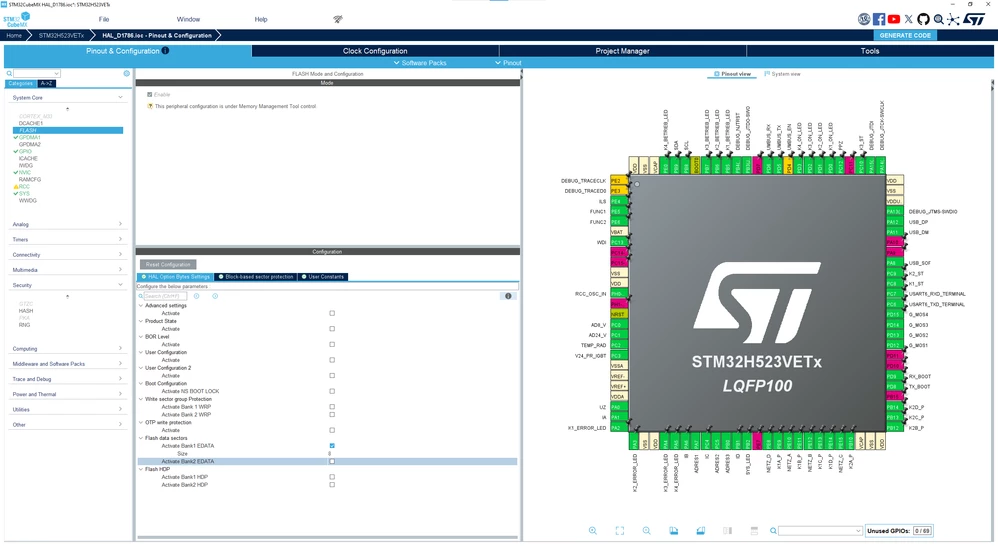

I've same problem with STM32H523VET:

- Windows 10,
- STM32CubeMX 6.17.0,

- STM32CubeH5 v 1.6.0



[Ghofrane GSOURI]

Hello @Rudy_ini

I'm currently checking this behavior. I will get back to you ASAP.

THX

Ghofrane
